        Toggle clamps horizontal with flat foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel.
Grip polyamide.Version:Carbonitrided and black oxidised.Note:Maintenance-free high quality link bushings. Sustainable constant use of force during opening and closing. Optimum stability through the conical, U-profile clamping arm.Accessory:05280 Protective caps
05880 Angle brackets
05899 Force sensor for toggle clamp
07110 Ball-end thrust screws
07117 Grippers, adjustable
07120 Grub screws with thrust point DIN 6332
07121 Grub screws with ball thrust point
07140 Thrust pads DIN 6311
07142 Thrust padsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05900 Toggle clamps horizontal with flat foot and adjustable clamping spindle

306 kB

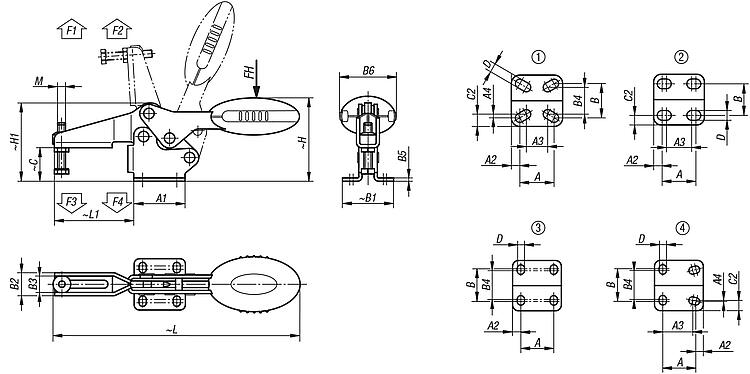

Drawings

Item selection/filter

Order No.	hole arrangement	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Order No. Angle bracket	Price
05900-004002	1	87°	69°	80	400	500	250	300	05880-02	on request
05900-005002	2	86°	67°	100	650	900	550	620	05880-02	on request
05900-006002	3	86°	67°	160	1350	1900	720	1200	05880-04	on request
05900-008002	3	86°	67°	200	2000	2800	830	1400	05880-04	on request
05900-010002	3	90°	71°	250	2200	4500	1200	2800	05880-06	on request
05900-012002	4	88°	68°	280	2400	5500	1000	2800	05880-06	on request

Order No.	M	A	A1	A2	A3	A4	B	B1	B2	B3	B4	B5	B6	C	C2	D	H	H1	L	L1	Price
05900-004002	M4x16	16	24	4	12,8	0,95	16	24	10,2	7,2	12,5	1,5	20	11,7	4,95	4,2	28,7	26,3	91,8	23,7	on request
05900-005002	M5x25	18	27	4,5	13,5	-	16,8	27,3	13,2	9,2	-	2	22,5	17,2	5,25	5,5	43,4	38,9	125,7	41,8	on request
05900-006002	M6x35	26	39	6,5	-	-	28	39	17,5	12,5	23	2,5	43,5	25,4	-	5,5	63,7	59,6	186,6	60,5	on request
05900-008002	M8x45	26	44	9	-	-	31	45	21	16	24	2,5	41,5	32,2	-	6,2	73,9	70,1	223,1	74,9	on request
05900-010002	M10x55	41,5	59	9	-	-	43	59	26	19	39	3,5	47	40	-	8,8	94,8	88	279,4	103,9	on request
05900-012002	M12x70	44	65	10	40	1	42	67	28	21	40	3,5	47	52,3	13,5	8,5	104,8	101,6	314,7	122	on request
