DescriptionMaterial:Stainless steel.
Grip polyamide.
Unlocking bracket TPE.Version:Bright.Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.Accessory:05280 Protective caps
05899 Force sensor for toggle clamps
07111 Ball-end thrust screws, stainless steel
07119 Thrust screws, stainless steel
07120 Grub screws with thrust point DIN 6332
07140 Thrust pads DIN 6311Special features: DownloadHere is all the information as a PDF datasheet:

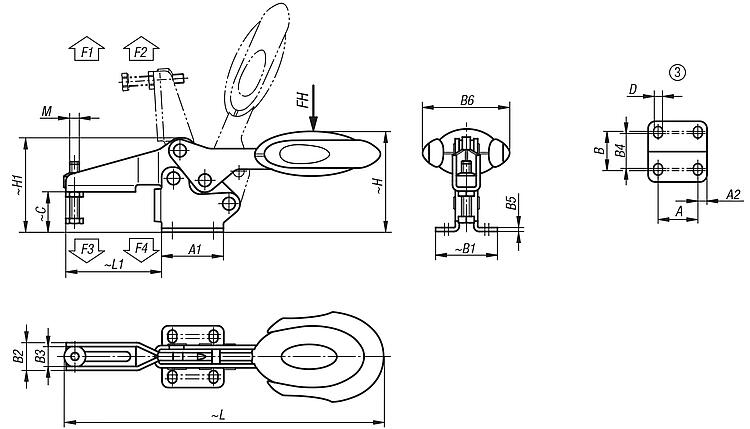

Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | hole
arrangement | Opening
angle of
holding arm | Opening
angle of
handle | Hand
force
FH N | Retaining
force
F1 N | Retaining
force
F2 N | Clamping
force
F3 N | Clamping
force
F4 N | CAD | Acc. | Price | Order |
|---|
| 05900-106102 | 3 | 86° | 67° | 160 | 1350 | 1900 | 720 | 1200 |  | | on request | | | 05900-108102 | 3 | 86° | 67° | 200 | 2000 | 2800 | 830 | 1400 | | | on request | |
Order No.
| M | A | A1 | A2 | B | B1 | B2 | B3 | B4 | B5 | B6 | C | D | H | H1 | L | L1 | CAD | Acc. | Price | Order |
|---|
| 05900-106102 | M6x35 | 26 | 39 | 6,5 | 28 | 39 | 17,5 | 12,5 | 23 | 2,5 | 53,4 | 25,4 | 5,5 | 63,7 | 59,6 | 193,3 | 60,5 | | | on request | | | 05900-108102 | M8x45 | 26 | 44 | 9 | 31 | 45 | 21 | 16 | 24 | 2,5 | 51,1 | 32,2 | 6,2 | 73,9 | 70,1 | 230,4 | 74,9 | | | on request | |
