Toggle clamps horizontal with safety interlock with straight foot and adjustable clamping spindle, stainless steel
05904

Toggle clamps horizontal with safety interlock with straight...

go back

Item description/product images

DescriptionMaterial:Stainless steel.
Grip polyamide.
Unlocking bracket TPE.
Version:Bright.Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.Accessory:05280 Protective caps
05899 Force sensor for toggle clamps
07111 Ball-end thrust screws, stainless steel
07119 Thrust screws, stainless steel
07120 Grub screws with thrust point DIN 6332
07140 Thrust pads DIN 6311
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 05904 Toggle clamps horizontal with safety interlock with straight foot and adjustable clamping spindle, stainless steel 167 kB
 Technical Information Quick clamping - reliable fixing 863 kB

Drawings

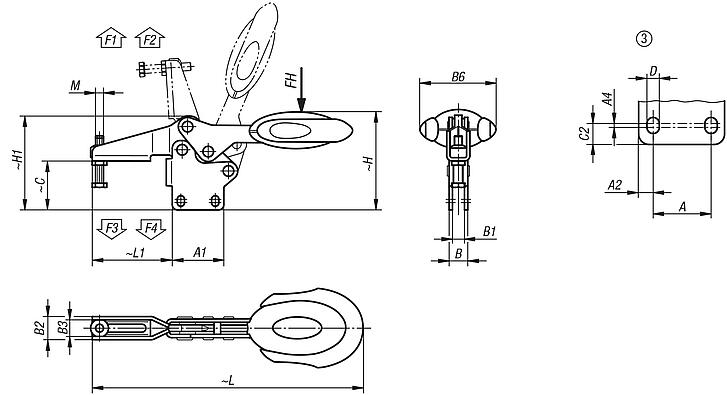

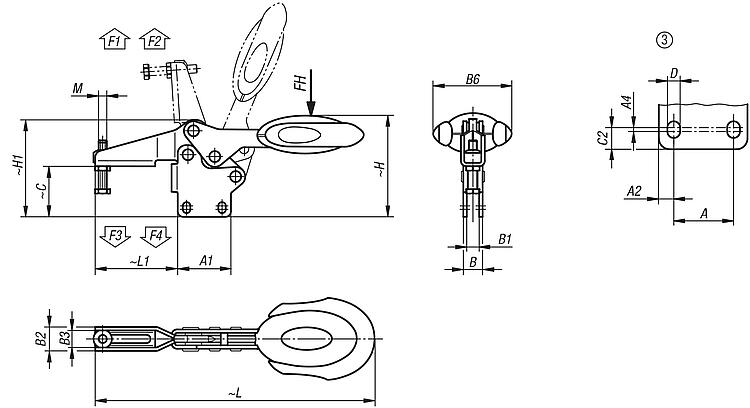

Toggle clamps horizontal with safety interlock with straight foot and adjustable clamping spindle, stainless steel

Item selection/filter

Order No.hole
arrangement
Opening
angle of
holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
05904-106102386°67°160135019007201200 on request
05904-108102386°67°200200028008301400 on request
Order No.

MAA1A2A4BB1B2B3B6CC2DHH1LL1CADAcc.PriceOrder
05904-106102M6x3526396,52,514,19,117,512,553,436,985,575,271193,360,5 on request
05904-108102M8x45264493,514,19,1211651,146,510,56,288,284,3230,474,9 on request
