        Toggle clamps horizontal with safety interlock with straight foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel.
Grip polyamide.
Unlocking bracket TPE.Version:Carbonitrided and black oxidised.Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.Accessory:05280 Protective caps
07110 Ball-end thrust screws
07117 Grippers, adjustable
07120 Grub screws with thrust point DIN 6332
07121 Grub screws with ball thrust point
07140 Thrust pads DIN 6311
07142 Thrust padsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05904 Toggle clamps horizontal with safety interlock with straight foot and adjustable clamping spindle

128 kB

Technical Information Quick clamping - reliable fixing

863 kB

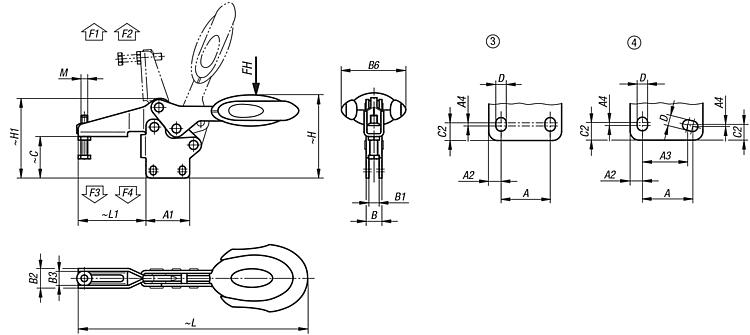

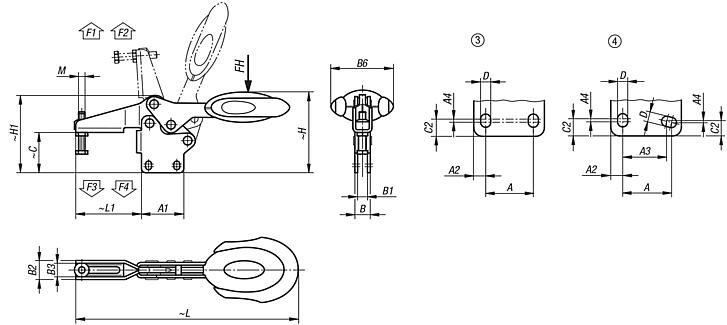

Drawings

Item selection/filter

Order No.	hole arrangement	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
05904-006102	3	86°	67°	160	1350	1900	720	1200	on request
05904-008102	3	86°	67°	200	2000	2800	830	1400	on request
05904-010102	3	90°	71°	250	2200	4500	1200	2800	on request
05904-012102	4	88°	68°	280	2400	5500	1000	2800	on request

Order No.	M	A	A1	A2	A3	A4	B	B1	B2	B3	B6	C	C2	D	H	H1	L	L1	Price
05904-006102	M6x35	26	39	6,5	-	2,5	14,1	9,1	17,5	12,5	53,4	36,9	8	5,5	75,2	71	193,3	60,5	on request
05904-008102	M8x45	26	44	9	-	3,5	14,1	9,1	21	16	51,1	46,5	10,5	6,2	88,2	84,3	230,4	74,9	on request
05904-010102	M10x55	41,5	59	9	-	2	16,2	9,2	26	19	56,5	59,6	10	8,8	114,3	107,5	286	103,9	on request
05904-012102	M12x70	44	65	11	40	1	16,2	9,2	28	21	56,5	75,9	13,5	8,5	128,4	125,2	321,3	122	on request
