        Toggle clamps vertical with safety interlock with flat foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel.
Grip polyamide.
Unlocking bracket TPE.Version:Carbonitrided and black oxidised.Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.Accessory:05280 Protective caps
05880 Angle brackets
05899 Force sensor for toggle clamp
07110 Ball-end thrust screws
07117 Grippers, adjustable
07120 Grub screws with thrust point DIN 6332
07121 Grub screws with ball thrust point
07140 Thrust pads DIN 6311

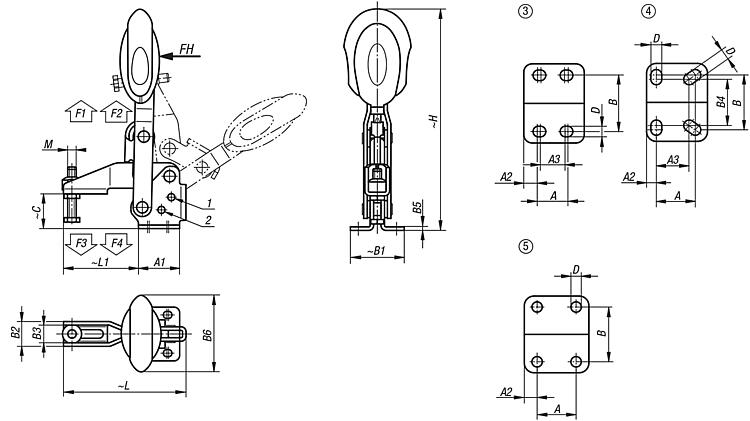

07142 Thrust padsDrawing reference:

1) stop pin position 1
2) stop pin position 2

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05908 Toggle clamps vertical with safety interlock with flat foot and adjustable clamping spindle

244 kB

Technical Information Quick clamping - reliable fixing

863 kB

Drawings

Item selection/filter

Order No.	Opening angle holding arm position 1	Opening angle holding arm position 2	Opening angle holding arm stop pin removed	Opening angle handle position 1	Opening angle handle position 2	Opening angle handle stop pin removed	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
05908-006102	56°	83°	152°	46°	56°	83°	160	1350	1650	920	1050	on request
05908-008102	13°	93°	158°	26°	61°	86°	190	2000	2800	940	1350	on request
05908-010102	6°	97°	176°	19°	59°	91°	250	2500	4500	1500	2800	on request
05908-012102	11°	88°	164°	24°	60°	91°	280	3000	5500	1400	2800	on request

Order No.	hole arrangement	M	A	A1	A2	A3	B	B1	B2	B3	B4	B5	B6	C	D	H	L	L1	Order No. Angle bracket	Price
05908-006102	3	M6x35	14	29	7	12	27	38	17,5	12,5	-	2,5	53,4	24,9	5,5	163	86,5	53	05880-02	on request
05908-008102	3	M8x45	21	39	9	19	32	45	20,6	15,6	-	2,5	51,1	32,7	6,8	191,4	107	62	05880-04	on request
05908-010102	4	M10x55	32	50	8	27	45	64	25,5	18,5	38	3,5	56,5	38,7	9	230,5	153	95	05880-06	on request
05908-012102	5	M12x70	32	53	10,5	-	45	63	28	21	-	3,5	56,5	46,7	8,8	249,1	173,5	113,5	05880-06	on request
