        Toggle clamps vertical with safety interlock with straight foot and adjustable clamping spindle, stainless steel

Item description/product images

DescriptionMaterial:Stainless steel.
Grip polyamide.
Unlocking bracket TPE.Version:Bright.Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.Accessory:05280 Protective caps
05899 Force sensor for toggle clamps
07111 Ball-end thrust screws, stainless steel
07119 Thrust screws, stainless steel
07120 Grub screws with thrust point DIN 6332

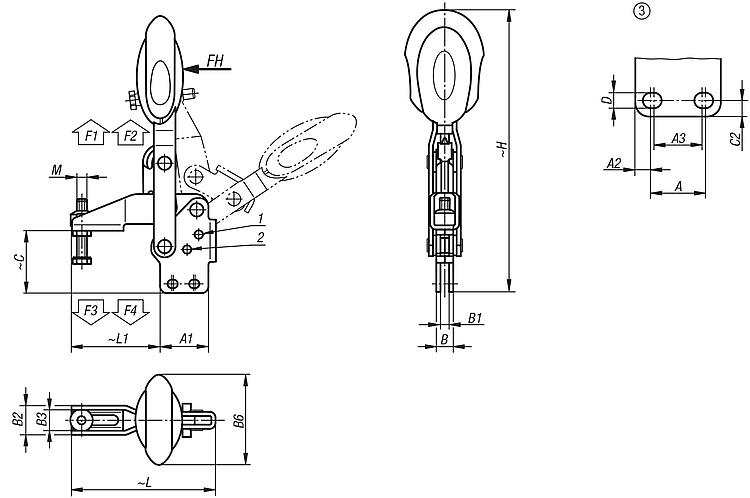

07140 Thrust pads DIN 6311Drawing reference:

1) stop pin position 1
2) stop pin position 2

Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05912 Toggle clamps vertical with safety interlock with straight foot and adjustable clamping spindle, stainless steel

Technical Information Quick clamping - reliable fixing

Drawings

Toggle clamps vertical with safety interlock with straight foot and adjustable clamping spindle, stainless steel

Item selection/filter

Order No.	Opening angle holding arm position 1	Opening angle holding arm position 2	Opening angle holding arm stop pin removed	Opening angle handle position 1	Opening angle handle position 2	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	CAD	Acc.	Price	Order
05912-106102	56°	83°	141°	46°	56°	160	1350	1650	920	1050			on request
05912-108102	13°	93°	158°	26°	61°	190	2000	2800	940	1350			on request

Order No.	hole arrangement	M	A	A1	A2	A3	B	B1	B2	B3	B6	C	C2	D	H	L	L1	CAD	Acc.	Price	Order
05912-106102	3	M6x35	14	29	7	12	10,2	5,2	17,5	12,5	53,4	37,6	5,5	5,5	175,7	86,5	53			on request
05912-108102	3	M8x45	21	39	9	19	10,2	5,2	20,6	15,6	51,1	49	6,5	6,8	207,6	107	62			on request
