05912Toggle clamps vertical with straight foot and adjustable... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.
Grip polyamide.Version:Carbonitrided and black oxidised.Note:Maintenance-free high quality link bushings. Sustainable constant use of force during opening and closing. Optimum stability through the conical, U-profile clamping arm.Accessory:05280 Protective caps
07110 Ball-end thrust screws
07117 Grippers, adjustable
07120 Grub screws with thrust point DIN 6332
07121 Grub screws with ball thrust point
07140 Thrust pads DIN 6311

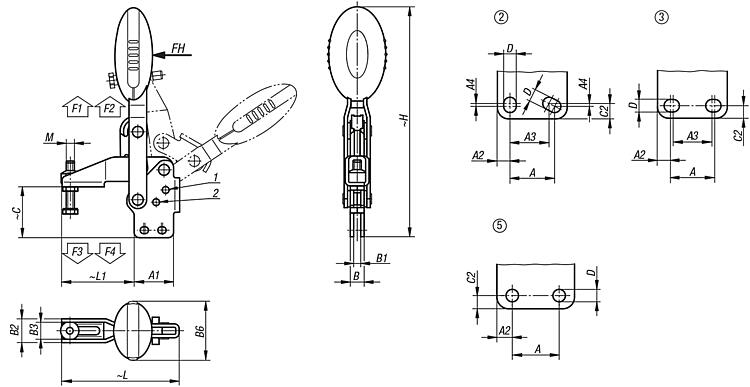

07142 Thrust padsDrawing reference:1) stop pin position 1
2) stop pin position 2 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Opening angle
holding arm
position 1 | Opening angle
holding arm
position 2 | Opening angle
holding arm
stop pin removed | Opening angle
handle
position 1 | Opening angle
handle
position 2 | Hand
force
FH N | Retaining
force
F1 N | Retaining
force
F2 N | Clamping
force
F3 N | Clamping
force
F4 N | CAD | Acc. | Price | Order |
|---|
| 05912-005002 | 100° | - | 129° | 64° | - | 100 | 750 | 1050 | 620 | 750 |  |  | on request | | | 05912-006002 | 56° | 83° | 141° | 46° | 56° | 160 | 1350 | 1650 | 920 | 1050 | | | on request | | | 05912-008002 | 13° | 93° | 158° | 26° | 61° | 190 | 2000 | 2800 | 940 | 1350 | | | on request | | | 05912-010002 | 6° | 97° | 176° | 19° | 59° | 250 | 2500 | 4500 | 1500 | 2800 | | | on request | | | 05912-012002 | 11° | 88° | 164° | 24° | 60° | 280 | 3000 | 5500 | 1400 | 2800 | | | on request | |
| Order No. | hole
arrangement | M | A | A1 | A2 | A3 | A4 | B | B1 | B2 | B3 | B6 | C | C2 | D
| H | L | L1 | CAD | Acc. | Price | Order |
|---|
| 05912-005002 | 2 | M5x25 | 16 | 25 | 4,5 | 14 | 1 | 8,1 | 4,1 | 13,2 | 9,2 | 22,5 | 29,8 | 5,5 | 4,5 | 119,2 | 65,6 | 35 | | | on request | | | 05912-006002 | 3 | M6x35 | 14 | 29 | 7 | 12 | - | 10,2 | 5,2 | 17,5 | 12,5 | 43,5 | 37,6 | 5,5 | 5,5 | 169 | 86,5 | 53 | | | on request | | | 05912-008002 | 3 | M8x45 | 21 | 39 | 9 | 19 | - | 10,2 | 5,2 | 20,6 | 15,6 | 41,5 | 49 | 6,5 | 6,8 | 200,4 | 107 | 62 | | | on request | | | 05912-010002 | 2 | M10x55 | 32 | 50 | 8 | 27 | 3,5 | 14,1 | 7,1 | 25,5 | 18,5 | 47 | 62,3 | 13 | 9 | 247,4 | 153 | 95 | | | on request | | | 05912-012002 | 5 | M12x70 | 32 | 53 | 10,5 | - | - | 14,1 | 7,1 | 28 | 21 | 47 | 69,8 | 9 | 8,8 | 265,5 | 173,5 | 113,5 | | | on request | |
