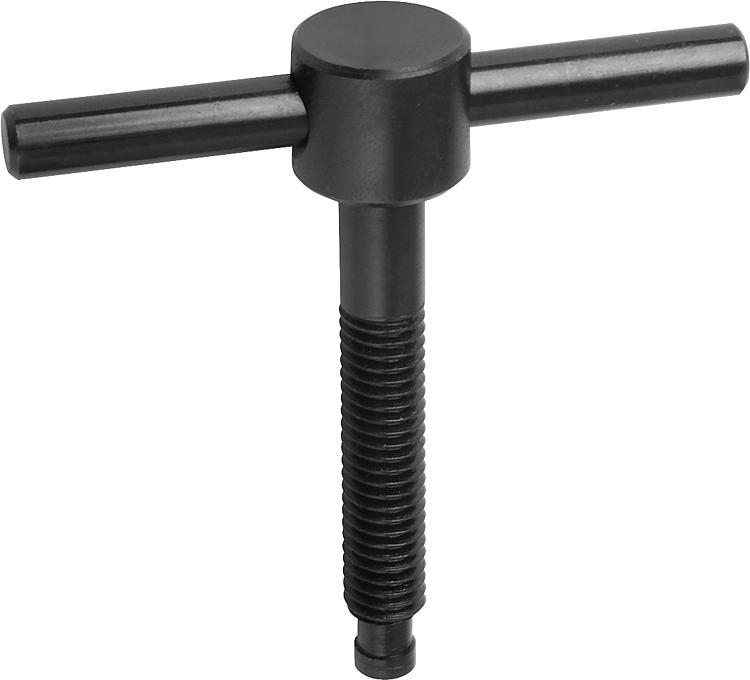

Tommy bar with fixed T-bar, DIN 6304

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidised. Thrust pin hardened.Note:For fixed spindles, the spindle is press fitted.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Version 1	D1	D2	D3	D4	L1	L2	L3	L5	Z2	Price
06150-106X40	fixed t-bar	M6	12	5	4,5	40	10	50	30	6	on request
06150-106X50	fixed t-bar	M6	12	5	4,5	50	10	50	40	6	on request
06150-108X50	fixed t-bar	M8	14	6	6	50	12	60	35	7,5	on request
06150-108X60	fixed t-bar	M8	14	6	6	60	12	60	45	7,5	on request
06150-110X60	fixed t-bar	M10	18	8	8	60	14	80	40	9	on request
06150-110X70	fixed t-bar	M10	18	8	8	70	14	80	50	9	on request
06150-112X70	fixed t-bar	M12	20	10	8	70	18	100	50	10	on request
06150-112X80	fixed t-bar	M12	20	10	8	80	18	100	60	10	on request
06150-116X75	fixed t-bar	M16	24	12	12	75	20	120	55	12	on request
06150-116X90	fixed t-bar	M16	24	12	12	90	20	120	70	12	on request
06150-116X110	fixed t-bar	M16	24	12	12	110	20	120	90	12	on request
06150-120X75	fixed t-bar	M20	30	16	15,5	75	28	140	55	14	on request
06150-120X90	fixed t-bar	M20	30	16	15,5	90	28	140	70	14	on request
06150-120X110	fixed t-bar	M20	30	16	15,5	110	28	140	90	14	on request
