        Multiple connectors

Item description/product images

DescriptionMaterial:Wing grip:
grip black grey thermoplastic.
Screw steel 5.8.
Body:
high-strength aluminium.Version:Steel parts trivalent blue-passivated.

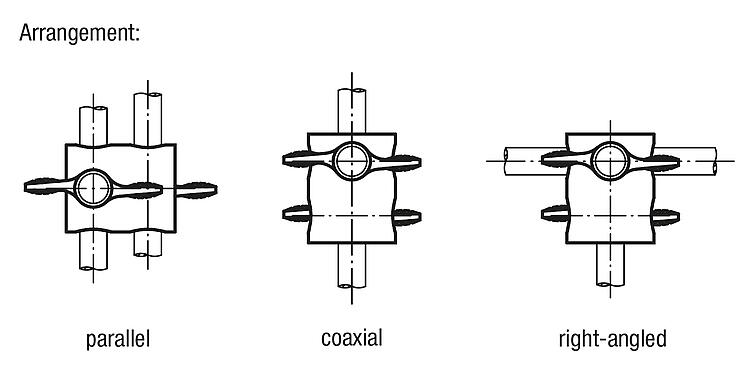

Aluminium nickel silver anodised.Note:Multiple connectors are used to extend round cross sections (bars, tubes, etc.) in a coaxial or parallel arrangement.
By a parallel arrangement, a strengthening or stiffening of the construction can be achieved.
The bore system in the body also allows for the production of right-angled connections.Drawing reference:

1) wing grip

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06622 Multiple connectors

216 kB

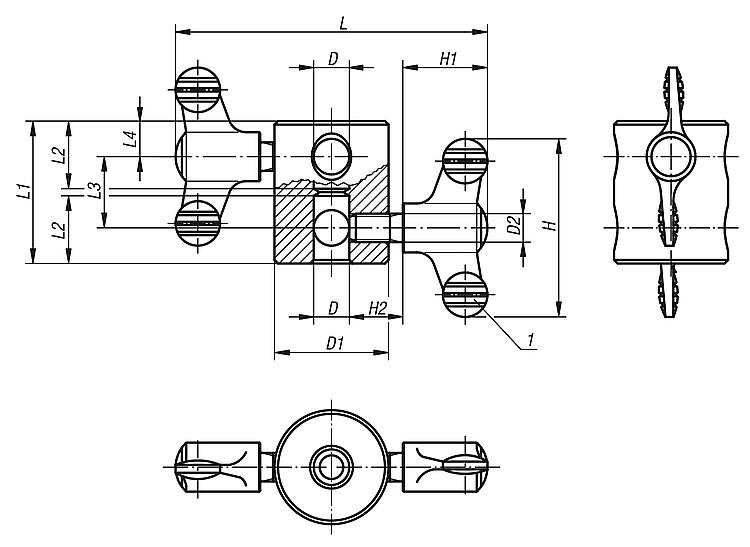

Drawings

Item selection/filter

	8 10 12 16	28 32 36 45	M8 M10	50 75	24 35,6	15 20	86 88 90 127,2	36 40 44 56	17 19 21 27	20 24	8 10 12 16				Reset
Order No.	D	D1	D2	H	H1	H2	L	L1	L2	L3	L4	CAD	Acc.	Price	Order
06622-01	8	28	M8	50	24	15	86	36	17	20	8			on request
06622-02	10	32	M8	50	24	15	88	40	19	20	10			on request
06622-03	12	36	M8	50	24	15	90	44	21	20	12			on request
06622-04	16	45	M10	75	35,6	20	127,2	56	27	24	16			on request
