Knurled nuts, steel and stainless steel DIN 6303 Form A, without pinhole
 06010_A

Knurled nuts, steel and stainless steel DIN 6303 Form A, without...

 go back

Item description/product images
DescriptionMaterial:

Steel.
Stainless steel 1.4305.

Version:Steel, black oxidised.
Stainless steel, bright.Drawing reference:
Form A: without pin hole
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06010_A Knurled nuts, steel and stainless steel DIN 6303 Form A, without pinhole 171 kB

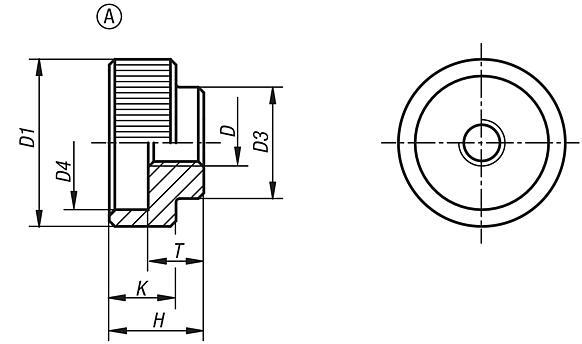

Drawings

Knurled nuts, steel and stainless steel DIN 6303 Form A, without pinhole

Item selection/filter
Order No.FormMain
material		DD1D3D4HKTCADAcc.PriceOrder
06010-105AsteelM52014151287 on request
06010-106AsteelM624161814108 on request
06010-108AsteelM8302024171210 on request
06010-110AsteelM10362830201412 on request
06010-112AsteelM12403234241614 on request
06010-1052Astainless steelM52014151287 on request
06010-1062Astainless steelM624161814108 on request
06010-1082Astainless steelM8302024171210 on request
06010-1102Astainless steelM10362830201412 on request
06010-1122Astainless steelM12403234241614 on request
