        Knurled knobs for screws with hex head

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoplastic.Version:Black or orange.Note for ordering:06131-00040 (knurled knob colour black)
Colour code:
0=black
1=orange Note:Suitable screws ISO 4014.

Δ add the desired colour code hereSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06131 Knurled knobs for screws with hex head

177 kB

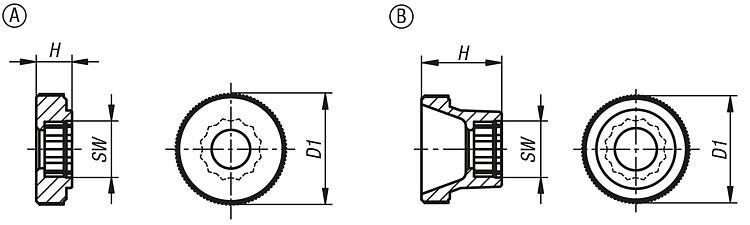

Drawings (total overview)

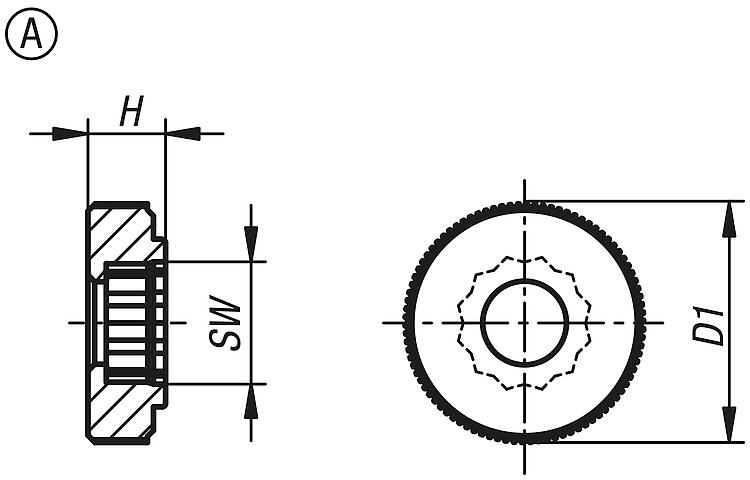

Knurled knobs for screws with hex head, Form A

More information

Drawings

Knurled knobs for screws with hex head, Form A

Item selection/filter

Order No.	Form	Main colour	for screws	D1	H	SW	Price
06131-00040	A	black	M4	17	5,5	7	on request
06131-00050	A	black	M5	20	6,5	8	on request
06131-00060	A	black	M6	25	8	10	on request
06131-00080	A	black	M8	36	10	13	on request
06131-00100	A	black	M10	36	10	17	on request
06131-01040	A	orange	M4	17	5,5	7	on request
06131-01050	A	orange	M5	20	6,5	8	on request
06131-01060	A	orange	M6	25	8	10	on request
06131-01080	A	orange	M8	36	10	13	on request
06131-01100	A	orange	M10	36	10	17	on request

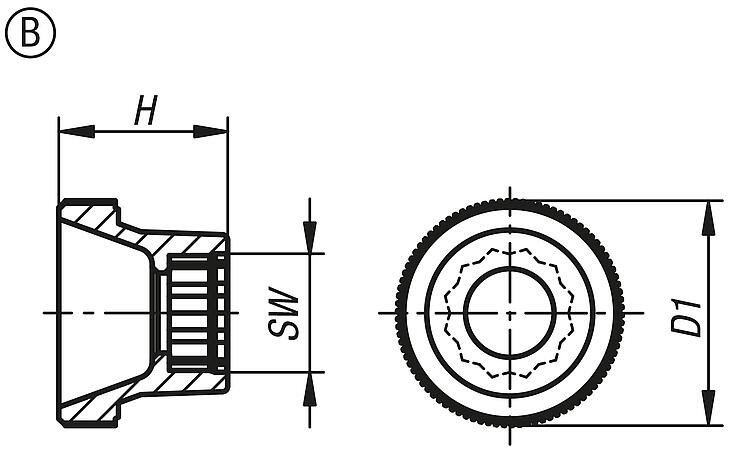

Knurled knobs for screws with hex head, Form B

More information

Drawings

Knurled knobs for screws with hex head, Form B

Item selection/filter

Order No.	Form	Main colour	for screws	D1	H	SW	Price
06131-10040	B	black	M4	17	11,5	7	on request
06131-10050	B	black	M5	20	15	8	on request
06131-10060	B	black	M6	25	18	10	on request
06131-10080	B	black	M8	36	23	13	on request
06131-10100	B	black	M10	36	23	17	on request
06131-11040	B	orange	M4	17	11,5	7	on request
06131-11050	B	orange	M5	20	15	8	on request
06131-11060	B	orange	M6	25	18	10	on request
06131-11080	B	orange	M8	36	23	13	on request
06131-11100	B	orange	M10	36	23	17	on request
