        Ball knobs smooth DIN 319 enhanced

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoset PF 31, black or red.
Bush electro zinc-plated steel.Version:High-gloss polished.Assembly:Assembly Form L: The ball knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g!

The version 06250-21604 has a brass bush.

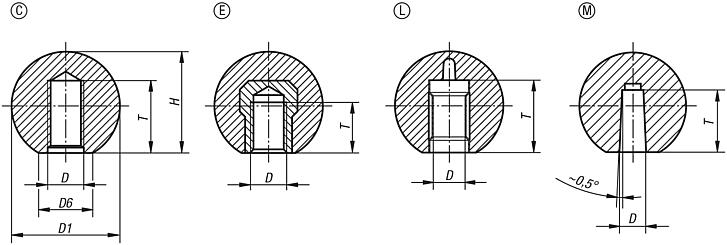

The versions 06250-23008, 06250-230081, 06250-23508 and 06250-24008 have copper-plated steel bushes. Shank tolerance:Ball knobs with press-fit sleeve can be mounted on standard shafts with tolerance h9. The supplied press-fit sleeve assures a firm and reliable fit.Drawing reference:

Form C: moulded thread
Form E: tapped bush
Form L: press-fit sleeve
Form M: tapered hole

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06250 Ball knobs smoothDIN 319 enhanced

141 kB

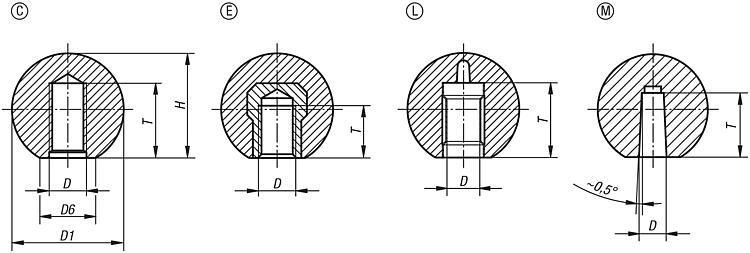

Drawings (total overview)

Ball knobs smooth DIN 319 enhanced, Form C, with molded thread

More information

Drawings

Ball knobs smooth DIN 319 enhanced, Form C, with molded thread

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	Price
06250-11604	C	black	M4	16	8	15	9	on request
06250-11605	C	black	M5	16	8	15	11	on request
06250-11606	C	black	M6	16	8	15	12	on request
06250-12005	C	black	M5	20	12	18	11	on request
06250-12006	C	black	M6	20	12	18	14	on request
06250-12506	C	black	M6	25	15	22,5	15	on request
06250-12508	C	black	M8	25	15	22,5	17	on request
06250-13008	C	black	M8	30	15	28	19	on request
06250-13208	C	black	M8	32	18	29	17	on request
06250-13210	C	black	M10	32	18	29	22	on request
06250-13508	C	black	M8	36	16	34	17	on request
06250-13510	C	black	M10	36	16	34	23	on request
06250-14008	C	black	M8	40	22	37	17	on request
06250-14010	C	black	M10	40	22	37	23	on request
06250-14012	C	black	M12	40	22	37	26	on request
06250-14510	C	black	M10	45	17	43	22	on request
06250-14512	C	black	M12	45	17	43	27	on request
06250-15010	C	black	M10	50	29	46	23	on request
06250-15012	C	black	M12	50	29	46	25	on request
06250-116041	C	red	M4	16	8	15	6	on request
06250-116051	C	red	M5	16	8	15	7,5	on request
06250-120051	C	red	M5	20	12	18	7,5	on request
06250-120061	C	red	M6	20	12	18	9	on request
06250-125061	C	red	M6	25	15	23	9	on request
06250-125081	C	red	M8	25	15	23	12	on request
06250-130081	C	red	M8	30	16	28	12	on request
06250-132081	C	red	M8	32	18	29	12	on request
06250-140081	C	red	M8	40	20	37,5	12	on request
06250-135101	C	red	M10	36	17	33	15	on request
06250-140101	C	red	M10	40	20	37,5	15	on request
06250-150101	C	red	M10	50	22	48	15	on request
06250-150121	C	red	M12	50	28	48	18	on request

Ball knobs smooth DIN 319 enhanced, Form E, with tapped bush

More information

Drawings

Ball knobs smooth DIN 319 enhanced, Form E, with tapped bush

Item selection/filter

Order No.	Form	Main colour	Component material	D	D1	D6	H	T	Price
06250-21604	E	black	brass	M4	16	8	15	10	on request
06250-22005	E	black	Brass	M5	20	12	18	12	on request
06250-22006	E	black	steel	M6	20	12	18	15	on request
06250-22506	E	black	steel	M6	25	15	22,5	15	on request
06250-22508	E	black	steel	M8	25	15	22,5	18	on request
06250-23008	E	black	Brass	M8	30	15	28	15	on request
06250-23208	E	black	steel	M8	32	18	29	18	on request
06250-23210	E	black	steel	M10	32	18	29	18	on request
06250-23508	E	black	steel	M8	36	16	34	18	on request
06250-23510	E	black	steel	M10	36	16	34	23	on request
06250-24008	E	black	steel	M8	40	22	37	18	on request
06250-24010	E	black	steel	M10	40	22	37	23	on request
06250-24012	E	black	steel	M12	40	22	37	25	on request
06250-24510	E	black	steel	M10	45	17	43	23	on request
06250-24512	E	black	steel	M12	45	17	43	25	on request
06250-25010	E	black	steel	M10	50	29	46	23	on request
06250-25012	E	black	steel	M12	50	29	46	25	on request
06250-220051	E	red	steel	M5	20	12	18	7,5	on request
06250-225061	E	red	steel	M6	25	15	23	9	on request
06250-230081	E	red	steel	M8	30	16	28	12	on request
06250-235101	E	red	steel	M10	36	17	33	14	on request
06250-240101	E	red	steel	M10	40	20	37,5	15	on request
06250-240121	E	red	steel	M12	40	20	37,5	18	on request
06250-250121	E	red	steel	M12	50	28	48	18	on request

Ball knobs smooth DIN 319 enhanced, Form L, with clamping sleeve

More information

Drawings

Ball knobs smooth DIN 319 enhanced, Form L, with clamping sleeve

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	Price
06250-42005	L	black	5	20	12	18	13	on request
06250-42506	L	black	6	25	15	23	16	on request
06250-42508	L	black	8	25	15	23	15	on request
06250-43208	L	black	8	32	18	29	15	on request
06250-43210	L	black	10	32	18	29	20	on request
06250-44010	L	black	10	40	20	37,5	20	on request
06250-44012	L	black	12	40	20	37,5	23	on request
06250-45012	L	black	12	50	28	48	20	on request

Ball knobs smooth DIN 319 enhanced, Form M, with tapered bore

More information

Drawings

Ball knobs smooth DIN 319 enhanced, Form M, with tapered bore

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	Price
06250-31604	M	black	4	16	8	15	10	on request
06250-32005	M	black	5	20	12	18	11	on request
06250-32506	M	black	6	25	15	22,5	14	on request
06250-32508	M	black	8	25	15	22,5	14	on request
06250-33208	M	black	8	32	18	29	14	on request
06250-33210	M	black	10	32	18	29	14	on request
06250-34010	M	black	10	40	22	37	19	on request
06250-34012	M	black	12	40	22	37	19	on request
06250-35012	M	black	12	50	29	46	21	on request
