        Knurled knobs with grip

Item description/product images

Show/filter all items

DescriptionMaterial:Black thermoplastic.
Bush grade 5.8 steel.Version:Steel trivalent blue-passivated.Note:Form H: without locking grub screw
Form M: with locking grub screwSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06268 Knurled knobs with grip

220 kB

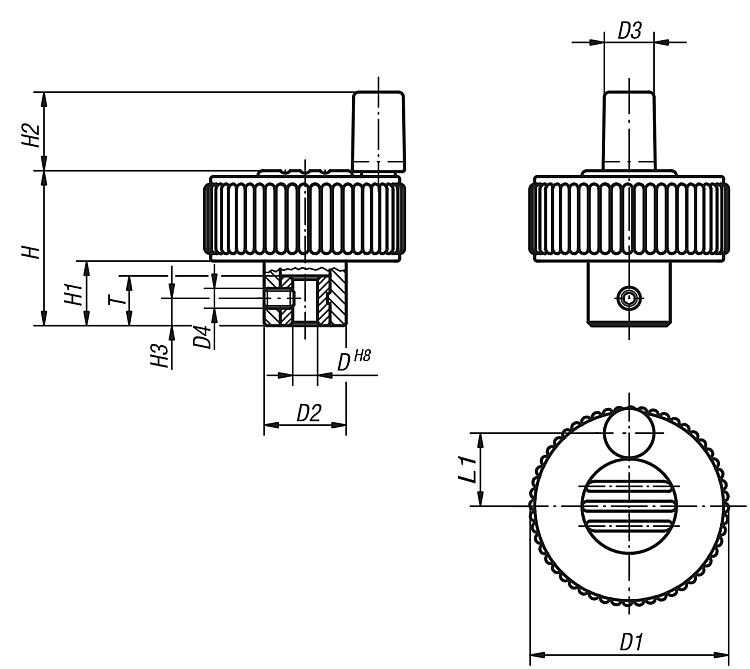

Drawings (total overview)

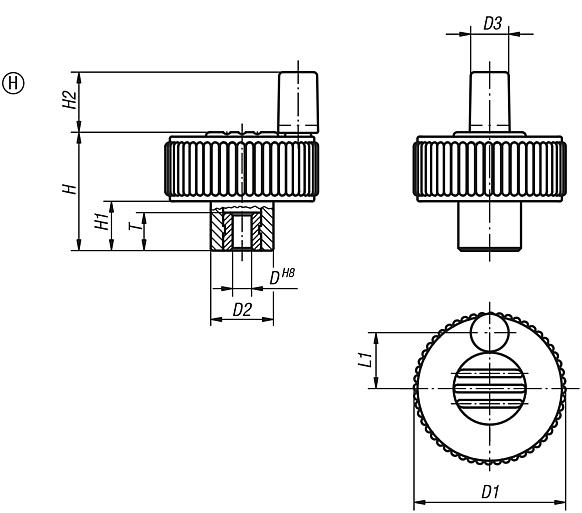

Knurled knob with grip, Form H, without cross hole

More information

Drawings

Knurled knob with grip, Form H, without cross hole

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D2	D3	H	H1	H2	L1	T	Price
06268-2106	H	black grey RAL 7021	6H8	40	16,5	10	31	13	16	15	10	on request
06268-21061	H	orange RAL 2004	6H8	40	16,5	10	31	13	16	15	10	on request
06268-21062	H	signal green RAL6032	6H8	40	16,5	10	31	13	16	15	10	on request
06268-21063	H	blue RAL5017	6H8	40	16,5	10	31	13	16	15	10	on request
06268-21065	H	light grey RAL 7035	6H8	40	16,5	10	31	13	16	15	10	on request
06268-21066	H	traffic red RAL 3020	6H8	40	16,5	10	31	13	16	15	10	on request
06268-21067	H	colza yellow RAL 1021	6H8	40	16,5	10	31	13	16	15	10	on request
06268-2206	H	black grey RAL 7021	6H8	50	18	10	36	15	16	18,5	10	on request
06268-22061	H	orange RAL 2004	6H8	50	18	10	36	15	16	18,5	10	on request
06268-22062	H	signal green RAL6032	6H8	50	18	10	36	15	16	18,5	10	on request
06268-22063	H	blue RAL5017	6H8	50	18	10	36	15	16	18,5	10	on request
06268-22065	H	light grey RAL 7035	6H8	50	18	10	36	15	16	18,5	10	on request
06268-22066	H	traffic red RAL 3020	6H8	50	18	10	36	15	16	18,5	10	on request
06268-22067	H	colza yellow RAL 1021	6H8	50	18	10	36	15	16	18,5	10	on request
06268-2308	H	black grey RAL 7021	8H8	63	22	10	41	17	16	25	14	on request
06268-23081	H	orange RAL 2004	8H8	63	22	10	41	17	16	25	14	on request
06268-23082	H	signal green RAL6032	8H8	63	22	10	41	17	16	25	14	on request
06268-23083	H	blue RAL5017	8H8	63	22	10	41	17	16	25	14	on request
06268-23085	H	light grey RAL 7035	8H8	63	22	10	41	17	16	25	14	on request
06268-23086	H	traffic red RAL 3020	8H8	63	22	10	41	17	16	25	14	on request
06268-23087	H	colza yellow RAL 1021	8H8	63	22	10	41	17	16	25	14	on request

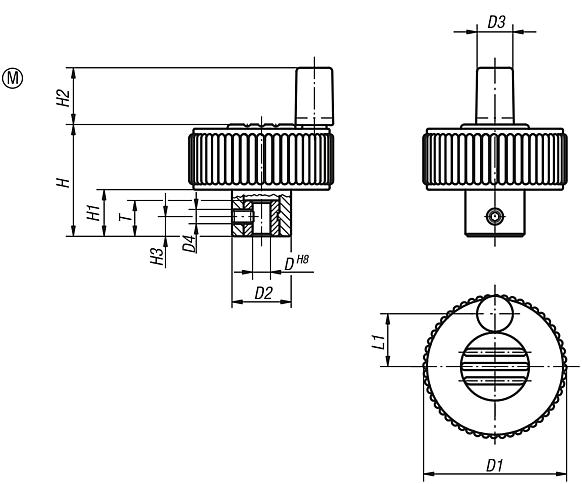

Knurled knobs with grip, Form M, with cross hole and grub screw

More information

Drawings

Knurled knobs with grip, Form M, with cross hole and grub screw

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D2	D3	D4	H	H1	H2	H3	L1	T	Price
06268-1106	M	black grey RAL 7021	6H8	40	16,5	10	M4	31	13	16	5,5	15	10	on request
06268-11061	M	orange RAL 2004	6H8	40	16,5	10	M4	31	13	16	5,5	15	10	on request
06268-11062	M	signal green RAL6032	6H8	40	16,5	10	M4	31	13	16	5,5	15	10	on request
06268-11063	M	blue RAL5017	6H8	40	16,5	10	M4	31	13	16	5,5	15	10	on request
06268-11065	M	light grey RAL 7035	6H8	40	16,5	10	M4	31	13	16	5,5	15	10	on request
06268-11066	M	traffic red RAL 3020	6H8	40	16,5	10	M4	31	13	16	5,5	15	10	on request
06268-11067	M	colza yellow RAL 1021	6H8	40	16,5	10	M4	31	13	16	5,5	15	10	on request
06268-1206	M	black grey RAL 7021	6H8	50	18	10	M4	36	15	16	5,5	18,5	10	on request
06268-12061	M	orange RAL 2004	6H8	50	18	10	M4	36	15	16	5,5	18,5	10	on request
06268-12062	M	signal green RAL6032	6H8	50	18	10	M4	36	15	16	5,5	18,5	10	on request
06268-12063	M	blue RAL5017	6H8	50	18	10	M4	36	15	16	5,5	18,5	10	on request
06268-12065	M	light grey RAL 7035	6H8	50	18	10	M4	36	15	16	5,5	18,5	10	on request
06268-12066	M	traffic red RAL 3020	6H8	50	18	10	M4	36	15	16	5,5	18,5	10	on request
06268-12067	M	colza yellow RAL 1021	6H8	50	18	10	M4	36	15	16	5,5	18,5	10	on request
06268-1308	M	black grey RAL 7021	8H8	63	22	10	M4	41	17	16	8	25	14	on request
06268-13081	M	orange RAL 2004	8H8	63	22	10	M4	41	17	16	8	25	14	on request
06268-13082	M	signal green RAL6032	8H8	63	22	10	M4	41	17	16	8	25	14	on request
06268-13083	M	blue RAL5017	8H8	63	22	10	M4	41	17	16	8	25	14	on request
06268-13085	M	light grey RAL 7035	8H8	63	22	10	M4	41	17	16	8	25	14	on request
06268-13086	M	traffic red RAL 3020	8H8	63	22	10	M4	41	17	16	8	25	14	on request
06268-13087	M	colza yellow RAL 1021	8H8	63	22	10	M4	41	17	16	8	25	14	on request
