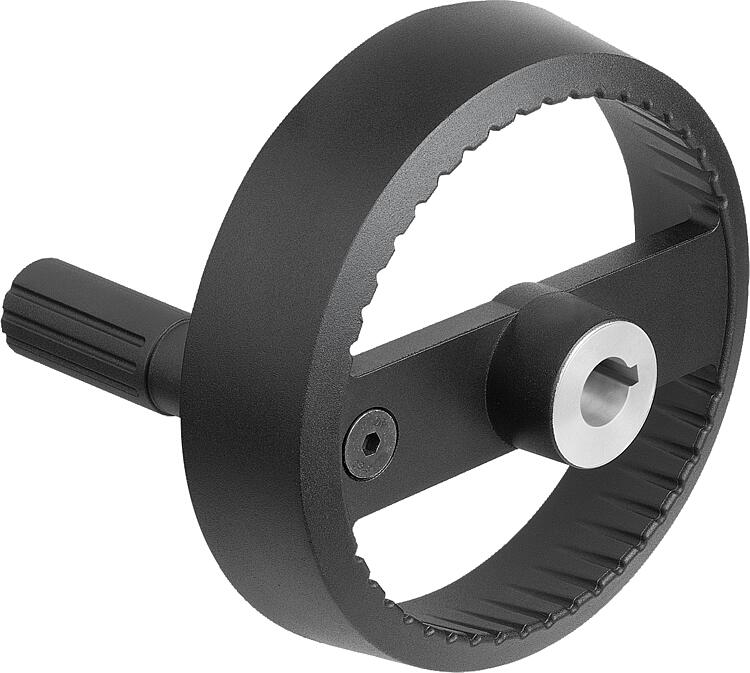

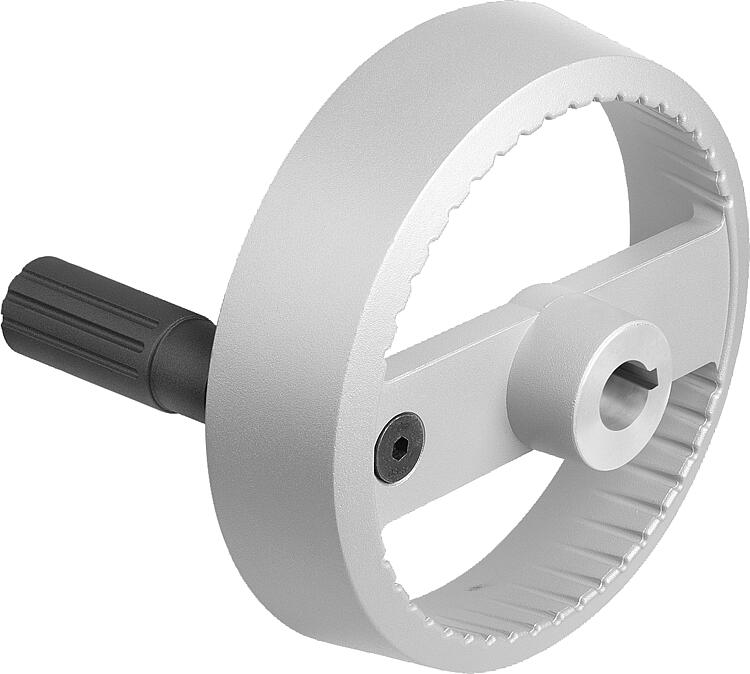

        2-spoke handwheels, aluminium with fold-down cylinder grip
        2-spoke handwheels, aluminium, with fold-down cylinder grip, Form C with reamed hole and keyway

Item description/product images

DescriptionMaterial:Handwheel aluminium.
Cylinder grip and hub cover black thermoplastic.
Cylinder grip pin black oxidised steel.
ISO 4027 grub screw, steel grade 45 H, black.Version:Black or silver powder-coated.Note:Wheel rim radial and axial run-out ≤ 0.4 mm.Assembly:The hub cover is supplied unassembled.
The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer 07375.
By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.Accessory:07375 Handwheel washers.
07161 Socket head screws with low head DIN 6912.Supplied withAluminium handwheel.
Hub cover.
Fold-down cylinder grip.
ISO 4027 grub screw (type with transverse bore).Drawing reference:

1) Position of the transverse bore to the keyway is offset by 90°.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06276-12_C 2-spoke handwheels, aluminium, with fold-down cylinder grip, Form C with reamed hole and keyway

895 kB

Drawings

Item selection/filter

Order No.	Main colour	Form	Form definition	A	B3	D1	D2	D3	D4	D5	D6	H	L	L1	L2	L3	T	Price
06276-12-12512104	black	C	reamed hole with slot	42	4	125	12	31	19,9	M6	20	17,6	105	18	56	49	13,8	on request
06276-12-12514105	black	C	reamed hole with slot	42	5	125	14	31	19,9	M6	20	17,6	105	18	56	49	16,3	on request
06276-12-16014105	black	C	reamed hole with slot	55	5	160	14	36	26	M8	26	17,8	137	20	80	57	16,3	on request
06276-12-16016105	black	C	reamed hole with slot	55	5	160	16	36	26	M8	26	17,8	137	20	80	57	18,3	on request
06276-12-12512204	silver	C	reamed hole with slot	42	4	125	12	31	19,9	M6	20	17,6	105	18	56	49	13,8	on request
06276-12-12514205	silver	C	reamed hole with slot	42	5	125	14	31	19,9	M6	20	17,6	105	18	56	49	16,3	on request
06276-12-16014205	silver	C	reamed hole with slot	55	5	160	14	36	26	M8	26	17,8	137	20	80	57	16,3	on request
06276-12-16016205	silver	C	reamed hole with slot	55	5	160	16	36	26	M8	26	17,8	137	20	80	57	18,3	on request
