        Disc handwheels, aluminium with fold-down cylindrical grip
        Disc handwheels, aluminium with fold-down cylindrical grip, Form E with reamed hole

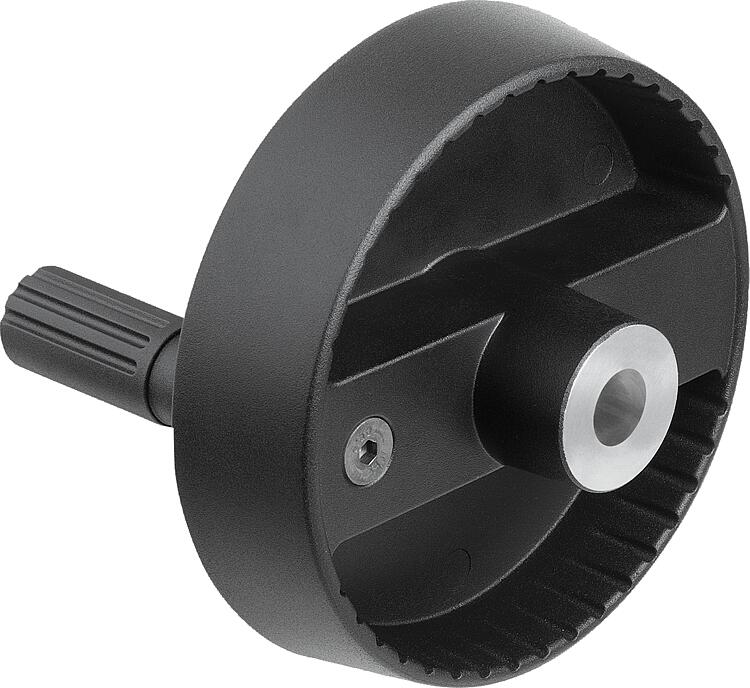

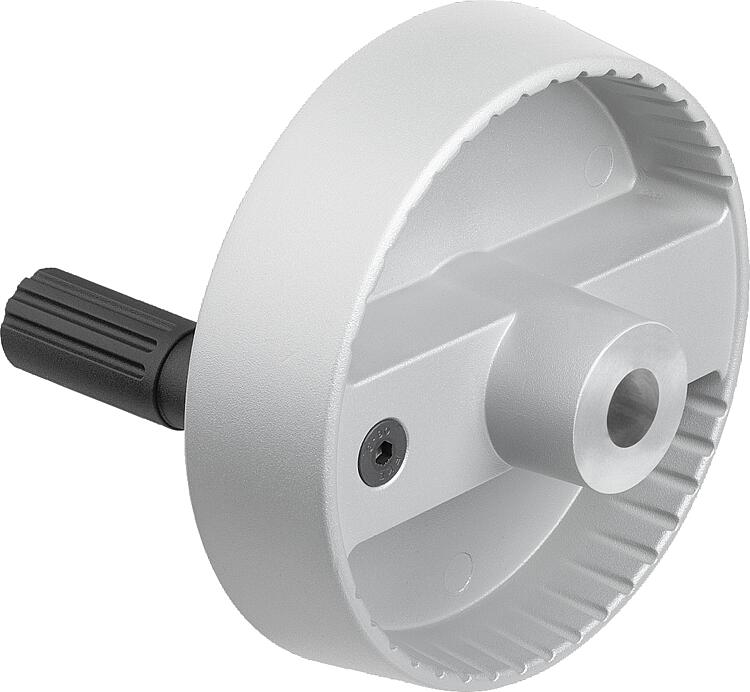

Item description/product images

DescriptionMaterial:Handwheel aluminium.
Cylinder grip and hub cover black thermoplastic.
Cylinder grip pin black oxidised steel.
ISO 4027 grub screw, steel grade 45 H, black.Version:Black or silver powder-coated.Note:Wheel rim radial and axial run-out ≤ 0.4 mm.Assembly:The hub cover is supplied unassembled.
The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer 07375.
By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.Accessory:07375 Handwheel washers.
07161 Socket head screws with low head DIN 6912.Supplied withAluminium handwheel.
Hub cover.
Fold-down cylinder grip.
ISO 4027 grub screw (type with transverse bore).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06278-02_E Disc handwheels, aluminium with fold-down cylindrical grip, Form E with reamed hole

956 kB

Drawings

Item selection/filter

Order No.	Main colour	Form	Form definition	A	D1	D2	D3	D4	D5	D6	H	L	L1	L2	L3	Price
06278-02-100101	black	E	with reamed hole	33	100	10	28	16	M5	16	17,4	92,5	17	47,5	45	on request
06278-02-100121	black	E	with reamed hole	33	100	12	28	16	M5	16	17,4	92,5	17	47,5	45	on request
06278-02-125121	black	E	with reamed hole	42	125	12	31	19,9	M6	20	18,3	105,5	18	56,5	49	on request
06278-02-125141	black	E	with reamed hole	42	125	14	31	19,9	M6	20	18,3	105,5	18	56,5	49	on request
06278-02-100102	silver	E	with reamed hole	33	100	10	28	16	M5	16	17,4	92,5	17	47,5	45	on request
06278-02-100122	silver	E	with reamed hole	33	100	12	28	16	M5	16	17,4	92,5	17	47,5	45	on request
06278-02-125122	silver	E	with reamed hole	42	125	12	31	19,9	M6	20	18,3	105,5	18	56,5	49	on request
06278-02-125142	silver	E	with reamed hole	42	125	14	31	19,9	M6	20	18,3	105,5	18	56,5	49	on request
