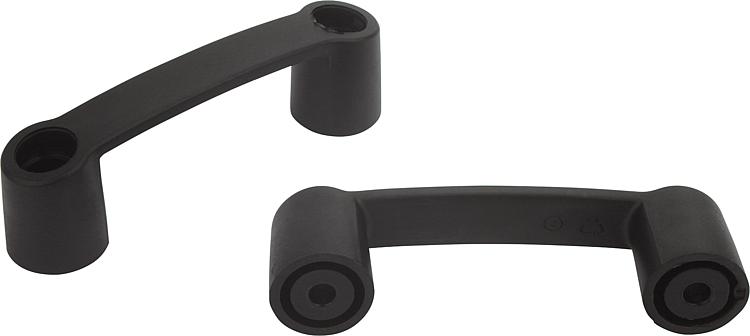

06902_BPull handles, plastic, narrow, mounted from front or rear |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic.Version:Handle and cap black.On request:Other handle or cap colours. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | A | B | B1 | D | D1 | H | L | L1 | S | T | T1 | Load
capacity
N | CAD | Acc. | Price | Order |
|---|
| 06902-209406 | B | 93,5 | 26 | 17 | 6,8 | 12 | 35 | 119,5 | 67,5 | 5,8 | 4,5 | 19 | 500 |  | | on request | | | 06902-211708 | B | 117 | 29 | 19 | 8,5 | 13,5 | 40 | 145 | 89 | 6,4 | 8 | 23 | 950 | | | on request | | | 06902-213208 | B | 132 | 31 | 20 | 8,5 | 13,5 | 45 | 163 | 101 | 6,7 | 8 | 22 | 950 | | | on request | | | 06902-217908 | B | 179 | 35 | 22 | 8,5 | 13,5 | 50 | 213 | 145 | 7,1 | 12 | 22 | 950 | | | on request | |
