        Pull handles, plastic, narrow, slanted both sides
        Pull handles, plastic, narrow, slanted both sides, for countersunk screws

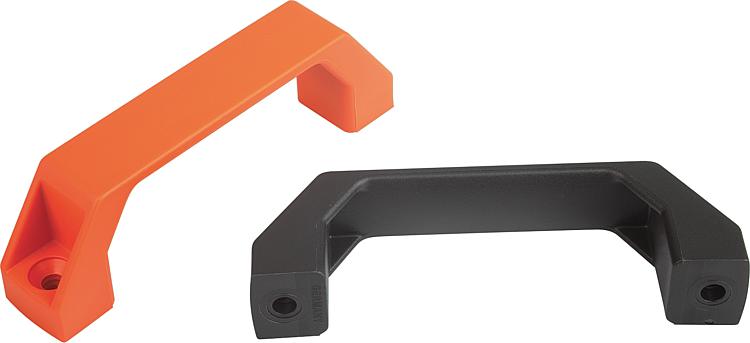

Item description/product images

DescriptionMaterial:Glass bead reinforced thermoplastic.Version:Black RAL 7021 or orange.Note:Dimension “A” applies after mounting. Before mounting it can be up to 2 mm smaller due to the release of the bending stress.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06904_B Pull handles, plastic, narrow, slanted both sides, for countersunk screws

104 kB

Drawings

Item selection/filter

Order No.	Form	Main colour	A	B	C	D	H	L	L1	Load capacity N	Price
06904-2120061	B	black grey RAL 7021	120	26	8	6,6	42	138	96	1000	on request
06904-2140061	B	black grey RAL 7021	140	26	8	6,6	42	158	116	1000	on request
06904-2160061	B	black grey RAL 7021	160	28	9	6,6	45	178	136	1000	on request
06904-2120062	B	orange	120	26	8	6,6	42	138	96	1000	on request
06904-2140062	B	orange	140	26	8	6,6	42	158	116	1000	on request
06904-2160062	B	orange	160	28	9	6,6	45	178	136	1000	on request
