        Ball-end thrust screws with head stainless steel

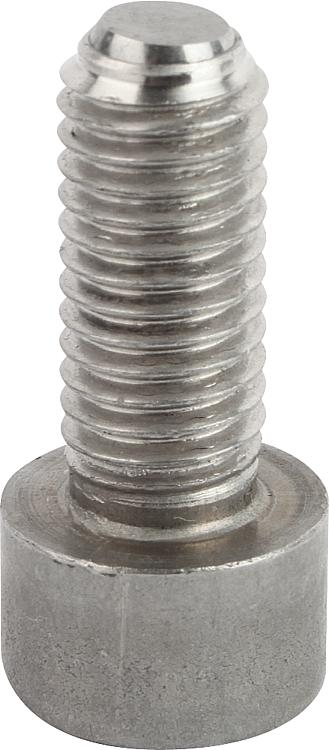

        Ball-end thrust screws with head stainless steel Form B, with flattened ball

Item description/product images

DescriptionMaterial:Stainless steelVersion:Bright.Note:Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07101_B Ball-end thrust screws with head stainless steel Form B, with flattened ball

170 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D3	L	L1	L2	Ball-Ø	SW	Load rating max. kN (static load only)	Price
07101-20410	B	M4	1,4	7	9,7	2,1	4	2,5	3	3,5	on request
07101-20416	B	M4	1,4	7	15,7	2,1	4	2,5	3	3,5	on request
07101-20420	B	M4	1,4	7	19,7	2,1	4	2,5	3	3,5	on request
07101-20512	B	M5	2	8,5	11,7	2,4	5	3	4	4,5	on request
07101-20516	B	M5	2	8,5	15,7	2,4	5	3	4	4,5	on request
07101-20520	B	M5	2	8,5	19,7	2,4	5	3	4	4,5	on request
07101-20620	B	M6	3,2	10	20	3	6	4	5	9	on request
07101-20630	B	M6	3,2	10	30	3	6	4	5	9	on request
07101-20640	B	M6	3,2	10	40	16	6	4	5	9	on request
07101-20820	B	M8	4,5	13	20	3,5	8	5,5	6	15	on request
07101-20835	B	M8	4,5	13	35	3,5	8	5,5	6	15	on request
07101-20850	B	M8	4,5	13	50	22	8	5,5	6	15	on request
07101-21025	B	M10	6	16	25	4,5	10	7	8	20	on request
07101-21040	B	M10	6	16	40	4,5	10	7	8	20	on request
07101-21060	B	M10	6	16	60	28	10	7	8	20	on request
07101-21230	B	M12	7,2	18	30	5	12	8,5	10	30	on request
07101-21250	B	M12	7,2	18	50	5	12	8,5	10	30	on request
07101-21280	B	M12	7,2	18	80	44	12	8,5	10	30	on request
07101-21640	B	M16	10,7	24	40	6	16	12	14	60	on request
07101-21660	B	M16	10,7	24	60	6	16	12	14	60	on request
07101-21680	B	M16	10,7	24	80	36	16	12	14	60	on request
