        Ball pressure screws without head with fine thread form A

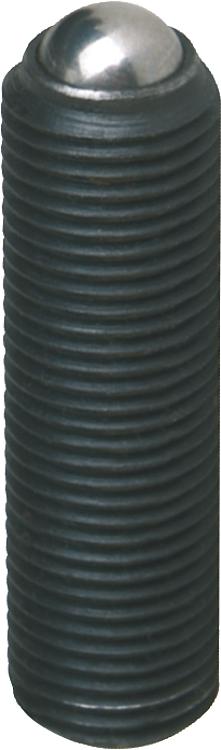

Item description/product images

DescriptionMaterial:Screw carbon steel, grade min. 10.9
Ball, ball-bearing steel.Version:Screw black.
Ball hardened and bright.Note:Form A with full ball is used when a clean, polished pressure surface is required.

Fine thread enables extremely sensitive alignment of the ball pressure screws.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07107_A Ball pressure screws without head with fine thread form A

99,5 kB

Drawings

Item selection/filter

Order No.	Form	D1	L1	Ball Ø	SW	Load rating max. kN (static load only)	Price
07107-10410	A	M4x0,5	10	2,5	2	3,5	on request
07107-10406	A	M4x0,5	6	2,5	2	3,5	on request
07107-10512	A	M5x0,5	12	3	2,5	4,5	on request
07107-10508	A	M5x0,5	8	3	2,5	4,5	on request
07107-10610	A	M6x0,5	10,8	4	3	9	on request
07107-10612	A	M6x0,5	12,8	4	3	9	on request
07107-10616	A	M6x0,5	16,8	4	3	9	on request
07107-10620	A	M6x0,5	20,8	4	3	9	on request
07107-10625	A	M6x0,5	25,8	4	3	9	on request
07107-10810	A	M8x1	11,2	5,5	4	10	on request
07107-10820	A	M8x1	21,2	5,5	4	15	on request
07107-11012	A	M10x1	13,7	7	5	20	on request
07107-11025	A	M10x1	26,7	7	5	20	on request
07107-11216	A	M12x1,5	18	8,5	6	30	on request
07107-11230	A	M12x1,5	32	8,5	6	30	on request
07107-11620	A	M16x1,5	23,3	12	8	60	on request
07107-11635	A	M16x1,5	38,3	12	8	60	on request
07107-12030	A	M20x1,5	34,2	15	10	90	on request
07107-12040	A	M20x1,5	44,2	15	10	90	on request
