        Nuts for T-slots rhombic form

Item description/product images

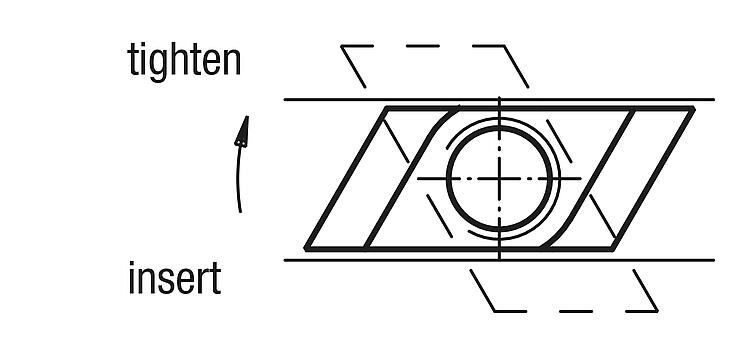

DescriptionMaterial:Carbon steel.Version:Tempered to 8 and black oxidised.Note:The benefit of rhombic nuts for T-slots is that they can be fitted in the slot from the top. They are particularly useful for long T-slots, or when the configuration on the machine table does not permit clamping screws or nuts for T-slots to be inserted from the side.Application:Insert from above then twist in the slot until it stops.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07080 Nuts for T-slots rhombic form

187 kB

Grades

124 kB

Drawings

Item selection/filter

	6 8 10 12 14 18 16 20 22 28 36 42	10 13 15 18 22 28 25 32 35 44 54 65	5,6 7,6 9,7 11,7 13,5 17,5 13,7 15,7 17,7 19,7 21,5 27,5 21,7 27,7 35,6 41,5	M5 M6 M8 M10 M12 M14 M16 M18 M20 M24 M30 M36	8 10 12 14 16 20 18 24 28 36 44 52	4 6 7 8 10 9 12 14 18 22 26				Reset
Order No.	Slot width	B	B1	D	H	H1	CAD	Acc.	Price	Order
07080-105	6	10	5,6	M5	8	4			on request
07080-106	8	13	7,6	M6	10	6			on request
07080-108	10	15	9,7	M8	12	6			on request
07080-110	12	18	11,7	M10	14	7			on request
07080-210	14	22	13,5	M10	16	8			on request
07080-310	18	28	17,5	M10	20	10			on request
07080-112	14	22	13,7	M12	16	8			on request
07080-114	16	25	15,7	M14	18	9			on request
07080-116	18	28	17,7	M16	20	10			on request
07080-216	20	32	19,7	M16	24	12			on request
07080-316	22	35	21,5	M16	28	14			on request
07080-416	28	44	27,5	M16	36	18			on request
07080-118	20	32	19,7	M18	24	12			on request
07080-120	22	35	21,7	M20	28	14			on request
07080-124	28	44	27,7	M24	36	18			on request
07080-130	36	54	35,6	M30	44	22			on request
07080-136	42	65	41,5	M36	52	26			on request
