        Socket head screws full thread, DIN 912

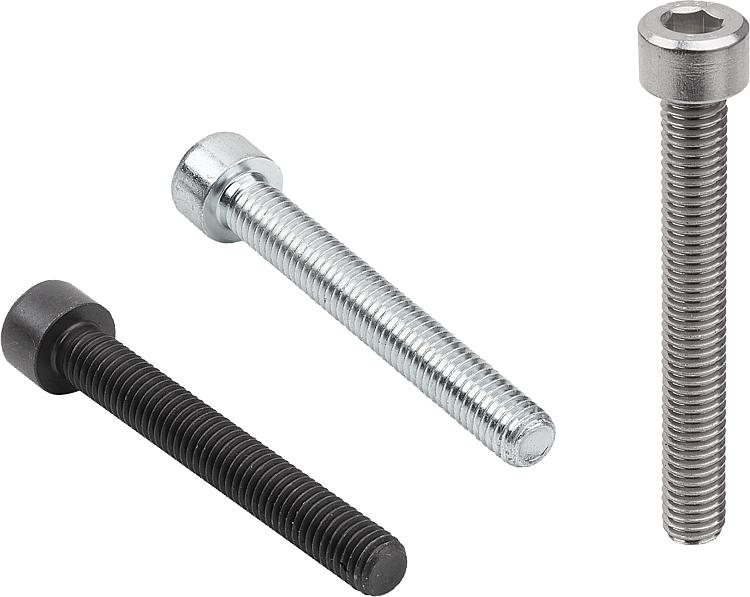

Item description/product images

DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 8.8, bright (blackened) or electro zinc-plated.
Stainless steel A2-70, bright
Stainless steel A4-70, bright

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07159 Socket head screws full thread, DIN 912

166 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

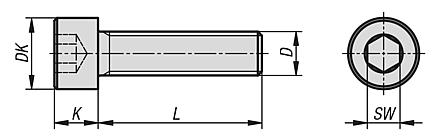

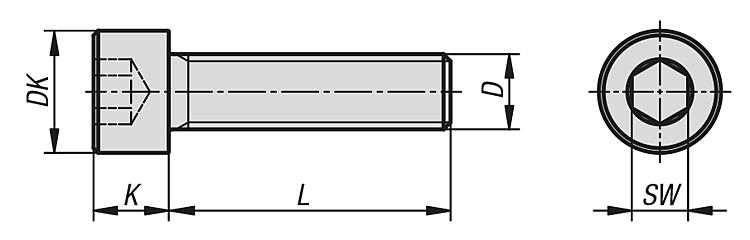

Drawings

Item selection/filter

	steel stainless steel A2 stainless steel A4	8.8 70	bright (black) galvanised bright	M5 M6 M8 M10 M12	40 50 60 80 70 90 100	8,5 10 13 16 18	5 6 8 10 12	4 5 6 8 10				Reset
Order No.	Main material	Grade	Surface finish body	D	L	DK	K	SW	CAD	Acc.	Price	Order
07159-05X40	steel	8.8	bright (black)	M5	40	8,5	5	4			on request
07159-05X50	steel	8.8	bright (black)	M5	50	8,5	5	4			on request
07159-05X60	steel	8.8	bright (black)	M5	60	8,5	5	4			on request
07159-05X80	steel	8.8	bright (black)	M5	80	8,5	5	4			on request
07159-06X40	steel	8.8	bright (black)	M6	40	10	6	5			on request
07159-06X50	steel	8.8	bright (black)	M6	50	10	6	5			on request
07159-06X60	steel	8.8	bright (black)	M6	60	10	6	5			on request
07159-06X70	steel	8.8	bright (black)	M6	70	10	6	5			on request
07159-06X90	steel	8.8	bright (black)	M6	90	10	6	5			on request
07159-06X100	steel	8.8	bright (black)	M6	100	10	6	5			on request
07159-08X50	steel	8.8	bright (black)	M8	50	13	8	6			on request
07159-08X60	steel	8.8	bright (black)	M8	60	13	8	6			on request
07159-08X70	steel	8.8	bright (black)	M8	70	13	8	6			on request
07159-08X80	steel	8.8	bright (black)	M8	80	13	8	6			on request
07159-08X90	steel	8.8	bright (black)	M8	90	13	8	6			on request
07159-10X50	steel	8.8	bright (black)	M10	50	16	10	8			on request
07159-10X60	steel	8.8	bright (black)	M10	60	16	10	8			on request
07159-10X70	steel	8.8	bright (black)	M10	70	16	10	8			on request
07159-10X80	steel	8.8	bright (black)	M10	80	16	10	8			on request
07159-10X90	steel	8.8	bright (black)	M10	90	16	10	8			on request
07159-10X100	steel	8.8	bright (black)	M10	100	16	10	8			on request
07159-12X80	steel	8.8	bright (black)	M12	80	18	12	10			on request
07159-12X90	steel	8.8	bright (black)	M12	90	18	12	10			on request
07159-12X100	steel	8.8	bright (black)	M12	100	18	12	10			on request
07159-405X40	steel	8.8	galvanised	M5	40	8,5	5	4			on request
07159-405X70	steel	8.8	galvanised	M5	70	8,5	5	4			on request
07159-405X80	steel	8.8	galvanised	M5	80	8,5	5	4			on request
07159-406X40	steel	8.8	galvanised	M6	40	10	6	5			on request
07159-406X50	steel	8.8	galvanised	M6	50	10	6	5			on request
07159-406X60	steel	8.8	galvanised	M6	60	10	6	5			on request
07159-406X70	steel	8.8	galvanised	M6	70	10	6	5			on request
07159-406X80	steel	8.8	galvanised	M6	80	10	6	5			on request
07159-406X90	steel	8.8	galvanised	M6	90	10	6	5			on request
07159-406X100	steel	8.8	galvanised	M6	100	10	6	5			on request
07159-408X50	steel	8.8	galvanised	M8	50	13	8	6			on request
07159-408X60	steel	8.8	galvanised	M8	60	13	8	6			on request
07159-408X70	steel	8.8	galvanised	M8	70	13	8	6			on request
07159-408X80	steel	8.8	galvanised	M8	80	13	8	6			on request
07159-408X90	steel	8.8	galvanised	M8	90	13	8	6			on request
07159-408X100	steel	8.8	galvanised	M8	100	13	8	6			on request
07159-410X50	steel	8.8	galvanised	M10	50	16	10	8			on request
07159-410X60	steel	8.8	galvanised	M10	60	16	10	8			on request
07159-410X70	steel	8.8	galvanised	M10	70	16	10	8			on request
07159-410X80	steel	8.8	galvanised	M10	80	16	10	8			on request
07159-410X90	steel	8.8	galvanised	M10	90	16	10	8			on request
07159-410X100	steel	8.8	galvanised	M10	100	16	10	8			on request
07159-412X70	steel	8.8	galvanised	M12	70	18	12	10			on request
07159-412X80	steel	8.8	galvanised	M12	80	18	12	10			on request
07159-412X90	steel	8.8	galvanised	M12	90	18	12	10			on request
07159-412X100	steel	8.8	galvanised	M12	100	18	12	10			on request
07159-105X40	stainless steel A2	70	bright	M5	40	8,5	5	4			on request
07159-105X70	stainless steel A2	70	bright	M5	70	8,5	5	4			on request
07159-106X40	stainless steel A2	70	bright	M6	40	10	6	5			on request
07159-106X50	stainless steel A2	70	bright	M6	50	10	6	5			on request
07159-106X60	stainless steel A2	70	bright	M6	60	10	6	5			on request
07159-106X70	stainless steel A2	70	bright	M6	70	10	6	5			on request
07159-106X80	stainless steel A2	70	bright	M6	80	10	6	5			on request
07159-106X90	stainless steel A2	70	bright	M6	90	10	6	5			on request
07159-106X100	stainless steel A2	70	bright	M6	100	10	6	5			on request
07159-108X50	stainless steel A2	70	bright	M8	50	13	8	6			on request
07159-108X60	stainless steel A2	70	bright	M8	60	13	8	6			on request
07159-108X70	stainless steel A2	70	bright	M8	70	13	8	6			on request
07159-108X80	stainless steel A2	70	bright	M8	80	13	8	6			on request
07159-108X90	stainless steel A2	70	bright	M8	90	13	8	6			on request
07159-108X100	stainless steel A2	70	bright	M8	100	13	8	6			on request
07159-110X50	stainless steel A2	70	bright	M10	50	16	10	8			on request
07159-110X60	stainless steel A2	70	bright	M10	60	16	10	8			on request
07159-110X70	stainless steel A2	70	bright	M10	70	16	10	8			on request
07159-110X80	stainless steel A2	70	bright	M10	80	16	10	8			on request
07159-110X90	stainless steel A2	70	bright	M10	90	16	10	8			on request
07159-110X100	stainless steel A2	70	bright	M10	100	16	10	8			on request
07159-112X70	stainless steel A2	70	bright	M12	70	18	12	10			on request
07159-112X80	stainless steel A2	70	bright	M12	80	18	12	10			on request
07159-112X90	stainless steel A2	70	bright	M12	90	18	12	10			on request
07159-112X100	stainless steel A2	70	bright	M12	100	18	12	10			on request
07159-605X40	stainless steel A4	70	bright	M5	40	8,5	5	4			on request
07159-605X70	stainless steel A4	70	bright	M5	70	8,5	5	4			on request
07159-605X80	stainless steel A4	70	bright	M5	80	8,5	5	4			on request
07159-606X40	stainless steel A4	70	bright	M6	40	10	6	5			on request
07159-606X50	stainless steel A4	70	bright	M6	50	10	6	5			on request
07159-606X60	stainless steel A4	70	bright	M6	60	10	6	5			on request
07159-606X70	stainless steel A4	70	bright	M6	70	10	6	5			on request
07159-606X80	stainless steel A4	70	bright	M6	80	10	6	5			on request
07159-606X90	stainless steel A4	70	bright	M6	90	10	6	5			on request
07159-606X100	stainless steel A4	70	bright	M6	100	10	6	5			on request
07159-608X50	stainless steel A4	70	bright	M8	50	13	8	6			on request
07159-608X60	stainless steel A4	70	bright	M8	60	13	8	6			on request
07159-608X70	stainless steel A4	70	bright	M8	70	13	8	6			on request
07159-608X80	stainless steel A4	70	bright	M8	80	13	8	6			on request
07159-608X90	stainless steel A4	70	bright	M8	90	13	8	6			on request
07159-608X100	stainless steel A4	70	bright	M8	100	13	8	6			on request
07159-610X50	stainless steel A4	70	bright	M10	50	16	10	8			on request
07159-610X60	stainless steel A4	70	bright	M10	60	16	10	8			on request
07159-610X70	stainless steel A4	70	bright	M10	70	16	10	8			on request
07159-610X80	stainless steel A4	70	bright	M10	80	16	10	8			on request
07159-610X90	stainless steel A4	70	bright	M10	90	16	10	8			on request
07159-610X100	stainless steel A4	70	bright	M10	100	16	10	8			on request
07159-612X80	stainless steel A4	70	bright	M12	80	18	12	10			on request
07159-612X100	stainless steel A4	70	bright	M12	100	18	12	10			on request
