Socket head screws DIN EN ISO 4762 with thread lock

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Socket head screws DIN EN ISO 4762 with thread lock

Item description/product images

DescriptionMaterial:Steel or stainless steel (A 2).

Thread lock nylon.Version:Steel grade 8.8, black.

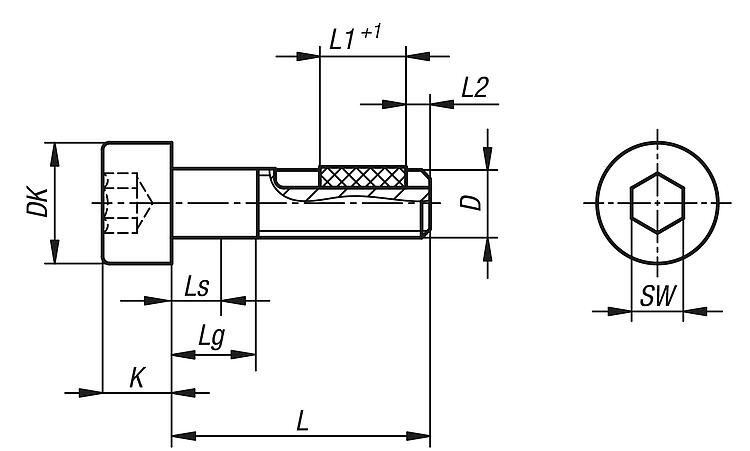

Stainless steel A2-70, bright.Drawing reference:

L2 = approx. 2x thread pitch

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07160 Socket head screws DIN EN ISO 4762 with thread lock

146 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

Drawings

Item selection/filter

Order No.	Material	D	L	Ls min.	Lg max.	DK	K	L1	SW	Tightening torque approx. Nm	Loosening torque approx. Nm	Price
07160-804X10	steel	M4	10	0	2,1	7	4	5	3	0,15	0,22	on request
07160-804X12	steel	M4	12	0	2,1	7	4	5	3	0,15	0,22	on request
07160-804X16	steel	M4	16	0	2,1	7	4	6	3	0,15	0,22	on request
07160-804X20	steel	M4	20	0	2,1	7	4	7	3	0,15	0,22	on request
07160-804X25	steel	M4	25	0	2,1	7	4	7	3	0,15	0,22	on request
07160-805X10	steel	M5	10	0	2,4	8,5	5	5	4	0,25	0,1	on request
07160-805X12	steel	M5	12	0	2,4	8,5	5	6	4	0,25	0,1	on request
07160-805X16	steel	M5	16	0	2,4	8,5	5	7	4	0,25	0,1	on request
07160-805X20	steel	M5	20	0	2,4	8,5	5	7	4	0,25	0,1	on request
07160-805X25	steel	M5	25	0	2,4	8,5	5	8	4	0,25	0,1	on request
07160-805X30	steel	M5	30	4	8	8,5	5	8	4	0,25	0,1	on request
07160-805X40	steel	M5	40	14	18	8,5	5	8	4	0,25	0,1	on request
07160-806X10	steel	M6	10	0	3	10	6	5	5	0,45	0,25	on request
07160-806X12	steel	M6	12	0	3	10	6	6	5	0,45	0,25	on request
07160-806X16	steel	M6	16	0	3	10	6	7	5	0,45	0,25	on request
07160-806X20	steel	M6	20	0	3	10	6	7	5	0,45	0,25	on request
07160-806X25	steel	M6	25	0	3	10	6	8	5	0,45	0,25	on request
07160-806X30	steel	M6	30	0	3	10	6	8	5	0,45	0,25	on request
07160-806X35	steel	M6	35	6	11	10	6	8	5	0,45	0,25	on request
07160-806X40	steel	M6	40	11	16	10	6	8	5	0,45	0,25	on request
07160-806X45	steel	M6	45	16	21	10	6	8	5	0,45	0,25	on request
07160-806X50	steel	M6	50	21	26	10	6	8	5	0,45	0,25	on request
07160-808X16	steel	M8	16	0	3,75	13	8	7	6	0,8	0,4	on request
07160-808X20	steel	M8	20	0	3,75	13	8	8	6	0,8	0,4	on request
07160-808X25	steel	M8	25	0	3,75	13	8	8	6	0,8	0,4	on request
07160-808X30	steel	M8	30	0	3,75	13	8	8	6	0,8	0,4	on request
07160-808X35	steel	M8	35	0	3,75	13	8	10	6	0,8	0,4	on request
07160-808X40	steel	M8	40	5,75	12	13	8	10	6	0,8	0,4	on request
07160-808X45	steel	M8	45	10,75	17	13	8	10	6	0,8	0,4	on request
07160-810X25	steel	M10	25	0	4,5	16	10	10	8	1,7	0,9	on request
07160-810X30	steel	M10	30	0	4,5	16	10	10	8	1,7	0,9	on request
07160-810X40	steel	M10	40	0	4,5	16	10	12	8	1,7	0,9	on request
07160-810X50	steel	M10	50	10,5	18	16	10	12	8	1,7	0,9	on request
07160-812X30	steel	M12	30	0	5,25	18	12	10	10	1,8	0,9	on request
07160-812X40	steel	M12	40	0	5,25	18	12	12	10	1,8	0,9	on request
07160-812X50	steel	M12	50	0	5,25	18	12	12	10	1,8	0,9	on request
07160-904X10	stainless steel A2	M4	10	0	2,1	7	4	5	3	0,15	0,22	on request
07160-904X12	stainless steel A2	M4	12	0	2,1	7	4	5	3	0,15	0,22	on request
07160-904X16	stainless steel A2	M4	16	0	2,1	7	4	6	3	0,15	0,22	on request
07160-904X20	stainless steel A2	M4	20	0	2,1	7	4	7	3	0,15	0,22	on request
07160-904X25	stainless steel A2	M4	25	0	2,1	7	4	7	3	0,15	0,22	on request
07160-905X10	stainless steel A2	M5	10	0	2,4	8,5	5	5	4	0,25	0,1	on request
07160-905X12	stainless steel A2	M5	12	0	2,4	8,5	5	6	4	0,25	0,1	on request
07160-905X16	stainless steel A2	M5	16	0	2,4	8,5	5	7	4	0,25	0,1	on request
07160-905X20	stainless steel A2	M5	20	0	2,4	8,5	5	7	4	0,25	0,1	on request
07160-905X25	stainless steel A2	M5	25	0	2,4	8,5	5	8	4	0,25	0,1	on request
07160-905X30	stainless steel A2	M5	30	4	8	8,5	5	8	4	0,25	0,1	on request
07160-905X40	stainless steel A2	M5	40	14	18	8,5	5	8	4	0,25	0,1	on request
07160-906X10	stainless steel A2	M6	10	0	3	10	6	5	5	0,45	0,25	on request
07160-906X12	stainless steel A2	M6	12	0	3	10	6	6	5	0,45	0,25	on request
07160-906X16	stainless steel A2	M6	16	0	3	10	6	7	5	0,45	0,25	on request
07160-906X20	stainless steel A2	M6	20	0	3	10	6	7	5	0,45	0,25	on request
07160-906X25	stainless steel A2	M6	25	0	3	10	6	8	5	0,45	0,25	on request
07160-906X30	stainless steel A2	M6	30	0	3	10	6	8	5	0,45	0,25	on request
07160-906X35	stainless steel A2	M6	35	6	11	10	6	8	5	0,45	0,25	on request
07160-906X40	stainless steel A2	M6	40	11	16	10	6	8	5	0,45	0,25	on request
07160-906X45	stainless steel A2	M6	45	16	21	10	6	8	5	0,45	0,25	on request
07160-906X50	stainless steel A2	M6	50	21	26	10	6	8	5	0,45	0,25	on request
07160-908X16	stainless steel A2	M8	16	0	3,75	13	8	7	6	0,8	0,4	on request
07160-908X20	stainless steel A2	M8	20	0	3,75	13	8	8	6	0,8	0,4	on request
07160-908X25	stainless steel A2	M8	25	0	3,75	13	8	8	6	0,8	0,4	on request
07160-908X30	stainless steel A2	M8	30	0	3,75	13	8	8	6	0,8	0,4	on request
07160-908X35	stainless steel A2	M8	35	0	3,75	13	8	10	6	0,8	0,4	on request
07160-908X40	stainless steel A2	M8	40	5,75	12	13	8	10	6	0,8	0,4	on request
07160-908X45	stainless steel A2	M8	45	10,75	17	13	8	10	6	0,8	0,4	on request
07160-910X25	stainless steel A2	M10	25	0	4,5	16	10	10	8	1,7	0,9	on request
07160-910X30	stainless steel A2	M10	30	0	4,5	16	10	10	8	1,7	0,9	on request
07160-910X40	stainless steel A2	M10	40	0	4,5	16	10	12	8	1,7	0,9	on request
07160-910X50	stainless steel A2	M10	50	10,5	18	16	10	12	8	1,7	0,9	on request
07160-912X30	stainless steel A2	M12	30	0	6	18	12	10	10	1,8	0,9	on request
07160-912X40	stainless steel A2	M12	40	0	6	18	12	12	10	1,8	0,9	on request
07160-912X50	stainless steel A2	M12	50	0	6	18	12	12	10	1,8	0,9	on request
