        Socket head screws low head DIN 6912

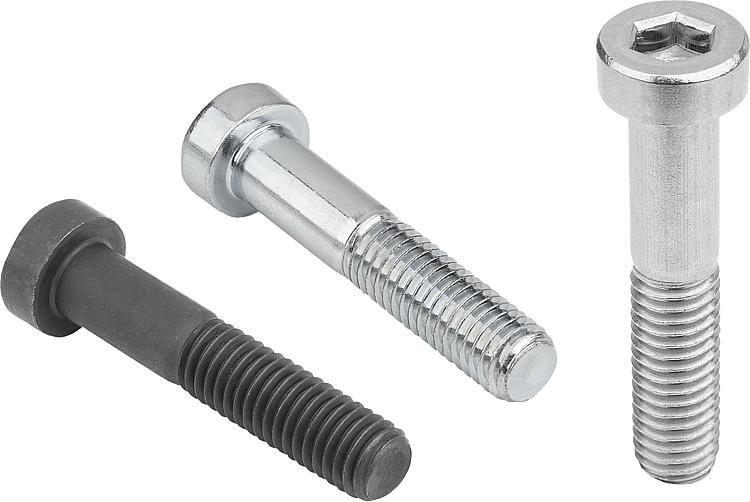

Item description/product images

Show/filter all items

DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 8.8, bright (black) or electro zinc-plated.
Steel grade 10.9, bright (black) or electro zinc-plated.
Stainless steel A2-70, bright.
Stainless steel A4-70, bright.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07161 Socket head screws low head DIN 6912

216 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

Drawings (total overview)

Socket head screws with low head DIN 6912, stainless steel

More information

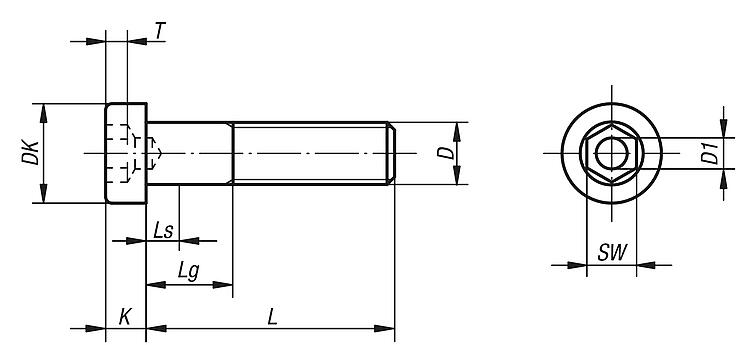

Drawings

Socket head screws with low head DIN 6912, stainless steel

Item selection/filter

Order No.	Main material	Grade	Surface finish body	D	L	DK	K	Ls min.	Lg max.	D1	SW	T	Price
07161-104X10	stainless steel A2	70	bright	M4	10	7	2,8	1,4	3,5	2	3	1,48	on request
07161-104X12	stainless steel A2	70	bright	M4	12	7	2,8	1,4	3,5	2	3	1,48	on request
07161-104X16	stainless steel A2	70	bright	M4	16	7	2,8	1,4	3,5	2	3	1,48	on request
07161-104X20	stainless steel A2	70	bright	M4	20	7	2,8	2,5	6	2	3	1,48	on request
07161-104X25	stainless steel A2	70	bright	M4	25	7	2,8	4,5	11	2	3	1,48	on request
07161-105X10	stainless steel A2	70	bright	M5	10	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-105X12	stainless steel A2	70	bright	M5	12	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-105X16	stainless steel A2	70	bright	M5	16	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-105X20	stainless steel A2	70	bright	M5	20	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-105X25	stainless steel A2	70	bright	M5	25	8,5	3,5	5	9	2,5	4	1,88	on request
07161-105X30	stainless steel A2	70	bright	M5	30	8,5	3,5	10	14	2,5	4	1,88	on request
07161-106X10	stainless steel A2	70	bright	M6	10	10	4	2,5	5,5	3	5	2,38	on request
07161-106X12	stainless steel A2	70	bright	M6	12	10	4	2,5	5,5	3	5	2,38	on request
07161-106X16	stainless steel A2	70	bright	M6	16	10	4	2,5	5,5	3	5	2,38	on request
07161-106X20	stainless steel A2	70	bright	M6	20	10	4	2,5	5,5	3	5	2,38	on request
07161-106X25	stainless steel A2	70	bright	M6	25	10	4	2,5	5,5	3	5	2,38	on request
07161-106X30	stainless steel A2	70	bright	M6	30	10	4	7	12	3	5	2,38	on request
07161-106X35	stainless steel A2	70	bright	M6	35	10	4	12	17	3	5	2,38	on request
07161-106X40	stainless steel A2	70	bright	M6	40	10	4	17	22	3	5	2,38	on request
07161-106X45	stainless steel A2	70	bright	M6	45	10	4	22	27	3	5	2,38	on request
07161-106X50	stainless steel A2	70	bright	M6	50	10	4	27	32	3	5	2,38	on request
07161-106X60	stainless steel A2	70	bright	M6	60	10	4	37	42	3	5	2,38	on request
07161-108X10	stainless steel A2	70	bright	M8	10	13	5	0	6,25	4	6	2,88	on request
07161-108X12	stainless steel A2	70	bright	M8	12	13	5	3,2	7	4	6	2,88	on request
07161-108X16	stainless steel A2	70	bright	M8	16	13	5	3,2	7	4	6	2,88	on request
07161-108X20	stainless steel A2	70	bright	M8	20	13	5	3,2	7	4	6	2,88	on request
07161-108X25	stainless steel A2	70	bright	M8	25	13	5	3,2	7	4	6	2,88	on request
07161-108X30	stainless steel A2	70	bright	M8	30	13	5	3,2	7	4	6	2,88	on request
07161-108X35	stainless steel A2	70	bright	M8	35	13	5	6,75	13	4	6	2,88	on request
07161-108X40	stainless steel A2	70	bright	M8	40	13	5	11,75	18	4	6	2,88	on request
07161-108X45	stainless steel A2	70	bright	M8	45	13	5	16,75	23	4	6	2,88	on request
07161-108X50	stainless steel A2	70	bright	M8	50	13	5	21,75	28	4	6	2,88	on request
07161-108X60	stainless steel A2	70	bright	M8	60	13	5	31,75	38	4	6	2,88	on request
07161-108X70	stainless steel A2	70	bright	M8	70	13	5	41,75	48	4	6	2,88	on request
07161-110X16	stainless steel A2	70	bright	M10	16	16	6,5	3,5	8	5	8	3,35	on request
07161-110X20	stainless steel A2	70	bright	M10	20	16	6,5	3,5	8	5	8	3,35	on request
07161-110X25	stainless steel A2	70	bright	M10	25	16	6,5	3,5	8	5	8	3,35	on request
07161-110X30	stainless steel A2	70	bright	M10	30	16	6,5	3,5	8	5	8	3,35	on request
07161-110X35	stainless steel A2	70	bright	M10	35	16	6,5	3,5	8	5	8	3,35	on request
07161-110X40	stainless steel A2	70	bright	M10	40	16	6,5	6,5	14	5	8	3,35	on request
07161-110X45	stainless steel A2	70	bright	M10	45	16	6,5	11,5	19	5	8	3,35	on request
07161-110X50	stainless steel A2	70	bright	M10	50	16	6,5	16,5	24	5	8	3,35	on request
07161-110X60	stainless steel A2	70	bright	M10	60	16	6,5	26,5	34	5	8	3,35	on request
07161-110X70	stainless steel A2	70	bright	M10	70	16	6,5	36,5	44	5	8	3,35	on request
07161-112X20	stainless steel A2	70	bright	M12	20	18	7,5	4,2	9,5	6	10	3,85	on request
07161-112X25	stainless steel A2	70	bright	M12	25	18	7,5	4,2	9,5	6	10	3,85	on request
07161-112X30	stainless steel A2	70	bright	M12	30	18	7,5	4,2	9,5	6	10	3,85	on request
07161-112X35	stainless steel A2	70	bright	M12	35	18	7,5	4,2	9,5	6	10	3,85	on request
07161-112X40	stainless steel A2	70	bright	M12	40	18	7,5	4,2	9,5	6	10	3,85	on request
07161-112X45	stainless steel A2	70	bright	M12	45	18	7,5	6,5	15	6	10	3,85	on request
07161-112X50	stainless steel A2	70	bright	M12	50	18	7,5	11,5	20	6	10	3,85	on request
07161-112X60	stainless steel A2	70	bright	M12	60	18	7,5	21,5	30	6	10	3,85	on request
07161-112X70	stainless steel A2	70	bright	M12	70	18	7,5	31,5	40	6	10	3,85	on request
07161-604X10	stainless steel A4	70	bright	M4	10	7	2,8	1,4	3,5	2	3	1,48	on request
07161-604X12	stainless steel A4	70	bright	M4	12	7	2,8	1,4	3,5	2	3	1,48	on request
07161-604X16	stainless steel A4	70	bright	M4	16	7	2,8	1,4	3,5	2	3	1,48	on request
07161-604X20	stainless steel A4	70	bright	M4	20	7	2,8	2,5	6	2	3	1,48	on request
07161-604X25	stainless steel A4	70	bright	M4	25	7	2,8	7,5	11	2	3	1,48	on request
07161-605X10	stainless steel A4	70	bright	M5	10	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-605X12	stainless steel A4	70	bright	M5	12	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-605X16	stainless steel A4	70	bright	M5	16	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-605X20	stainless steel A4	70	bright	M5	20	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-605X25	stainless steel A4	70	bright	M5	25	8,5	3,5	5	9	2,5	4	1,88	on request
07161-605X30	stainless steel A4	70	bright	M5	30	8,5	3,5	10	14	2,5	4	1,88	on request
07161-606X10	stainless steel A4	70	bright	M6	10	10	4	2,5	5,5	3	5	2,38	on request
07161-606X12	stainless steel A4	70	bright	M6	12	10	4	2,5	5,5	3	5	2,38	on request
07161-606X16	stainless steel A4	70	bright	M6	16	10	4	2,5	5,5	3	5	2,38	on request
07161-606X20	stainless steel A4	70	bright	M6	20	10	4	2,5	5,5	3	5	2,38	on request
07161-606X25	stainless steel A4	70	bright	M6	25	10	4	2,5	5,5	3	5	2,38	on request
07161-606X30	stainless steel A4	70	bright	M6	30	10	4	7	12	3	5	2,38	on request
07161-606X35	stainless steel A4	70	bright	M6	35	10	4	12	17	3	5	2,38	on request
07161-606X40	stainless steel A4	70	bright	M6	40	10	4	17	22	3	5	2,38	on request
07161-606X45	stainless steel A4	70	bright	M6	45	10	4	22	27	3	5	2,38	on request
07161-606X50	stainless steel A4	70	bright	M6	50	10	4	27	32	3	5	2,38	on request
07161-606X60	stainless steel A4	70	bright	M6	60	10	4	37	42	3	5	2,38	on request
07161-608X10	stainless steel A4	70	bright	M8	10	13	5	0	6,25	4	6	2,88	on request
07161-608X12	stainless steel A4	70	bright	M8	12	13	5	3,2	7	4	6	2,88	on request
07161-608X16	stainless steel A4	70	bright	M8	16	13	5	3,2	7	4	6	2,88	on request
07161-608X20	stainless steel A4	70	bright	M8	20	13	5	3,2	7	4	6	2,88	on request
07161-608X25	stainless steel A4	70	bright	M8	25	13	5	3,2	7	4	6	2,88	on request
07161-608X30	stainless steel A4	70	bright	M8	30	13	5	3,2	7	4	6	2,88	on request
07161-608X35	stainless steel A4	70	bright	M8	35	13	5	6,75	13	4	6	2,88	on request
07161-608X40	stainless steel A4	70	bright	M8	40	13	5	11,75	18	4	6	2,88	on request
07161-608X45	stainless steel A4	70	bright	M8	45	13	5	16,75	23	4	6	2,88	on request
07161-608X50	stainless steel A4	70	bright	M8	50	13	5	21,75	28	4	6	2,88	on request
07161-608X60	stainless steel A4	70	bright	M8	60	13	5	31,75	38	4	6	2,88	on request
07161-608X70	stainless steel A4	70	bright	M8	70	13	5	41,75	48	4	6	2,88	on request
07161-610X16	stainless steel A4	70	bright	M10	16	16	6,5	3,5	8	5	8	3,35	on request
07161-610X20	stainless steel A4	70	bright	M10	20	16	6,5	3,5	8	5	8	3,35	on request
07161-610X25	stainless steel A4	70	bright	M10	25	16	6,5	3,5	8	5	8	3,35	on request
07161-610X30	stainless steel A4	70	bright	M10	30	16	6,5	3,5	8	5	8	3,35	on request
07161-610X35	stainless steel A4	70	bright	M10	35	16	6,5	3,5	8	5	8	3,35	on request
07161-610X40	stainless steel A4	70	bright	M10	40	16	6,5	6,5	14	5	8	3,35	on request
07161-610X45	stainless steel A4	70	bright	M10	45	16	6,5	11,5	19	5	8	3,35	on request
07161-610X50	stainless steel A4	70	bright	M10	50	16	6,5	16,5	24	5	8	3,35	on request
07161-610X60	stainless steel A4	70	bright	M10	60	16	6,5	26,5	34	5	8	3,35	on request
07161-610X70	stainless steel A4	70	bright	M10	70	16	6,5	36,5	44	5	8	3,35	on request
07161-612X20	stainless steel A4	70	bright	M12	20	18	7,5	4,2	9,5	6	10	3,85	on request
07161-612X25	stainless steel A4	70	bright	M12	25	18	7,5	4,2	9,5	6	10	3,85	on request
07161-612X30	stainless steel A4	70	bright	M12	30	18	7,5	4,2	9,5	6	10	3,85	on request
07161-612X35	stainless steel A4	70	bright	M12	35	18	7,5	4,2	9,5	6	10	3,85	on request
07161-612X40	stainless steel A4	70	bright	M12	40	18	7,5	4,2	9,5	6	10	3,85	on request
07161-612X45	stainless steel A4	70	bright	M12	45	18	7,5	6,5	15	6	10	3,85	on request
07161-612X50	stainless steel A4	70	bright	M12	50	18	7,5	11,5	20	6	10	3,85	on request
07161-612X70	stainless steel A4	70	bright	M12	70	18	7,5	31,5	40	6	10	3,85	on request

Socket head screws with low head DIN 6912, steel

More information

Drawings

Socket head screws with low head DIN 6912, steel

Item selection/filter

Order No.	Main material	Grade	Surface finish body	D	L	DK	K	Ls min.	Lg max.	D1	SW	T	Price
07161-04X10	steel	8.8	bright (black)	M4	10	7	2,8	1,4	3,5	2	3	1,48	on request
07161-04X12	steel	8.8	bright (black)	M4	12	7	2,8	1,4	3,5	2	3	1,48	on request
07161-04X16	steel	8.8	bright (black)	M4	16	7	2,8	1,4	3,5	2	3	1,48	on request
07161-04X20	steel	8.8	bright (black)	M4	20	7	2,8	2,5	6	2	3	1,48	on request
07161-04X25	steel	8.8	bright (black)	M4	25	7	2,8	7,5	11	2	3	1,48	on request
07161-05X10	steel	8.8	bright (black)	M5	10	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-05X12	steel	8.8	bright (black)	M5	12	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-05X16	steel	8.8	bright (black)	M5	16	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-05X20	steel	8.8	bright (black)	M5	20	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-05X25	steel	8.8	bright (black)	M5	25	8,5	3,5	5	9	2,5	4	1,88	on request
07161-05X30	steel	8.8	bright (black)	M5	30	8,5	3,5	10	14	2,5	4	1,88	on request
07161-06X10	steel	8.8	bright (black)	M6	10	10	4	2,5	5,5	3	5	2,38	on request
07161-06X12	steel	8.8	bright (black)	M6	12	10	4	2,5	5,5	3	5	2,38	on request
07161-06X16	steel	8.8	bright (black)	M6	16	10	4	2,5	5,5	3	5	2,38	on request
07161-06X20	steel	8.8	bright (black)	M6	20	10	4	2,5	5,5	3	5	2,38	on request
07161-06X25	steel	8.8	bright (black)	M6	25	10	4	2,5	5,5	3	5	2,38	on request
07161-06X30	steel	8.8	bright (black)	M6	30	10	4	7	12	3	5	2,38	on request
07161-06X35	steel	8.8	bright (black)	M6	35	10	4	12	17	3	5	2,38	on request
07161-06X40	steel	8.8	bright (black)	M6	40	10	4	17	22	3	5	2,38	on request
07161-06X45	steel	8.8	bright (black)	M6	45	10	4	22	27	3	5	2,38	on request
07161-06X50	steel	8.8	bright (black)	M6	50	10	4	27	32	3	5	2,38	on request
07161-06X60	steel	8.8	bright (black)	M6	60	10	4	37	42	3	5	2,38	on request
07161-08X10	steel	8.8	bright (black)	M8	10	13	5	0	6,25	4	6	2,88	on request
07161-08X12	steel	8.8	bright (black)	M8	12	13	5	3,2	7	4	6	2,88	on request
07161-08X16	steel	8.8	bright (black)	M8	16	13	5	3,2	7	4	6	2,88	on request
07161-08X20	steel	8.8	bright (black)	M8	20	13	5	3,2	7	4	6	2,88	on request
07161-08X25	steel	8.8	bright (black)	M8	25	13	5	3,2	7	4	6	2,88	on request
07161-08X30	steel	8.8	bright (black)	M8	30	13	5	3,2	7	4	6	2,88	on request
07161-08X35	steel	8.8	bright (black)	M8	35	13	5	6,75	13	4	6	2,88	on request
07161-08X40	steel	8.8	bright (black)	M8	40	13	5	11,75	18	4	6	2,88	on request
07161-08X45	steel	8.8	bright (black)	M8	45	13	5	16,75	23	4	6	2,88	on request
07161-08X50	steel	8.8	bright (black)	M8	50	13	5	21,75	28	4	6	2,88	on request
07161-08X60	steel	8.8	bright (black)	M8	60	13	5	31,75	38	4	6	2,88	on request
07161-08X70	steel	8.8	bright (black)	M8	70	13	5	41,75	48	4	6	2,88	on request
07161-08X80	steel	8.8	bright (black)	M8	80	13	5	51,75	58	4	6	2,88	on request
07161-10X16	steel	8.8	bright (black)	M10	16	16	6,5	3,5	8	5	8	3,35	on request
07161-10X20	steel	8.8	bright (black)	M10	20	16	6,5	3,5	8	5	8	3,35	on request
07161-10X25	steel	8.8	bright (black)	M10	25	16	6,5	3,5	8	5	8	3,35	on request
07161-10X30	steel	8.8	bright (black)	M10	30	16	6,5	3,5	8	5	8	3,35	on request
07161-10X35	steel	8.8	bright (black)	M10	35	16	6,5	3,5	8	5	8	3,35	on request
07161-10X40	steel	8.8	bright (black)	M10	40	16	6,5	6,5	14	5	8	3,35	on request
07161-10X45	steel	8.8	bright (black)	M10	45	16	6,5	11,5	19	5	8	3,35	on request
07161-10X50	steel	8.8	bright (black)	M10	50	16	6,5	16,5	24	5	8	3,35	on request
07161-10X60	steel	8.8	bright (black)	M10	60	16	6,5	26,5	34	5	8	3,35	on request
07161-10X70	steel	8.8	bright (black)	M10	70	16	6,5	36,5	44	5	8	3,35	on request
07161-10X80	steel	8.8	bright (black)	M10	80	16	6,5	46,5	54	5	8	3,35	on request
07161-10X90	steel	8.8	bright (black)	M10	90	16	6,5	56,5	64	5	8	3,35	on request
07161-10X100	steel	8.8	bright (black)	M10	100	16	6,5	66,5	65	5	8	3,35	on request
07161-12X20	steel	8.8	bright (black)	M12	20	18	7,5	4,2	9,5	6	10	3,85	on request
07161-12X25	steel	8.8	bright (black)	M12	25	18	7,5	4,2	9,5	6	10	3,85	on request
07161-12X30	steel	8.8	bright (black)	M12	30	18	7,5	4,2	9,5	6	10	3,85	on request
07161-12X35	steel	8.8	bright (black)	M12	35	18	7,5	4,2	9,5	6	10	3,85	on request
07161-12X40	steel	8.8	bright (black)	M12	40	18	7,5	4,2	9,5	6	10	3,85	on request
07161-12X45	steel	8.8	bright (black)	M12	45	18	7,5	6,5	15	6	10	3,85	on request
07161-12X50	steel	8.8	bright (black)	M12	50	18	7,5	11,5	20	6	10	3,85	on request
07161-12X60	steel	8.8	bright (black)	M12	60	18	7,5	21,5	30	6	10	3,85	on request
07161-12X70	steel	8.8	bright (black)	M12	70	18	7,5	31,5	40	6	10	3,85	on request
07161-12X80	steel	8.8	bright (black)	M12	80	18	7,5	41,5	50	6	10	3,85	on request
07161-12X90	steel	8.8	bright (black)	M12	90	18	7,5	51,5	60	6	10	3,85	on request
07161-12X100	steel	8.8	bright (black)	M12	100	18	7,5	61,5	70	6	10	3,85	on request
07161-12X110	steel	8.8	bright (black)	M12	110	18	7,5	71,5	80	6	10	3,85	on request
07161-12X120	steel	8.8	bright (black)	M12	120	18	7,5	81,5	90	6	10	3,85	on request
07161-16X30	steel	8.8	bright (black)	M16	30	24	10	5	11	8	14	5,35	on request
07161-16X35	steel	8.8	bright (black)	M16	35	24	10	5	11	8	14	5,35	on request
07161-16X40	steel	8.8	bright (black)	M16	40	24	10	5	11	8	14	5,35	on request
07161-16X45	steel	8.8	bright (black)	M16	45	24	10	5	11	8	14	5,35	on request
07161-16X50	steel	8.8	bright (black)	M16	50	24	10	5	11	8	14	5,35	on request
07161-16X60	steel	8.8	bright (black)	M16	60	24	10	12	22	8	14	5,35	on request
07161-16X70	steel	8.8	bright (black)	M16	70	24	10	22	32	8	14	5,35	on request
07161-16X80	steel	8.8	bright (black)	M16	80	24	10	32	42	8	14	5,35	on request
07161-16X90	steel	8.8	bright (black)	M16	90	24	10	42	52	8	14	5,35	on request
07161-16X100	steel	8.8	bright (black)	M16	100	24	10	52	62	8	14	5,35	on request
07161-16X110	steel	8.8	bright (black)	M16	110	24	10	62	72	8	14	5,35	on request
07161-16X120	steel	8.8	bright (black)	M16	120	24	10	72	82	8	14	5,35	on request
07161-20X40	steel	8.8	bright (black)	M20	40	30	12	6,5	14	10	17	6,32	on request
07161-20X45	steel	8.8	bright (black)	M20	45	30	12	6,5	14	10	17	6,32	on request
07161-20X50	steel	8.8	bright (black)	M20	50	30	12	6,5	14	10	17	6,32	on request
07161-20X60	steel	8.8	bright (black)	M20	60	30	12	6,5	14	10	17	6,32	on request
07161-20X70	steel	8.8	bright (black)	M20	70	30	12	11,5	24	10	17	6,32	on request
07161-20X80	steel	8.8	bright (black)	M20	80	30	12	21,5	34	10	17	6,32	on request
07161-20X90	steel	8.8	bright (black)	M20	90	30	12	31,5	44	10	17	6,32	on request
07161-20X100	steel	8.8	bright (black)	M20	100	30	12	41,5	54	10	17	6,32	on request
07161-20X110	steel	8.8	bright (black)	M20	110	30	12	51,5	64	10	17	6,32	on request
07161-20X120	steel	8.8	bright (black)	M20	120	30	12	61,5	74	10	17	6,32	on request
07161-404X10	steel	8.8	galvanised	M4	10	7	2,8	1,4	3,5	2	3	1,48	on request
07161-404X12	steel	8.8	galvanised	M4	12	7	2,8	1,4	3,5	2	3	1,48	on request
07161-404X16	steel	8.8	galvanised	M4	16	7	2,8	1,4	3,5	2	3	1,48	on request
07161-404X20	steel	8.8	galvanised	M4	20	7	2,8	2,5	6	2	3	1,48	on request
07161-404X25	steel	8.8	galvanised	M4	25	7	2,8	7,5	11	2	3	1,48	on request
07161-405X10	steel	8.8	galvanised	M5	10	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-405X12	steel	8.8	galvanised	M5	12	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-405X16	steel	8.8	galvanised	M5	16	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-405X20	steel	8.8	galvanised	M5	20	8,5	3,5	1,8	4,2	2,5	4	1,88	on request
07161-405X25	steel	8.8	galvanised	M5	25	8,5	3,5	5	9	2,5	4	1,88	on request
07161-405X30	steel	8.8	galvanised	M5	30	8,5	3,5	10	14	2,5	4	1,88	on request
07161-406X10	steel	8.8	galvanised	M6	10	10	4	2,5	5,5	3	5	2,38	on request
07161-406X12	steel	8.8	galvanised	M6	12	10	4	2,5	5,5	3	5	2,38	on request
07161-406X16	steel	8.8	galvanised	M6	16	10	4	2,5	5,5	3	5	2,38	on request
07161-406X20	steel	8.8	galvanised	M6	20	10	4	2,5	5,5	3	5	2,38	on request
07161-406X25	steel	8.8	galvanised	M6	25	10	4	2,5	5,5	3	5	2,38	on request
07161-406X30	steel	8.8	galvanised	M6	30	10	4	7	12	3	5	2,38	on request
07161-406X35	steel	8.8	galvanised	M6	35	10	4	12	17	3	5	2,38	on request
07161-406X40	steel	8.8	galvanised	M6	40	10	4	17	22	3	5	2,38	on request
07161-406X45	steel	8.8	galvanised	M6	45	10	4	22	27	3	5	2,38	on request
07161-406X50	steel	8.8	galvanised	M6	50	10	4	27	32	3	5	2,38	on request
07161-406X60	steel	8.8	galvanised	M6	60	10	4	37	42	3	5	2,38	on request
07161-408X10	steel	8.8	galvanised	M8	10	13	5	0	6,25	4	6	2,88	on request
07161-408X12	steel	8.8	galvanised	M8	12	13	5	3,2	7	4	6	2,88	on request
07161-408X16	steel	8.8	galvanised	M8	16	13	5	3,2	7	4	6	2,88	on request
07161-408X20	steel	8.8	galvanised	M8	20	13	5	3,2	7	4	6	2,88	on request
07161-408X25	steel	8.8	galvanised	M8	25	13	5	3,2	7	4	6	2,88	on request
07161-408X30	steel	8.8	galvanised	M8	30	13	5	3,2	7	4	6	2,88	on request
07161-408X35	steel	8.8	galvanised	M8	35	13	5	6,75	13	4	6	2,88	on request
07161-408X40	steel	8.8	galvanised	M8	40	13	5	11,75	18	4	6	2,88	on request
07161-408X45	steel	8.8	galvanised	M8	45	13	5	16,75	23	4	6	2,88	on request
07161-408X50	steel	8.8	galvanised	M8	50	13	5	21,75	28	4	6	2,88	on request
07161-408X60	steel	8.8	galvanised	M8	60	13	5	31,75	38	4	6	2,88	on request
07161-408X70	steel	8.8	galvanised	M8	70	13	5	41,75	48	4	6	2,88	on request
07161-408X80	steel	8.8	galvanised	M8	80	13	5	51,75	58	4	6	2,88	on request
07161-410X20	steel	8.8	galvanised	M10	20	16	6,5	3,5	8	5	8	3,35	on request
07161-410X25	steel	8.8	galvanised	M10	25	16	6,5	3,5	8	5	8	3,35	on request
07161-410X30	steel	8.8	galvanised	M10	30	16	6,5	3,5	8	5	8	3,35	on request
07161-410X35	steel	8.8	galvanised	M10	35	16	6,5	3,5	8	5	8	3,35	on request
07161-410X40	steel	8.8	galvanised	M10	40	16	6,5	6,5	14	5	8	3,35	on request
07161-410X45	steel	8.8	galvanised	M10	45	16	6,5	11,5	19	5	8	3,35	on request
07161-410X50	steel	8.8	galvanised	M10	50	16	6,5	16,5	24	5	8	3,35	on request
07161-410X60	steel	8.8	galvanised	M10	60	16	6,5	26,5	34	5	8	3,35	on request
07161-410X70	steel	8.8	galvanised	M10	70	16	6,5	36,5	44	5	8	3,35	on request
07161-410X80	steel	8.8	galvanised	M10	80	16	6,5	46,5	54	5	8	3,35	on request
07161-410X90	steel	8.8	galvanised	M10	90	16	6,5	56,5	64	5	8	3,35	on request
07161-410X100	steel	8.8	galvanised	M10	100	16	6,5	66,5	74	5	8	3,35	on request
07161-412X20	steel	8.8	galvanised	M12	20	18	7,5	4,2	9,5	6	10	3,85	on request
07161-412X25	steel	8.8	galvanised	M12	25	18	7,5	4,2	9,5	6	10	3,85	on request
07161-412X30	steel	8.8	galvanised	M12	30	18	7,5	4,2	9,5	6	10	3,85	on request
07161-412X35	steel	8.8	galvanised	M12	35	18	7,5	4,2	9,5	6	10	3,85	on request
07161-412X40	steel	8.8	galvanised	M12	40	18	7,5	4,2	9,5	6	10	3,85	on request
07161-412X45	steel	8.8	galvanised	M12	45	18	7,5	6,5	15	6	10	3,85	on request
07161-412X50	steel	8.8	galvanised	M12	50	18	7,5	11,5	20	6	10	3,85	on request
07161-412X60	steel	8.8	galvanised	M12	60	18	7,5	21,5	30	6	10	3,85	on request
07161-412X70	steel	8.8	galvanised	M12	70	18	7,5	31,5	40	6	10	3,85	on request
07161-412X80	steel	8.8	galvanised	M12	80	18	7,5	41,5	50	6	10	3,85	on request
07161-412X90	steel	8.8	galvanised	M12	90	18	7,5	51,5	60	6	10	3,85	on request
07161-412X100	steel	8.8	galvanised	M12	100	18	7,5	61,5	70	6	10	3,85	on request
07161-412X110	steel	8.8	galvanised	M12	110	18	7,5	71,5	80	6	10	3,85	on request
07161-412X120	steel	8.8	galvanised	M12	120	18	7,5	81,5	90	6	10	3,85	on request
07161-416X30	steel	8.8	galvanised	M16	30	24	10	5	11	8	14	5,35	on request
07161-416X35	steel	8.8	galvanised	M16	35	24	10	5	11	8	14	5,35	on request
07161-416X40	steel	8.8	galvanised	M16	40	24	10	5	11	8	14	5,35	on request
07161-416X45	steel	8.8	galvanised	M16	45	24	10	5	11	8	14	5,35	on request
07161-416X50	steel	8.8	galvanised	M16	50	24	10	5	11	8	14	5,35	on request
07161-416X60	steel	8.8	galvanised	M16	60	24	10	12	22	8	14	5,35	on request
07161-416X70	steel	8.8	galvanised	M16	70	24	10	22	32	8	14	5,35	on request
07161-416X80	steel	8.8	galvanised	M16	80	24	10	32	42	8	14	5,35	on request
07161-416X90	steel	8.8	galvanised	M16	90	24	10	42	52	8	14	5,35	on request
07161-416X100	steel	8.8	galvanised	M16	100	24	10	52	62	8	14	5,35	on request
07161-416X110	steel	8.8	galvanised	M16	110	24	10	62	72	8	14	5,35	on request
07161-416X120	steel	8.8	galvanised	M16	120	24	10	72	82	8	14	5,35	on request
07161-420X40	steel	8.8	galvanised	M20	40	30	12	6,5	14	10	17	6,32	on request
07161-420X45	steel	8.8	galvanised	M20	45	30	12	6,5	14	10	17	6,32	on request
07161-420X50	steel	8.8	galvanised	M20	50	30	12	6,5	14	10	17	6,32	on request
07161-420X60	steel	8.8	galvanised	M20	60	30	12	6,5	14	10	17	6,32	on request
07161-420X70	steel	8.8	galvanised	M20	70	30	12	11,5	24	10	17	6,32	on request
07161-420X80	steel	8.8	galvanised	M20	80	30	12	21,5	34	10	17	6,32	on request
07161-420X90	steel	8.8	galvanised	M20	90	30	12	31,5	44	10	17	6,32	on request
07161-420X100	steel	8.8	galvanised	M20	100	30	12	41,5	54	10	17	6,32	on request
07161-420X110	steel	8.8	galvanised	M20	110	30	12	51,5	64	10	17	6,32	on request
07161-420X120	steel	8.8	galvanised	M20	120	30	12	61,5	74	10	17	6,32	on request
07161-306X10	steel	10.9	bright (black)	M6	10	10	4	2,5	5,5	3	5	2,38	on request
07161-306X12	steel	10.9	bright (black)	M6	12	10	4	2,5	5,5	3	5	2,38	on request
07161-306X16	steel	10.9	bright (black)	M6	16	10	4	2,5	5,5	3	5	2,38	on request
07161-306X20	steel	10.9	bright (black)	M6	20	10	4	2,5	5,5	3	5	2,38	on request
07161-306X25	steel	10.9	bright (black)	M6	25	10	4	2,5	5,5	3	5	2,38	on request
07161-306X30	steel	10.9	bright (black)	M6	30	10	4	7	12	3	5	2,38	on request
07161-306X35	steel	10.9	bright (black)	M6	35	10	4	12	17	3	5	2,38	on request
07161-306X40	steel	10.9	bright (black)	M6	40	10	4	17	22	3	5	2,38	on request
07161-308X16	steel	10.9	bright (black)	M8	16	13	5	3,2	7	4	6	2,88	on request
07161-308X20	steel	10.9	bright (black)	M8	20	13	5	3,2	7	4	6	2,88	on request
07161-308X25	steel	10.9	bright (black)	M8	25	13	5	3,2	7	4	6	2,88	on request
07161-308X30	steel	10.9	bright (black)	M8	30	13	5	3,2	7	4	6	2,88	on request
07161-308X35	steel	10.9	bright (black)	M8	35	13	5	6,75	13	4	6	2,88	on request
07161-308X40	steel	10.9	bright (black)	M8	40	13	5	11,75	18	4	6	2,88	on request
07161-308X45	steel	10.9	bright (black)	M8	45	13	5	16,75	23	4	6	2,88	on request
07161-308X50	steel	10.9	bright (black)	M8	50	13	5	21,75	28	4	6	2,88	on request
07161-308X60	steel	10.9	bright (black)	M8	60	13	5	31,75	38	4	6	2,88	on request
07161-310X20	steel	10.9	bright (black)	M10	20	16	6,5	3,5	8	5	8	3,35	on request
07161-310X25	steel	10.9	bright (black)	M10	25	16	6,5	3,5	8	5	8	3,35	on request
07161-310X30	steel	10.9	bright (black)	M10	30	16	6,5	3,5	8	5	8	3,35	on request
07161-310X35	steel	10.9	bright (black)	M10	35	16	6,5	3,5	8	5	8	3,35	on request
07161-310X40	steel	10.9	bright (black)	M10	40	16	6,5	6,5	14	5	8	3,35	on request
07161-310X45	steel	10.9	bright (black)	M10	45	16	6,5	11,5	19	5	8	3,35	on request
07161-310X50	steel	10.9	bright (black)	M10	50	16	6,5	16,5	24	5	8	3,35	on request
07161-310X60	steel	10.9	bright (black)	M10	60	16	6,5	26,5	34	5	8	3,35	on request
07161-312X25	steel	10.9	bright (black)	M12	25	18	7,5	4,2	9,5	6	10	3,85	on request
07161-312X30	steel	10.9	bright (black)	M12	30	18	7,5	4,2	9,5	6	10	3,85	on request
07161-312X35	steel	10.9	bright (black)	M12	35	18	7,5	4,2	9,5	6	10	3,85	on request
07161-312X40	steel	10.9	bright (black)	M12	40	18	7,5	4,2	9,5	6	10	3,85	on request
07161-312X45	steel	10.9	bright (black)	M12	45	18	7,5	6,5	15	6	10	3,85	on request
07161-312X50	steel	10.9	bright (black)	M12	50	18	7,5	11,5	20	6	10	3,85	on request
07161-312X60	steel	10.9	bright (black)	M12	60	18	7,5	21,5	30	6	10	3,85	on request
07161-316X30	steel	10.9	bright (black)	M16	30	24	10	5	11	8	14	5,35	on request
07161-316X35	steel	10.9	bright (black)	M16	35	24	10	5	11	8	14	5,35	on request
07161-316X40	steel	10.9	bright (black)	M16	40	24	10	5	11	8	14	5,35	on request
07161-316X45	steel	10.9	bright (black)	M16	45	24	10	5	11	8	14	5,35	on request
07161-316X50	steel	10.9	bright (black)	M16	50	24	10	5	11	8	14	5,35	on request
07161-316X60	steel	10.9	bright (black)	M16	60	24	10	12	22	8	14	5,35	on request
07161-316X70	steel	10.9	bright (black)	M16	70	24	10	22	32	8	14	5,35	on request
07161-316X80	steel	10.9	bright (black)	M16	80	24	10	32	42	8	14	5,35	on request
07161-320X40	steel	10.9	bright (black)	M20	40	30	12	6,5	14	10	17	6,32	on request
07161-320X50	steel	10.9	bright (black)	M20	50	30	12	6,5	14	10	17	6,32	on request
07161-320X60	steel	10.9	bright (black)	M20	60	30	12	6,5	14	10	17	6,32	on request
07161-320X70	steel	10.9	bright (black)	M20	70	30	12	11,5	24	10	17	6,32	on request
