Grub screws with hex socket and pin DIN EN ISO 4028
 07167

Grub screws with hex socket and pin DIN EN ISO 4028

 go back

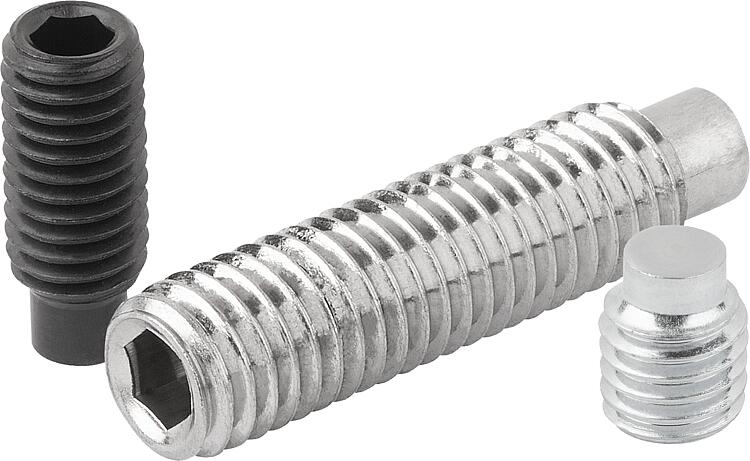

Item description/product images
DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 45 H, bright (blackened) or electro zinc-plated.
Stainless steel A2 or stainless steel A4, bright.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07167 Grub screws with hex socket and pin DIN EN ISO 4028 223 kB
Grades 124 kB
Overview of standards for fasteners 687 kB

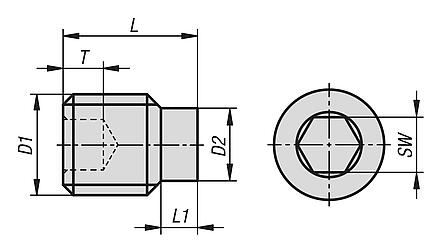

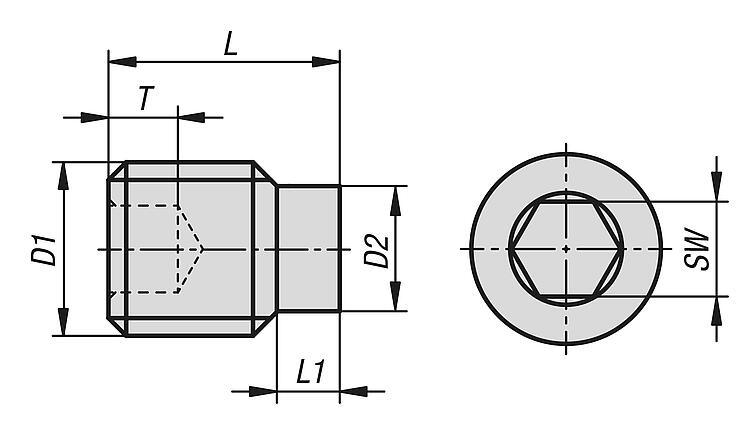

Drawings

Grub screws with hex socket and pin DIN EN ISO 4028

Overview of items (compressed)

 Item selection/filter
Order No.Material

Surface finish
body		GradeD1D2LL1
max.		TSWCADAcc.PriceOrder
07167-103X4stainless steel A2bright70M32411,21,5 on request
07167-103X5stainless steel A2bright70M32511,21,5 on request
07167-103X6stainless steel A2bright70M3261,7521,5 on request
07167-103X8stainless steel A2bright70M3281,7521,5 on request
07167-103X10stainless steel A2bright70M32101,7521,5 on request
07167-103X12stainless steel A2bright70M32121,7521,5 on request
07167-104X5stainless steel A2bright70M42,551,251,52 on request
07167-104X6stainless steel A2bright70M42,561,251,52 on request
07167-104X8stainless steel A2bright70M42,582,252,52 on request
07167-104X10stainless steel A2bright70M42,5102,252,52 on request
07167-104X12stainless steel A2bright70M42,5122,252,52 on request
07167-104X16stainless steel A2bright70M42,5162,252,52 on request
07167-104X20stainless steel A2bright70M42,5202,252,52 on request
07167-104X25stainless steel A2bright70M42,5252,252,52 on request
07167-105X5stainless steel A2bright70M53,551,522,5 on request
07167-105X6stainless steel A2bright70M53,561,522,5 on request
07167-105X8stainless steel A2bright70M53,582,7532,5 on request
07167-105X10stainless steel A2bright70M53,5102,7532,5 on request
07167-105X12stainless steel A2bright70M53,5122,7532,5 on request
07167-105X16stainless steel A2bright70M53,5162,7532,5 on request
07167-105X20stainless steel A2bright70M53,5202,7532,5 on request
07167-105X25stainless steel A2bright70M53,5252,7532,5 on request
07167-105X30stainless steel A2bright70M53,5302,7532,5 on request
07167-105X35stainless steel A2bright70M53,5352,7532,5 on request
07167-106X6stainless steel A2bright70M6461,7523 on request
07167-106X8stainless steel A2bright70M6481,7523 on request
07167-106X10stainless steel A2bright70M64103,253,53 on request
07167-106X12stainless steel A2bright70M64123,253,53 on request
07167-106X16stainless steel A2bright70M64163,253,53 on request
07167-106X20stainless steel A2bright70M64203,253,53 on request
07167-106X25stainless steel A2bright70M64253,253,53 on request
07167-106X30stainless steel A2bright70M64303,253,53 on request
07167-106X35stainless steel A2bright70M64353,253,53 on request
07167-106X40stainless steel A2bright70M64403,253,53 on request
07167-108X8stainless steel A2bright70M85,582,2534 on request
07167-108X10stainless steel A2bright70M85,5102,2534 on request
07167-108X12stainless steel A2bright70M85,5124,354 on request
07167-108X16stainless steel A2bright70M85,5164,354 on request
07167-108X20stainless steel A2bright70M85,5204,354 on request
07167-108X25stainless steel A2bright70M85,5254,354 on request
07167-108X30stainless steel A2bright70M85,5304,354 on request
07167-108X35stainless steel A2bright70M85,5354,354 on request
07167-108X40stainless steel A2bright70M85,5404,354 on request
07167-110X10stainless steel A2bright70M107102,7545 on request
07167-110X12stainless steel A2bright70M107122,7545 on request
07167-110X16stainless steel A2bright70M107165,365 on request
07167-110X20stainless steel A2bright70M107205,365 on request
07167-110X25stainless steel A2bright70M107255,365 on request
07167-110X30stainless steel A2bright70M107305,365 on request
07167-110X35stainless steel A2bright70M107355,365 on request
07167-110X40stainless steel A2bright70M107405,365 on request
07167-110X50stainless steel A2bright70M107505,365 on request
07167-112X12stainless steel A2bright70M128,5123,254,86 on request
07167-112X16stainless steel A2bright70M128,5163,254,86 on request
07167-112X20stainless steel A2bright70M128,5206,386 on request
07167-112X25stainless steel A2bright70M128,5256,386 on request
07167-112X30stainless steel A2bright70M128,5306,386 on request
07167-112X35stainless steel A2bright70M128,5356,386 on request
07167-112X40stainless steel A2bright70M128,5406,386 on request
07167-112X50stainless steel A2bright70M128,5506,386 on request
07167-112X60stainless steel A2bright70M128,5606,386 on request
07167-604X6stainless steel A4bright70M42,561,251,52 on request
07167-604X8stainless steel A4bright70M42,582,252,52 on request
07167-604X10stainless steel A4bright70M42,5102,252,52 on request
07167-604X12stainless steel A4bright70M42,5122,252,52 on request
07167-605X6stainless steel A4bright70M53,561,522,5 on request
07167-605X8stainless steel A4bright70M53,582,7532,5 on request
07167-605X10stainless steel A4bright70M53,5102,7532,5 on request
07167-605X12stainless steel A4bright70M53,5122,7532,5 on request
07167-605X16stainless steel A4bright70M53,5162,7532,5 on request
07167-605X20stainless steel A4bright70M53,5202,7532,5 on request
07167-605X25stainless steel A4bright70M53,5252,7532,5 on request
07167-606X6stainless steel A4bright70M6461,7523 on request
07167-606X8stainless steel A4bright70M6481,7523 on request
07167-606X10stainless steel A4bright70M64103,253,53 on request
07167-606X12stainless steel A4bright70M64123,253,53 on request
07167-606X16stainless steel A4bright70M64163,253,53 on request
07167-606X20stainless steel A4bright70M64203,253,53 on request
07167-606X25stainless steel A4bright70M64253,253,53 on request
07167-606X30stainless steel A4bright70M64303,253,53 on request
07167-608X8stainless steel A4bright70M85,582,2534 on request
07167-608X10stainless steel A4bright70M85,5102,2534 on request
07167-608X12stainless steel A4bright70M85,5124,354 on request
07167-608X16stainless steel A4bright70M85,5164,354 on request
07167-608X20stainless steel A4bright70M85,5204,354 on request
07167-608X25stainless steel A4bright70M85,5254,354 on request
07167-608X30stainless steel A4bright70M85,5304,354 on request
07167-610X10stainless steel A4bright70M107102,7545 on request
07167-610X12stainless steel A4bright70M107122,7545 on request
07167-610X16stainless steel A4bright70M107165,365 on request
07167-610X20stainless steel A4bright70M107205,365 on request
07167-610X25stainless steel A4bright70M107255,365 on request
07167-610X30stainless steel A4bright70M107305,365 on request
07167-612X12stainless steel A4bright70M128,5123,254,86 on request
07167-612X16stainless steel A4bright70M128,5166,386 on request
07167-612X20stainless steel A4bright70M128,5206,386 on request
07167-612X25stainless steel A4bright70M128,5256,386 on request
07167-612X30stainless steel A4bright70M128,5306,386 on request
07167-03X6steelbright (black)45 HM3261,7521,5 on request
07167-03X8steelbright (black)45 HM3281,7521,5 on request
07167-03X10steelbright (black)45 HM32101,7521,5 on request
07167-03X12steelbright (black)45 HM32121,7521,5 on request
07167-03X16steelbright (black)45 HM32161,7521,5 on request
07167-03X20steelbright (black)45 HM32201,7521,5 on request
07167-04X4steelbright (black)45 HM42,541,251,52 on request
07167-04X5steelbright (black)45 HM42,551,251,52 on request
07167-04X6steelbright (black)45 HM42,561,251,52 on request
07167-04X8steelbright (black)45 HM42,582,252,52 on request
07167-04X10steelbright (black)45 HM42,5102,252,52 on request
07167-04X12steelbright (black)45 HM42,5122,252,52 on request
07167-04X16steelbright (black)45 HM42,5162,252,52 on request
07167-04X20steelbright (black)45 HM42,5202,252,52 on request
07167-04X25steelbright (black)45 HM42,5252,252,52 on request
07167-04X30steelbright (black)45 HM42,5302,252,52 on request
07167-05X5steelbright (black)45 HM53,551,522,5 on request
07167-05X6steelbright (black)45 HM53,561,522,5 on request
07167-05X8steelbright (black)45 HM53,582,7532,5 on request
07167-05X10steelbright (black)45 HM53,5102,7532,5 on request
07167-05X12steelbright (black)45 HM53,5122,7532,5 on request
07167-05X16steelbright (black)45 HM53,5162,7532,5 on request
07167-05X20steelbright (black)45 HM53,5202,7532,5 on request
07167-05X25steelbright (black)45 HM53,5252,7532,5 on request
07167-05X30steelbright (black)45 HM53,5302,7532,5 on request
07167-06X6steelbright (black)45 HM6461,7523 on request
07167-06X8steelbright (black)45 HM6481,7523 on request
07167-06X10steelbright (black)45 HM64103,253,53 on request
07167-06X12steelbright (black)45 HM64123,253,53 on request
07167-06X16steelbright (black)45 HM64163,253,53 on request
07167-06X20steelbright (black)45 HM64203,253,53 on request
07167-06X25steelbright (black)45 HM64253,253,53 on request
07167-06X30steelbright (black)45 HM64303,253,53 on request
07167-06X35steelbright (black)45 HM64353,253,53 on request
07167-06X40steelbright (black)45 HM64403,253,53 on request
07167-06X50steelbright (black)45 HM64503,253,53 on request
07167-08X8steelbright (black)45 HM85,582,2534 on request
07167-08X10steelbright (black)45 HM85,5102,2534 on request
07167-08X12steelbright (black)45 HM85,5124,354 on request
07167-08X16steelbright (black)45 HM85,5164,354 on request
07167-08X20steelbright (black)45 HM85,5204,354 on request
07167-08X25steelbright (black)45 HM85,5254,354 on request
07167-08X30steelbright (black)45 HM85,5304,354 on request
07167-08X35steelbright (black)45 HM85,5354,354 on request
07167-08X40steelbright (black)45 HM85,5404,354 on request
07167-08X50steelbright (black)45 HM85,5504,354 on request
07167-10X8steelbright (black)45 HM10782,7545 on request
07167-10X10steelbright (black)45 HM107102,7545 on request
07167-10X12steelbright (black)45 HM107122,7545 on request
07167-10X16steelbright (black)45 HM107165,365 on request
07167-10X20steelbright (black)45 HM107205,365 on request
07167-10X25steelbright (black)45 HM107255,365 on request
07167-10X30steelbright (black)45 HM107305,365 on request
07167-10X35steelbright (black)45 HM107355,365 on request
07167-10X40steelbright (black)45 HM107405,365 on request
07167-10X50steelbright (black)45 HM107505,365 on request
07167-10X60steelbright (black)45 HM107605,365 on request
07167-12X12steelbright (black)45 HM128,5123,254,86 on request
07167-12X16steelbright (black)45 HM128,5163,254,86 on request
07167-12X20steelbright (black)45 HM128,5206,386 on request
07167-12X25steelbright (black)45 HM128,5256,386 on request
07167-12X30steelbright (black)45 HM128,5306,386 on request
07167-12X35steelbright (black)45 HM128,5356,386 on request
07167-12X40steelbright (black)45 HM128,5406,386 on request
07167-12X50steelbright (black)45 HM128,5506,386 on request
07167-12X60steelbright (black)45 HM128,5606,386 on request
07167-12X70steelbright (black)45 HM128,5706,386 on request
07167-16X16steelbright (black)45 HM1612164,36,48 on request
07167-16X20steelbright (black)45 HM1612208,36108 on request
07167-16X25steelbright (black)45 HM1612258,36108 on request
07167-16X30steelbright (black)45 HM1612308,36108 on request
07167-16X35steelbright (black)45 HM1612358,36108 on request
07167-16X40steelbright (black)45 HM1612408,36108 on request
07167-16X50steelbright (black)45 HM1612508,36108 on request
07167-16X60steelbright (black)45 HM1612608,36108 on request
07167-16X70steelbright (black)45 HM1612708,36108 on request
07167-20X25steelbright (black)45 HM2015255,3810 on request
07167-20X30steelbright (black)45 HM20153010,361210 on request
07167-20X35steelbright (black)45 HM20153510,361210 on request
07167-20X40steelbright (black)45 HM20154010,361210 on request
07167-20X50steelbright (black)45 HM20155010,361210 on request
07167-20X60steelbright (black)45 HM20156010,361210 on request
07167-20X70steelbright (black)45 HM20157010,361210 on request
07167-403X6steelgalvanised45 HM3261,7521,5 on request
07167-403X8steelgalvanised45 HM3281,7521,5 on request
07167-403X10steelgalvanised45 HM32101,7521,5 on request
07167-403X12steelgalvanised45 HM32121,7521,5 on request
07167-403X16steelgalvanised45 HM32161,7521,5 on request
07167-403X20steelgalvanised45 HM32201,7521,5 on request
07167-404X4steelgalvanised45 HM42,541,251,52 on request
07167-404X5steelgalvanised45 HM42,551,251,52 on request
07167-404X6steelgalvanised45 HM42,561,251,52 on request
07167-404X8steelgalvanised45 HM42,582,252,52 on request
07167-404X10steelgalvanised45 HM42,5102,252,52 on request
07167-404X12steelgalvanised45 HM42,5122,252,52 on request
07167-404X16steelgalvanised45 HM42,5162,252,52 on request
07167-404X20steelgalvanised45 HM42,5202,252,52 on request
07167-404X25steelgalvanised45 HM42,5252,252,52 on request
07167-404X30steelgalvanised45 HM42,5302,252,52 on request
07167-405X5steelgalvanised45 HM53,551,522,5 on request
07167-405X6steelgalvanised45 HM53,561,522,5 on request
07167-405X8steelgalvanised45 HM53,582,7532,5 on request
07167-405X10steelgalvanised45 HM53,5102,7532,5 on request
07167-405X12steelgalvanised45 HM53,5122,7532,5 on request
07167-405X16steelgalvanised45 HM53,5162,7532,5 on request
07167-405X20steelgalvanised45 HM53,5202,7532,5 on request
07167-405X25steelgalvanised45 HM53,5252,7532,5 on request
07167-405X30steelgalvanised45 HM53,5302,7532,5 on request
07167-406X6steelgalvanised45 HM6461,7523 on request
07167-406X8steelgalvanised45 HM6481,7523 on request
07167-406X10steelgalvanised45 HM64103,253,53 on request
07167-406X12steelgalvanised45 HM64123,253,53 on request
07167-406X16steelgalvanised45 HM64163,253,53 on request
07167-406X20steelgalvanised45 HM64203,253,53 on request
07167-406X25steelgalvanised45 HM64253,253,53 on request
07167-406X30steelgalvanised45 HM64303,253,53 on request
07167-406X35steelgalvanised45 HM64353,253,53 on request
07167-406X40steelgalvanised45 HM64403,253,53 on request
07167-406X50steelgalvanised45 HM64503,253,53 on request
07167-408X8steelgalvanised45 HM85,582,2534 on request
07167-408X10steelgalvanised45 HM85,5102,2534 on request
07167-408X12steelgalvanised45 HM85,5124,354 on request
07167-408X16steelgalvanised45 HM85,5164,354 on request
07167-408X20steelgalvanised45 HM85,5204,354 on request
07167-408X25steelgalvanised45 HM85,5254,354 on request
07167-408X30steelgalvanised45 HM85,5304,354 on request
07167-408X35steelgalvanised45 HM85,5354,354 on request
07167-408X40steelgalvanised45 HM85,5404,354 on request
07167-408X50steelgalvanised45 HM85,5504,354 on request
07167-410X8steelgalvanised45 HM10782,7545 on request
07167-410X12steelgalvanised45 HM107122,7545 on request
07167-410X16steelgalvanised45 HM107165,365 on request
07167-410X20steelgalvanised45 HM107205,365 on request
07167-410X25steelgalvanised45 HM107255,365 on request
07167-410X30steelgalvanised45 HM107305,365 on request
07167-410X35steelgalvanised45 HM107355,365 on request
07167-410X40steelgalvanised45 HM107405,365 on request
07167-410X50steelgalvanised45 HM107505,365 on request
07167-410X60steelgalvanised45 HM107605,365 on request
07167-412X12steelgalvanised45 HM128,5123,254,86 on request
07167-412X16steelgalvanised45 HM128,5163,254,86 on request
07167-412X20steelgalvanised45 HM128,5206,386 on request
07167-412X25steelgalvanised45 HM128,5256,386 on request
07167-412X30steelgalvanised45 HM128,5306,386 on request
07167-412X35steelgalvanised45 HM128,5356,386 on request
07167-412X40steelgalvanised45 HM128,5406,386 on request
07167-412X50steelgalvanised45 HM128,5506,386 on request
07167-412X60steelgalvanised45 HM128,5606,386 on request
07167-412X70steelgalvanised45 HM128,5706,386 on request
07167-416X16steelgalvanised45 HM1612164,36,48 on request
07167-416X20steelgalvanised45 HM1612204,36,48 on request
07167-416X25steelgalvanised45 HM1612258,36108 on request
07167-416X30steelgalvanised45 HM1612308,36108 on request
07167-416X35steelgalvanised45 HM1612358,36108 on request
07167-416X40steelgalvanised45 HM1612408,36108 on request
07167-416X50steelgalvanised45 HM1612508,36108 on request
07167-416X60steelgalvanised45 HM1612608,36108 on request
07167-416X70steelgalvanised45 HM1612708,36108 on request
07167-420X25steelgalvanised45 HM2015255,3810 on request
07167-420X35steelgalvanised45 HM20153510,361210 on request
07167-420X40steelgalvanised45 HM20154010,361210 on request
07167-420X50steelgalvanised45 HM20155010,361210 on request
07167-420X60steelgalvanised45 HM20156010,361210 on request
07167-420X70steelgalvanised45 HM20157010,361210 on request
My norelemE-mailPassword
Forgotten password?
I'm new to this site
Shopping cart
Number of items: 0
Amount: 0.00  €
shopping cart
欢迎扫描二维码
咨询诺瑞朗官方客服微信
China
苏ICP备20011289号-1 苏公网安备32058502011222 Sitemap Print Recommended Top
Copyright © 2024 norelem. All rights reserved. Tel. +49 71 45/206-44 to 45 · Fax +49 71 45/206-83
