07170-11Hexagon head bolts, stainless steel with seal washer in... |
go back |
|

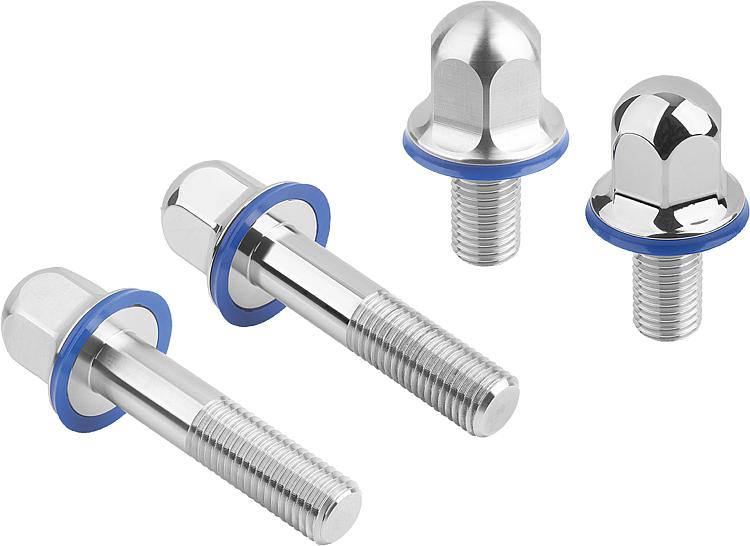

Item description/product images |
|
|
DescriptionProduct description:The Hygienic DESIGN fastening system was specially developed for use in food-processing facilities. Special emphasis has been placed on the cleaning-optimised geometry and a surface finish of Ra ≤ 0.8 µm. Quick and easy product installation due to a pre-mounted sealing washer rounds off the overall package.Material:Hex head bolt: stainless steel 1.4404.
Sealing washer: EU10/2011 and FDA conform thermoplastic (POM). Version:Hex head bolt: Polished or unpolished stainless steel.
Sealing washer: RAL5002 - Ultramarine blue (POM).Note:The contact face for the sealing ring must ideally be flat and perpendicular to the threaded hole and have a surface finish of Ra ≤ 0.8 µm.
Sealing ring is unsuitable for acidic cleaning (pH < 4) and oxidising agents.Temperature range:-20 °C to +100 °C (POM).Advantages:Pre-installed, exchangable seal washer.
Foodstuff conform material.
Cleaning optimised geometry.On request:Special versions.Attention:The suitability of the Hygienic DESIGN fasters for the respective application must be checked by the user. Depending on the loads and external influences (temperature, cleaning media, product media), the sealing washer should be inspected regularly and replaced if necessary.Accessory:Sealing washer 07301.

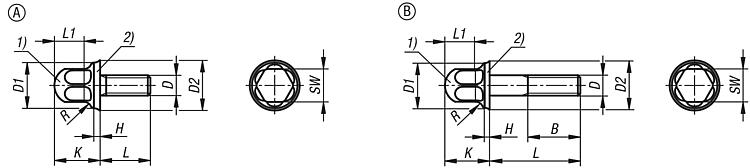

Stainless steel hex nut with sealing washer 07280-11.Threaded version:M4 - M16.Supplied withHex head bolt incl. seal washer.Drawing reference:1) Hex head bolt
2) Sealing washer DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Form definition | Surface finish
body | B | D
| D1 | D2 | H | K | L | L1 | R | SW | CAD | Acc. | Price | Order |
|---|
| 07170-11-1104X08 | A | without shaft | polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 8 | 5,9 | 3 | 7 |  | | on request | | | 07170-11-1104X10 | A | without shaft | polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 10 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1104X12 | A | without shaft | polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 12 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1104X16 | A | without shaft | polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 16 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1104X20 | A | without shaft | polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 20 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1104X25 | B | with shaft | polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 25 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1104X30 | B | with shaft | polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 30 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1104X35 | B | with shaft | polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 35 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1104X40 | B | with shaft | polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 40 | 5,9 | 3 | 7 | | | on request | | | 07170-11-1105X10 | A | without shaft | polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 10 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X12 | A | without shaft | polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 12 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X16 | A | without shaft | polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 16 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X20 | A | without shaft | polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 20 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X25 | B | with shaft | polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 25 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X30 | B | with shaft | polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 30 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X35 | B | with shaft | polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 35 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X40 | B | with shaft | polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 40 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X45 | B | with shaft | polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 45 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1105X50 | B | with shaft | polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 50 | 7,4 | 3 | 8 | | | on request | | | 07170-11-1106X12 | A | without shaft | polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 12 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X16 | A | without shaft | polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 16 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X20 | A | without shaft | polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 20 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X25 | A | without shaft | polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 25 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X30 | B | with shaft | polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 30 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X35 | B | with shaft | polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 35 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X40 | B | with shaft | polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 40 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X45 | B | with shaft | polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 45 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X50 | B | with shaft | polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 50 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1106X60 | B | with shaft | polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 60 | 9,1 | 3 | 10 | | | on request | | | 07170-11-1108X16 | A | without shaft | polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 16 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X20 | A | without shaft | polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 20 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X25 | A | without shaft | polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 25 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X30 | A | without shaft | polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 30 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X35 | A | without shaft | polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 35 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X40 | B | with shaft | polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 40 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X45 | B | with shaft | polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 45 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X50 | B | with shaft | polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 50 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X60 | B | with shaft | polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 60 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X70 | B | with shaft | polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 70 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1108X80 | B | with shaft | polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 80 | 11,7 | 3 | 13 | | | on request | | | 07170-11-1110X20 | A | without shaft | polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 20 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X25 | A | without shaft | polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 25 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X30 | A | without shaft | polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 30 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X35 | A | without shaft | polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 35 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X40 | A | without shaft | polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 40 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X45 | B | with shaft | polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 45 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X50 | B | with shaft | polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 50 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X60 | B | with shaft | polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 60 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X70 | B | with shaft | polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 70 | 15 | 4 | 16 | | | on request | | | 07170-11-1110X80 | B | with shaft | polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 80 | 15 | 4 | 16 | | | on request | | | 07170-11-1112X25 | A | without shaft | polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 25 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X30 | A | without shaft | polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 30 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X35 | A | without shaft | polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 35 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X40 | A | without shaft | polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 40 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X45 | A | without shaft | polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 45 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X50 | B | with shaft | polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 50 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X60 | B | with shaft | polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 60 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X70 | B | with shaft | polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 70 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1112X80 | B | with shaft | polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 80 | 16,1 | 5 | 18 | | | on request | | | 07170-11-1116X30 | A | without shaft | polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 30 | 21,8 | 6 | 24 | | | on request | | | 07170-11-1116X35 | A | without shaft | polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 35 | 21,8 | 6 | 24 | | | on request | | | 07170-11-1116X40 | A | without shaft | polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 40 | 21,8 | 6 | 24 | | | on request | | | 07170-11-1116X45 | A | without shaft | polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 45 | 21,8 | 6 | 24 | | | on request | | | 07170-11-1116X50 | A | without shaft | polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 50 | 21,8 | 6 | 24 | | | on request | | | 07170-11-1116X60 | A | without shaft | polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 60 | 21,8 | 6 | 24 | | | on request | | | 07170-11-1116X70 | B | with shaft | polished | 38 | M16 | 35 | 37,25 | 3 | 32,1 | 70 | 21,8 | 6 | 24 | | | on request | | | 07170-11-1116X80 | B | with shaft | polished | 38 | M16 | 35 | 37,25 | 3 | 32,1 | 80 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2104X08 | A | without shaft | not polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 8 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X10 | A | without shaft | not polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 10 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X12 | A | without shaft | not polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 12 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X16 | A | without shaft | not polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 16 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X20 | A | without shaft | not polished | - | M4 | 10 | 11,25 | 2 | 11,1 | 20 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X25 | B | with shaft | not polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 25 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X30 | B | with shaft | not polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 30 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X35 | B | with shaft | not polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 35 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2104X40 | B | with shaft | not polished | 14 | M4 | 10 | 11,25 | 2 | 11,1 | 40 | 5,9 | 3 | 7 | | | on request | | | 07170-11-2105X10 | A | without shaft | not polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 10 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X12 | A | without shaft | not polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 12 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X16 | A | without shaft | not polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 16 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X20 | A | without shaft | not polished | - | M5 | 12 | 13,25 | 2 | 13,1 | 20 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X25 | B | with shaft | not polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 25 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X30 | B | with shaft | not polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 30 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X35 | B | with shaft | not polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 35 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X40 | B | with shaft | not polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 40 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X45 | B | with shaft | not polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 45 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2105X50 | B | with shaft | not polished | 16 | M5 | 12 | 13,25 | 2 | 13,1 | 50 | 7,4 | 3 | 8 | | | on request | | | 07170-11-2106X12 | A | without shaft | not polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 12 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X16 | A | without shaft | not polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 16 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X20 | A | without shaft | not polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 20 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X25 | A | without shaft | not polished | - | M6 | 14 | 15,74 | 2,5 | 15,1 | 25 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X30 | B | with shaft | not polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 30 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X35 | B | with shaft | not polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 35 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X40 | B | with shaft | not polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 40 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X45 | B | with shaft | not polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 45 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X50 | B | with shaft | not polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 50 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2106X60 | B | with shaft | not polished | 18 | M6 | 14 | 15,74 | 2,5 | 15,1 | 60 | 9,1 | 3 | 10 | | | on request | | | 07170-11-2108X16 | A | without shaft | not polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 16 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X20 | A | without shaft | not polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 20 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X25 | A | without shaft | not polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 25 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X30 | A | without shaft | not polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 30 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X35 | A | without shaft | not polished | - | M8 | 18 | 19,74 | 2,5 | 18,1 | 35 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X40 | B | with shaft | not polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 40 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X45 | B | with shaft | not polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 45 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X50 | B | with shaft | not polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 50 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X60 | B | with shaft | not polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 60 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X70 | B | with shaft | not polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 70 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2108X80 | B | with shaft | not polished | 22 | M8 | 18 | 19,74 | 2,5 | 18,1 | 80 | 11,7 | 3 | 13 | | | on request | | | 07170-11-2110X20 | A | without shaft | not polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 20 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X25 | A | without shaft | not polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 25 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X30 | A | without shaft | not polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 30 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X35 | A | without shaft | not polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 35 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X40 | A | without shaft | not polished | - | M10 | 22 | 23,74 | 2,5 | 22,1 | 40 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X45 | B | with shaft | not polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 45 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X50 | B | with shaft | not polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 50 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X60 | B | with shaft | not polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 60 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X70 | B | with shaft | not polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 70 | 15 | 4 | 16 | | | on request | | | 07170-11-2110X80 | B | with shaft | not polished | 26 | M10 | 22 | 23,74 | 2,5 | 22,1 | 80 | 15 | 4 | 16 | | | on request | | | 07170-11-2112X25 | A | without shaft | not polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 25 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X30 | A | without shaft | not polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 30 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X35 | A | without shaft | not polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 35 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X40 | A | without shaft | not polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 40 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X45 | A | without shaft | not polished | - | M12 | 26 | 28,25 | 3 | 25,1 | 45 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X50 | B | with shaft | not polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 50 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X60 | B | with shaft | not polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 60 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X70 | B | with shaft | not polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 70 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2112X80 | B | with shaft | not polished | 30 | M12 | 26 | 28,25 | 3 | 25,1 | 80 | 16,1 | 5 | 18 | | | on request | | | 07170-11-2116X30 | A | without shaft | not polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 30 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2116X35 | A | without shaft | not polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 35 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2116X40 | A | without shaft | not polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 40 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2116X45 | A | without shaft | not polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 45 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2116X50 | A | without shaft | not polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 50 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2116X60 | A | without shaft | not polished | - | M16 | 35 | 37,25 | 3 | 32,1 | 60 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2116X70 | B | with shaft | not polished | 38 | M16 | 35 | 37,25 | 3 | 32,1 | 70 | 21,8 | 6 | 24 | | | on request | | | 07170-11-2116X80 | B | with shaft | not polished | 38 | M16 | 35 | 37,25 | 3 | 32,1 | 80 | 21,8 | 6 | 24 | | | on request | |
