07170-15Hexagon head bolts, stainless steel in Hygienic DESIGN |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4404Version:Polished.Note:The surface of the hexagon head bolt is polished and, with regard to design optimised for the use in hygienic environments.
The bolt head is convex on the top face and the collar has a conical formed top surface.
Instead of troublesome embossing or indentations, the bolt head is smooth with a surface finish of Ra 0.8 µm.
Dirt and residue from products or cleaners seldom adheres and easy cleaning is ensured.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | | | -
- 7
- 9,2
- 10,5
- 13
- 16,8
- 20,6
- 23,8
- 29,7
- 36
| | | | | | | | Reset |
|---|

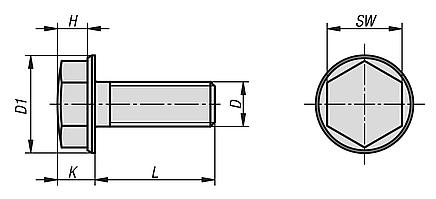

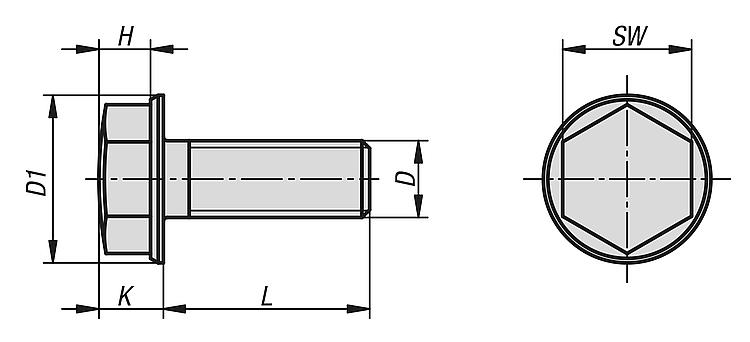

| Order No. | Main
material | D | D1
| H | K | L | SW | CAD | Acc. | Price | Order |
|---|
| 07170-15-03X06 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 6 | 5,5 |  | | on request | | | 07170-15-03X08 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 8 | 5,5 | | | on request | | | 07170-15-03X10 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 10 | 5,5 | | | on request | | | 07170-15-03X12 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 12 | 5,5 | | | on request | | | 07170-15-03X16 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 16 | 5,5 | | | on request | | | 07170-15-03X20 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 20 | 5,5 | | | on request | | | 07170-15-03X25 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 25 | 5,5 | | | on request | | | 07170-15-03X30 | stainless steel A4 | M3 | 7 | 3 | 3,8 | 30 | 5,5 | | | on request | | | 07170-15-04X08 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 8 | 7 | | | on request | | | 07170-15-04X10 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 10 | 7 | | | on request | | | 07170-15-04X12 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 12 | 7 | | | on request | | | 07170-15-04X16 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 16 | 7 | | | on request | | | 07170-15-04X20 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 20 | 7 | | | on request | | | 07170-15-04X25 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 25 | 7 | | | on request | | | 07170-15-04X30 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 30 | 7 | | | on request | | | 07170-15-04X35 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 35 | 7 | | | on request | | | 07170-15-04X40 | stainless steel A4 | M4 | 9,2 | 3 | 4 | 40 | 7 | | | on request | | | 07170-15-05X10 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 10 | 8 | | | on request | | | 07170-15-05X12 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 12 | 8 | | | on request | | | 07170-15-05X16 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 16 | 8 | | | on request | | | 07170-15-05X20 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 20 | 8 | | | on request | | | 07170-15-05X25 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 25 | 8 | | | on request | | | 07170-15-05X30 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 30 | 8 | | | on request | | | 07170-15-05X35 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 35 | 8 | | | on request | | | 07170-15-05X40 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 40 | 8 | | | on request | | | 07170-15-05X45 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 45 | 8 | | | on request | | | 07170-15-05X50 | stainless steel A4 | M5 | 10,5 | 3,7 | 4,7 | 50 | 8 | | | on request | | | 07170-15-06X12 | stainless steel A4 | M6 | 13 | 4 | 5 | 12 | 10 | | | on request | | | 07170-15-06X16 | stainless steel A4 | M6 | 13 | 4 | 5 | 16 | 10 | | | on request | | | 07170-15-06X20 | stainless steel A4 | M6 | 13 | 4 | 5 | 20 | 10 | | | on request | | | 07170-15-06X25 | stainless steel A4 | M6 | 13 | 4 | 5 | 25 | 10 | | | on request | | | 07170-15-06X30 | stainless steel A4 | M6 | 13 | 4 | 5 | 30 | 10 | | | on request | | | 07170-15-06X35 | stainless steel A4 | M6 | 13 | 4 | 5 | 35 | 10 | | | on request | | | 07170-15-06X40 | stainless steel A4 | M6 | 13 | 4 | 5 | 40 | 10 | | | on request | | | 07170-15-06X45 | stainless steel A4 | M6 | 13 | 4 | 5 | 45 | 10 | | | on request | | | 07170-15-06X50 | stainless steel A4 | M6 | 13 | 4 | 5 | 50 | 10 | | | on request | | | 07170-15-06X60 | stainless steel A4 | M6 | 13 | 4 | 5 | 60 | 10 | | | on request | | | 07170-15-08X16 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 16 | 13 | | | on request | | | 07170-15-08X20 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 20 | 13 | | | on request | | | 07170-15-08X25 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 25 | 13 | | | on request | | | 07170-15-08X30 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 30 | 13 | | | on request | | | 07170-15-08X35 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 35 | 13 | | | on request | | | 07170-15-08X40 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 40 | 13 | | | on request | | | 07170-15-08X45 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 45 | 13 | | | on request | | | 07170-15-08X50 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 50 | 13 | | | on request | | | 07170-15-08X60 | stainless steel A4 | M8 | 16,8 | 5,5 | 6,5 | 60 | 13 | | | on request | | | 07170-15-10X20 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 20 | 16 | | | on request | | | 07170-15-10X25 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 25 | 16 | | | on request | | | 07170-15-10X30 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 30 | 16 | | | on request | | | 07170-15-10X35 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 35 | 16 | | | on request | | | 07170-15-10X40 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 40 | 16 | | | on request | | | 07170-15-10X45 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 45 | 16 | | | on request | | | 07170-15-10X50 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 50 | 16 | | | on request | | | 07170-15-10X60 | stainless steel A4 | M10 | 20,6 | 7,3 | 8,3 | 60 | 16 | | | on request | | | 07170-15-12X25 | stainless steel A4 | M12 | 23,8 | 8,6 | 10 | 25 | 18 | | | on request | | | 07170-15-12X30 | stainless steel A4 | M12 | 23,8 | 8,6 | 10 | 30 | 18 | | | on request | | | 07170-15-12X35 | stainless steel A4 | M12 | 23,8 | 8,6 | 10 | 35 | 18 | | | on request | | | 07170-15-12X40 | stainless steel A4 | M12 | 23,8 | 8,6 | 10 | 40 | 18 | | | on request | | | 07170-15-12X45 | stainless steel A4 | M12 | 23,8 | 8,6 | 10 | 45 | 18 | | | on request | | | 07170-15-12X50 | stainless steel A4 | M12 | 23,8 | 8,6 | 10 | 50 | 18 | | | on request | | | 07170-15-12X60 | stainless steel A4 | M12 | 23,8 | 8,6 | 10 | 60 | 18 | | | on request | | | 07170-15-16X30 | stainless steel A4 | M16 | 29,7 | 11,1 | 12,5 | 30 | 24 | | | on request | | | 07170-15-16X35 | stainless steel A4 | M16 | 29,7 | 11,1 | 12,5 | 35 | 24 | | | on request | | | 07170-15-16X40 | stainless steel A4 | M16 | 29,7 | 11,1 | 12,5 | 40 | 24 | | | on request | | | 07170-15-16X45 | stainless steel A4 | M16 | 29,7 | 11,1 | 12,5 | 45 | 24 | | | on request | | | 07170-15-16X50 | stainless steel A4 | M16 | 29,7 | 11,1 | 12,5 | 50 | 24 | | | on request | | | 07170-15-16X60 | stainless steel A4 | M16 | 29,7 | 11,1 | 12,5 | 60 | 24 | | | on request | | | 07170-15-20X40 | stainless steel A4 | M20 | 36 | 15 | 16,3 | 40 | 30 | | | on request | | | 07170-15-20X45 | stainless steel A4 | M20 | 36 | 15 | 16,3 | 45 | 30 | | | on request | | | 07170-15-20X50 | stainless steel A4 | M20 | 36 | 15 | 16,3 | 50 | 30 | | | on request | | | 07170-15-20X60 | stainless steel A4 | M20 | 36 | 15 | 16,3 | 60 | 30 | | | on request | |
