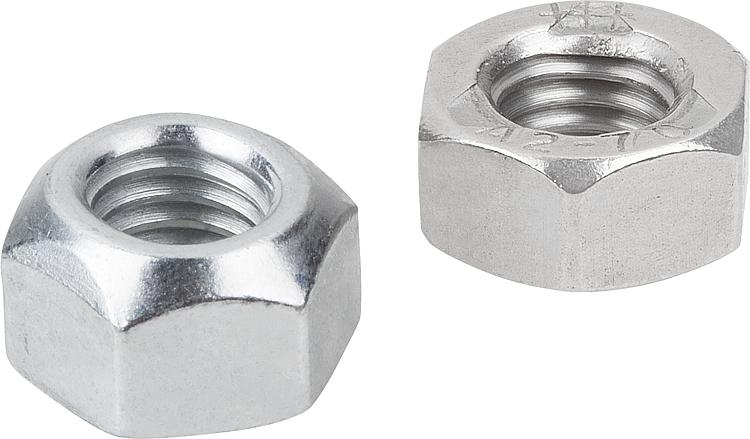

Item description/product images

DescriptionMaterial:Steel or stainless steel A2.Version:Electro zinc-plated steel.
Bright stainless steel.
Note:Hexagon nuts with thread lock DIN 980, Form V (all-metal nut, one piece).

The maximum nut height H max. is shown in the table.
The form and dimensions of the stainless steel versions are the same as for DIN 934 with additional crimping.

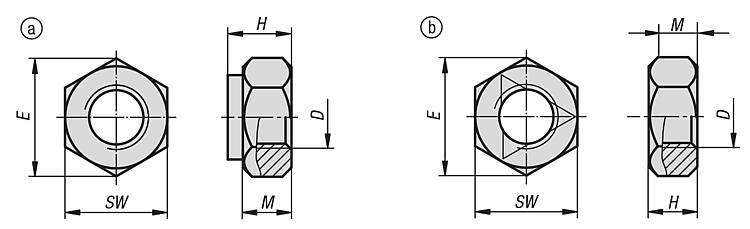

Drawing reference:
a) Steel
b) Stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 07215 Hexagon nuts with thread lock DIN 980 enhanced 160 kB
 Grades 124 kB
 Overview of standards for fasteners 687 kB

Drawings

Hexagon nuts with thread lock DIN 980 enhanced

Overview of items (compressed)

Item selection/filter


  •
  • steel
  • stainless steel A2

  •
  • 8
  • 10
  • 70

  •
  • M4
  • M5
  • M6
  • M8
  • M10
  • M12
  • M14
  • M16
  • M20
  • M24
  • M27
  • M30

  •
  • 7,66
  • 8,79
  • 11,05
  • 14,38
  • 18,9
  • 21,1
  • 23,9
  • 26,76
  • 32,95
  • 39,55
  • 45,2
  • 50,85
  • 35

  •
  • 4,2
  • 5,1
  • 6
  • 8
  • 10
  • 12
  • 14
  • 16
  • 20
  • 24
  • 27
  • 30
  • 3,2
  • 4
  • 5
  • 6,5
  • 11
  • 13
  • 19

  •
  • 2,2
  • 2,75
  • 3,3
  • 4,4
  • 5,5
  • 6,6
  • 7,7
  • 8,8
  • 11
  • 13,2
  • 14,8
  • 16,5

  •
  • 7
  • 8
  • 10
  • 13
  • 17
  • 19
  • 22
  • 24
  • 30
  • 36
  • 41
  • 46

Reset
Order No.Main
material
GradeD

EHMSWCADAcc.PriceOrder
07215-204steel8M47,664,22,27  on request
07215-205steel8M58,795,12,758  on request
07215-206steel8M611,0563,310  on request
07215-208steel8M814,3884,413  on request
07215-210steel8M1018,9105,517  on request
07215-212steel8M1221,1126,619  on request
07215-214steel8M1423,9147,722  on request
07215-216steel8M1626,76168,824  on request
07215-220steel8M2032,95201130  on request
07215-224steel8M2439,552413,236  on request
07215-227steel8M2745,22714,841  on request
07215-230steel8M3050,853016,546  on request
07215-308steel10M814,3884,413  on request
07215-310steel10M1018,9105,517  on request
07215-312steel10M1221,1126,619  on request
07215-314steel10M1423,9147,722  on request
07215-316steel10M1626,76168,824  on request
07215-320steel10M2032,95201130  on request
07215-324steel10M24352413,236  on request
07215-327steel10M2745,22714,841  on request
07215-330steel10M3050,853016,546  on request
07215-104stainless steel A270M47,663,22,27  on request
07215-105stainless steel A270M58,7942,758  on request
07215-106stainless steel A270M611,0553,310  on request
07215-108stainless steel A270M814,386,54,413  on request
07215-110stainless steel A270M1018,985,517  on request
07215-112stainless steel A270M1221,1106,619  on request
07215-114stainless steel A270M1423,9117,722  on request
07215-116stainless steel A270M1626,76138,824  on request
07215-120stainless steel A270M2032,95161130  on request
07215-124stainless steel A270M2439,551913,236  on request
