        Hexagon nuts with flange DIN 6923 / EN 1661 enhanced

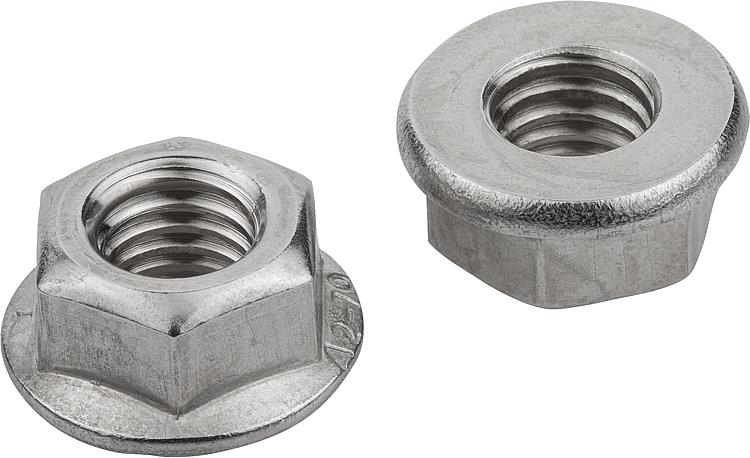

Item description/product images

DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 8, electro zinc-plated.
Stainless steel A2, bright.
Stainless steel A4, bright.Note:The maximum nut height H max. is shown in the table.
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07217 Hexagon nuts with flange DIN 6923 / EN 1661 enhanced

185 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

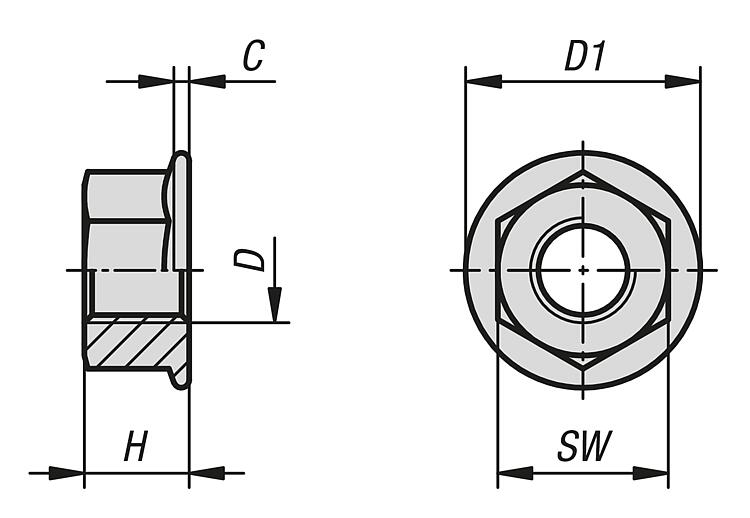

Drawings

Item selection/filter

Order No.	Main material	D	D1	C	H	SW	DIN	EN	Price
07217-204	steel	M4	10	0,9	4,65	7	-	-	on request
07217-205	steel	M5	11,8	1	5	8	-	-	on request
07217-206	steel	M6	14,2	1,1	6	10	-	-	on request
07217-208	steel	M8	17,9	1,2	8	13	-	-	on request
07217-210	steel	M10	21,8	1,5	10	15	-	-	on request
07217-212	steel	M12	26	1,8	12	18	-	-	on request
07217-216	steel	M16	34,5	2,4	16	24	-	-	on request
07217-220	steel	M20	42,8	3	20	30	-	-	on request
07217-104	stainless steel A2	M4	10	0,9	4,65	7	-	-	on request
07217-105	stainless steel A2	M5	11,8	1	5	8	-	-	on request
07217-106	stainless steel A2	M6	14,2	1,1	6	10	-	-	on request
07217-108	stainless steel A2	M8	17,9	1,2	8	13	-	-	on request
07217-110	stainless steel A2	M10	21,8	1,5	10	15	-	-	on request
07217-112	stainless steel A2	M12	26	1,8	12	18	-	-	on request
07217-605	stainless steel A4	M5	11,8	1	5	8	-	-	on request
07217-606	stainless steel A4	M6	14,2	1,1	6	10	-	-	on request
07217-608	stainless steel A4	M8	17,9	1,2	8	13	-	-	on request
07217-610	stainless steel A4	M10	21,8	1,5	10	15	-	-	on request
07217-612	stainless steel A4	M12	26	1,8	12	18	-	-	on request
