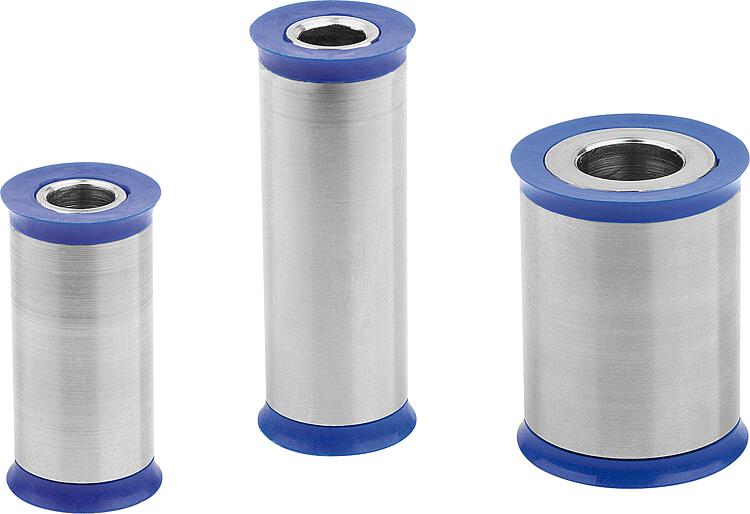

        Spacer sleeve, stainless steel with seal washer in Hygienic DESIGN

Item description/product images

DescriptionProduct description:The Hygienic DESIGN spacer sleeve was specially developed for use in food-processing facilities. Special emphasis has been placed on the cleaning-optimised geometry and a surface finish of Ra ≤ 0.8 µm. The sealing washer made from foodstuff conform plastic is exchangable.Material:

Spacer sleevestainless steel 1.4404.
Sealing washer: EU10/2011 and FDA conform thermoplastic (POM).

Version:Spacer sleeve: unpolished stainless steel.
Sealing washer: RAL5002 - Ultramarine blue (POM).Note:The contact face for the sealing washer must ideally be flat and perpendicular to the threaded hole and have a surface finish of Ra ≤ 0.8 µm.
Sealing washer is unsuitable for acidic cleaning (pH < 4) and oxidising agents.

The suitability of the Hygienic DESIGN spacer sleeves for the respective application must be checked by the user. Depending on the loads and external influences (temperature, cleaning media, product media), the sealing washer should be inspected regularly and replaced if necessary.Temperature range:-20 °C to +100 °C (POM).Advantages:Exchangable seal washer.
Foodstuff conform material.
Cleaning optimised geometry.Accessory:Sealing washer 07301.
Stainless steel hex head bolt with sealing washer 07170-11.

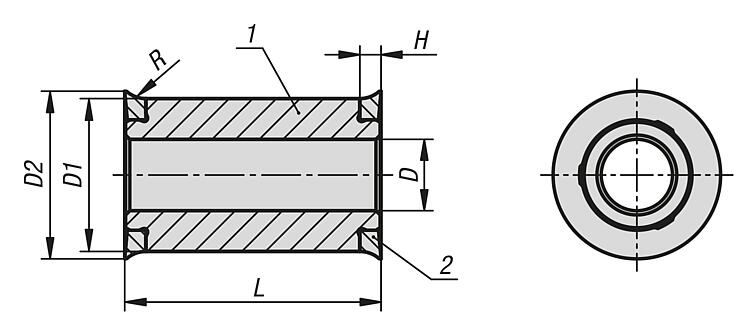

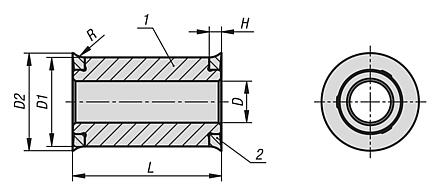

Stainless steel hex nut with sealing washer 07280-11.Supplied withSpacer sleeves incl. sealing washer.Drawing reference:

1) Spacer sleeve
2) Sealing washer

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07219 Spacer sleeve, stainless steel with seal washer in Hygienic DESIGN

192 kB

Drawings

Item selection/filter

Order No.	L	D	D1	D2	H	R	Price
07219-11106X30	30	6,4	14	15,74	2,5	3,5	on request
07219-11106X40	40	6,4	14	15,74	2,5	3,5	on request
07219-11106X50	50	6,4	14	15,74	2,5	3,5	on request
07219-11108X30	30	8,4	18	19,74	2,5	3,5	on request
07219-11108X40	40	8,4	18	19,74	2,5	3,5	on request
07219-11108X50	50	8,4	18	19,74	2,5	3,5	on request
07219-11110X30	30	10,5	22	23,74	2,5	3,5	on request
07219-11110X40	40	10,5	22	23,74	2,5	3,5	on request
07219-11110X50	50	10,5	22	23,74	2,5	3,5	on request
07219-11112X30	30	13	26	28,25	3	4	on request
07219-11112X40	40	13	26	28,25	3	4	on request
07219-11112X50	50	13	26	28,25	3	4	on request
