        Turnbuckle nuts, steel tube, closed form DIN 1478

Item description/product images

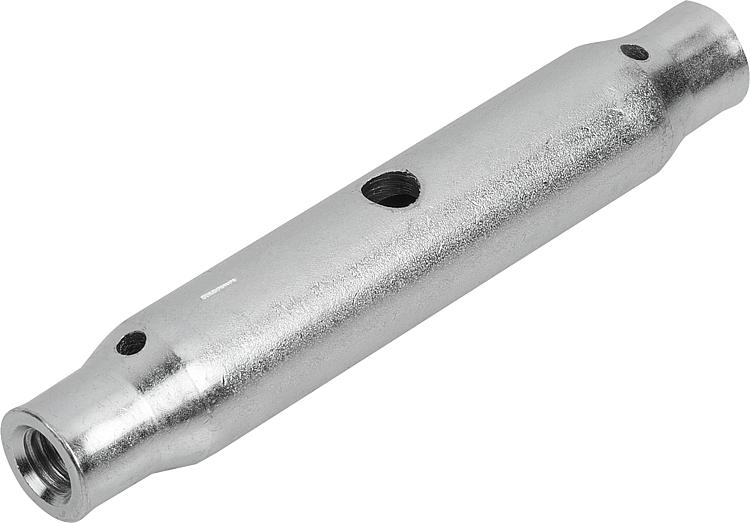

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:These steel tube turnbuckle nuts are closed form and have a RH thread one end and LH thread other end.

The turnbuckle nuts conform with the German BRL (A) and bear the Ü symbol (ÜZ – Certificate of conformity from a recognised certification authority).

The core Ø of the internal thread may be slightly larger than standard, this does not effect the function.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07221 Turnbuckle nuts steel tube, closed form DIN 1478

152 kB

Overview of standards for fasteners

687 kB

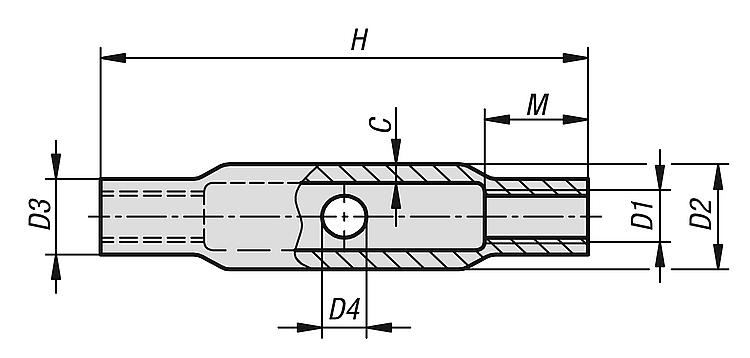

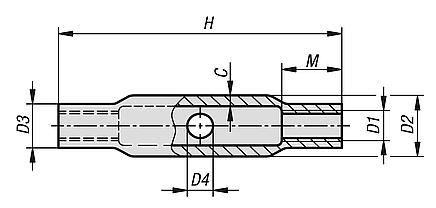

Drawings

Item selection/filter

	3,6 4 4,5 5 5,6 6,3	M8 M10 M12 M16 M20 M24 M30	17,2 21,3 25 30 33,7 42,4 51	12 15 18 22,5 27 32 38	8 10 12 16	110 125 170 200 255	10 12 15 20 24 29 36	10000 16000 24000 44000 69000 100000 158000				Reset
Order No.	C	D1	D2	D3	D4	H	M	Load capacity N	CAD	Acc.	Price	Order
07221-08	3,6	M8	17,2	12	8	110	10	10000			on request
07221-10	4	M10	21,3	15	8	125	12	16000			on request
07221-12	4	M12	25	18	10	125	15	24000			on request
07221-16	4,5	M16	30	22,5	10	170	20	44000			on request
07221-20	5	M20	33,7	27	12	200	24	69000			on request
07221-24	5,6	M24	42,4	32	12	255	29	100000			on request
07221-30	6,3	M30	51	38	16	255	36	158000			on request
