Item description/product images

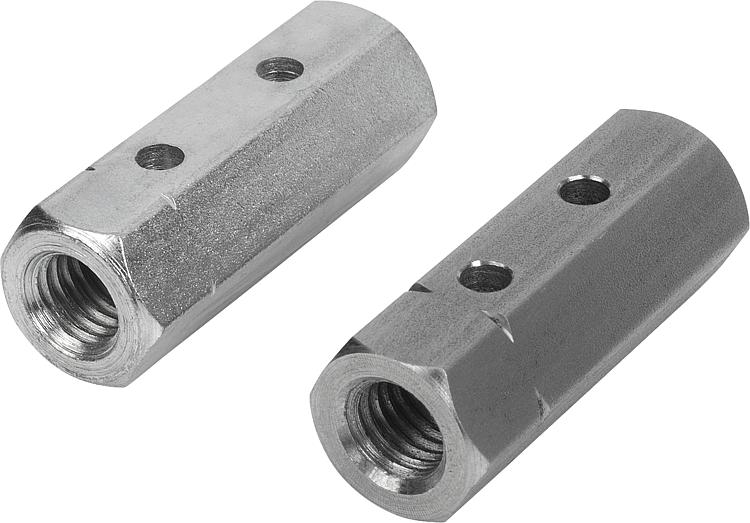

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Turnbuckle nuts with hexagon. RH thread one end LH thread other end.

The turnbuckle nuts correspond to the specifications of the German Construction Products List (BRL) A and bear the Ü symbol (ÜZ – Certificate of compliance awarded by a recognised certification provider).

The core Ø of the internal thread may be slightly larger, this does not affect the function.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 07222 Turnbuckle nuts hexagonal DIN 1479 236 kB
 Overview of standards for fasteners 687 kB

Drawings

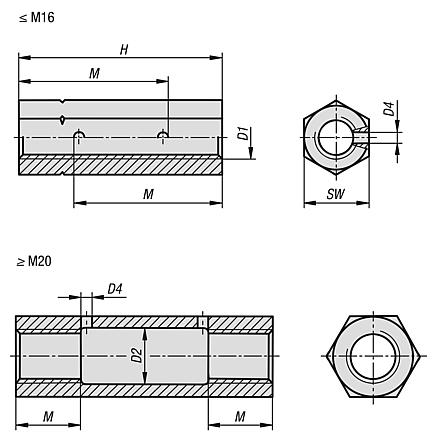

Turnbuckle nuts, hexagonal DIN 1479

Item selection/filter

Order No.D1D2D4HMSWLoad
capacity
N
CADAcc.PriceOrder
07222-06M6-43022,5103900 on request
07222-08M8-43525137200 on request
07222-10M10-445331711400 on request
07222-12M12-455401916500 on request
07222-16M16-475552430700 on request
07222-20M2021495243048000 on request
07222-24M24264115293669000 on request
07222-30M303241253646110000 on request
