        Hexagon nuts height 1.5xD, DIN 6330 enhanced

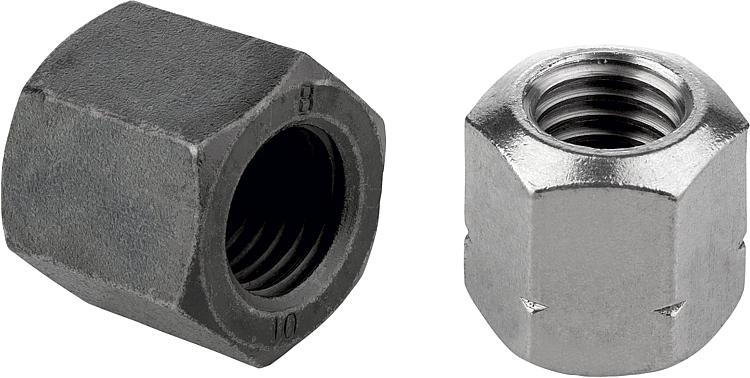

Item description/product images

DescriptionMaterial:Carbon steel or stainless steel A2.Version:Steel grade 10, bright (blackened).

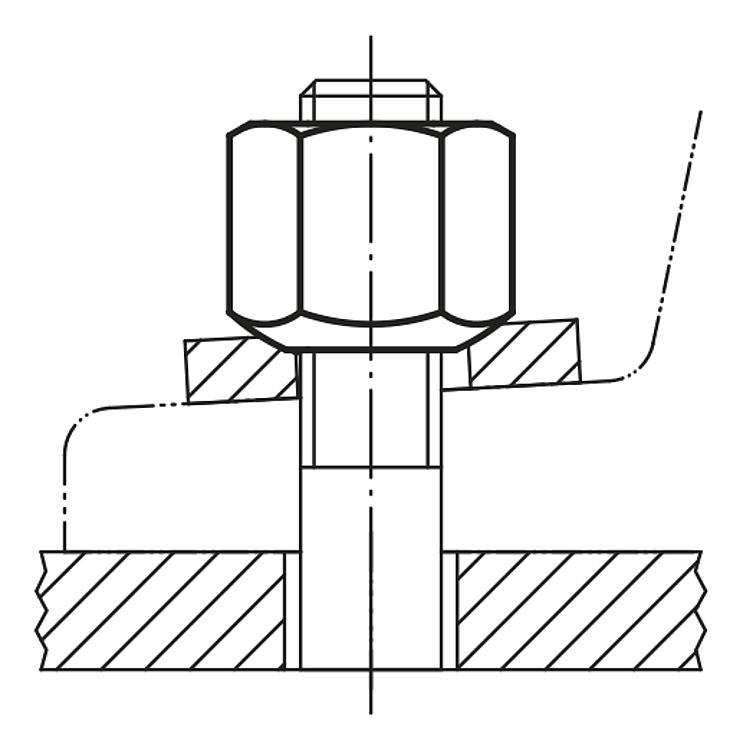

Stainless steel A2-70, brightNote:These nuts can be used with spherical washers 07420 Form D and G.Features:Form B: with spherical face one endSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07260 Hexagon nutsheight 1.5xD, DIN 6330 enhanced

225 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

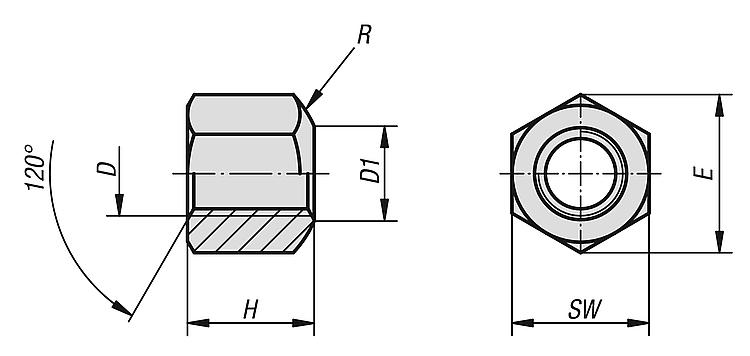

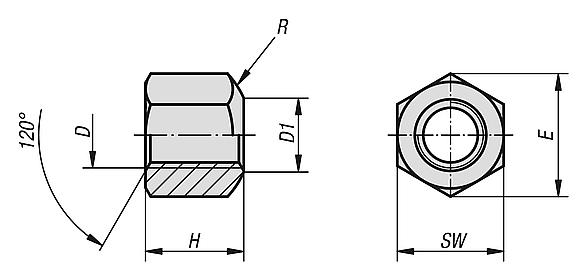

Drawings

Item selection/filter

Order No.	Main material	D	H = 1,5 x D	D1	SW	E	R	Price
07260-05	QT steel	M5	7,5	6,5	9	10,4	7	on request
07260-06	QT steel	M6	9	7	10	11,5	9	on request
07260-08	QT steel	M8	12	9	13	15	11	on request
07260-10	QT steel	M10	15	11,5	16	18,4	15	on request
07260-101	QT steel	M10	15	11,5	17	19,6	15	on request
07260-12	QT steel	M12	18	14	18	20,7	17	on request
07260-121	QT steel	M12	18	14	19	21,9	17	on request
07260-14	QT steel	M14	21	16	22	25,4	20	on request
07260-16	QT steel	M16	24	18	24	27,7	22	on request
07260-18	QT steel	M18	27	20	27	31,2	24,5	on request
07260-20	QT steel	M20	30	22	30	34,6	27	on request
07260-22	QT steel	M22	33	24	32	36,9	29	on request
07260-24	QT steel	M24	36	26	36	41,6	32	on request
07260-30	QT steel	M30	45	32	46	53,1	41	on request
07260-36	QT steel	M36	54	38	55	63,5	50	on request
07260-806	stainless steel A2	M6	9	7	10	11,5	9	on request
07260-808	stainless steel A2	M8	12	9	13	15	11	on request
07260-810	stainless steel A2	M10	15	11,5	16	18,4	15	on request
07260-811	stainless steel A2	M10	15	11,5	17	19,6	15	on request
07260-812	stainless steel A2	M12	18	14	18	20,7	17	on request
07260-816	stainless steel A2	M16	24	18	24	27,7	22	on request
07260-820	stainless steel A2	M20	30	22	30	34,6	27	on request
