        Hex cap nut, high style DIN 1587 steel or stainless steel

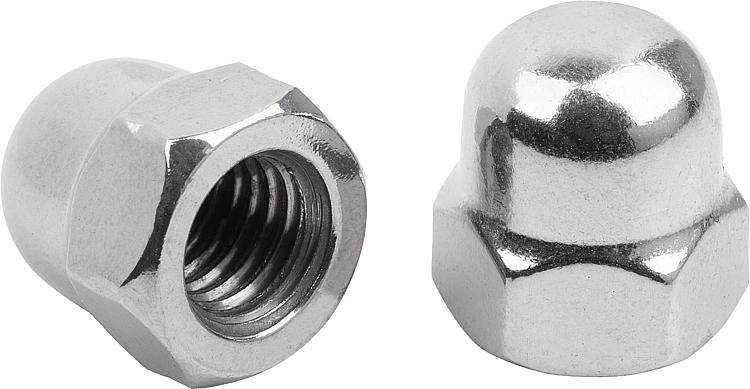

Item description/product images

DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 6, bright or electro zinc-plated
Stainless steel A2-70, bright
Stainless steel A4-70, brightNote:Cap nuts are mainly used for decorative screw connections. The cap nut covers and protects the thread end. They are also used to protect against sharp edges on machines, equipment, fitness equipment and wherever people or objects could be injured or damaged by an exposed thread end. Technical data:The design type, whether thread run-out or thread undercut, is at the discretion of the manufacturer irrespective of the thread size, as per DIN 1587:2021-10.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07280-01 Hex cap nut, high style DIN 1587 steel or stainless steel

189 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

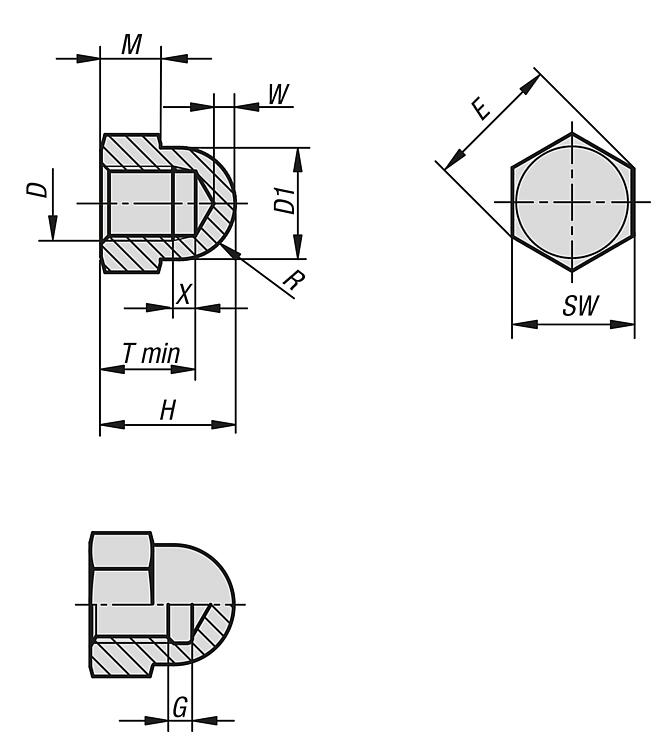

Drawings

Item selection/filter

Order No.	Main material	Surface finish body	D	D1	T min.	H	M	SW	E	R	W	X	G	Price
07280-01-104	steel	bright	M4	6,5	5,26	8	3,2	7	7,66	3,25	2	1,4	-	on request
07280-01-105	steel	bright	M5	7,5	7,21	10	4	8	8,79	3,75	2	1,6	-	on request
07280-01-106	steel	bright	M6	9,5	7,71	12	5	10	11,05	4,75	2	2	-	on request
07280-01-108	steel	bright	M8	12,5	10,65	15	6,5	13	14,38	6,25	2	2,4	-	on request
07280-01-110	steel	bright	M10	15	12,65	18	8	17	18,9	7,5	2	3	-	on request
07280-01-112	steel	bright	M12	17	15,65	22	10	19	21,1	8,5	3	-	6,4	on request
07280-01-114	steel	bright	M14	20	17,65	25	11	22	23,9	10	4	-	7,3	on request
07280-01-116	steel	bright	M16	23	20,58	28	13	24	26,76	11,5	4	-	7,3	on request
07280-01-120	steel	bright	M20	28	25,58	34	16	30	32,95	14	5	-	9,3	on request
07280-01-124	steel	bright	M24	34	30,5	42	19	36	39,6	17	6	-	10,7	on request
07280-01-204	steel	galvanised	M4	6,5	5,26	8	3,2	7	7,66	3,25	2	1,4	-	on request
07280-01-205	steel	galvanised	M5	7,5	7,21	10	4	8	8,79	3,75	2	1,6	-	on request
07280-01-206	steel	galvanised	M6	9,5	7,71	12	5	10	11,05	4,75	2	2	-	on request
07280-01-208	steel	galvanised	M8	12,5	10,65	15	6,5	13	14,38	6,25	2	2,4	-	on request
07280-01-210	steel	galvanised	M10	15	12,65	18	8	17	18,9	7,5	2	3	-	on request
07280-01-212	steel	galvanised	M12	17	15,65	22	10	19	21,1	8,5	3	-	6,4	on request
07280-01-214	steel	galvanised	M14	20	17,65	25	11	22	23,9	10	4	-	7,3	on request
07280-01-216	steel	galvanised	M16	23	20,58	28	13	24	26,76	11,5	4	-	7,3	on request
07280-01-220	steel	galvanised	M20	28	25,58	34	16	30	32,95	14	5	-	9,3	on request
07280-01-224	steel	galvanised	M24	34	30,5	42	19	36	39,6	17	6	-	10,7	on request
07280-01-230	steel	galvanised	M30	44	39	50	24	46	50,9	22	7	-	12,7	on request
07280-01-304	stainless steel A2	bright	M4	6,5	5,26	8	3,2	7	7,66	3,25	2	1,4	-	on request
07280-01-305	stainless steel A2	bright	M5	7,5	7,21	10	4	8	8,79	3,75	2	1,6	-	on request
07280-01-306	stainless steel A2	bright	M6	9,5	7,71	12	5	10	11,05	4,75	2	2	-	on request
07280-01-308	stainless steel A2	bright	M8	12,5	10,65	15	6,5	13	14,38	6,25	2	2,4	-	on request
07280-01-310	stainless steel A2	bright	M10	15	12,65	18	8	17	18,9	7,5	2	3	-	on request
07280-01-312	stainless steel A2	bright	M12	17	15,65	22	10	19	21,1	8,5	3	-	6,4	on request
07280-01-314	stainless steel A2	bright	M14	20	17,65	25	11	22	23,9	10	4	-	7,3	on request
07280-01-316	stainless steel A2	bright	M16	23	20,58	28	13	24	26,76	11,5	4	-	7,3	on request
07280-01-320	stainless steel A2	bright	M20	28	25,58	34	16	30	32,95	14	5	-	9,3	on request
07280-01-324	stainless steel A2	bright	M24	34	30,5	42	19	36	39,6	17	6	-	10,7	on request
07280-01-330	stainless steel A2	bright	M30	44	39	50	24	46	50,9	22	7	-	12,7	on request
07280-01-404	stainless steel A4	bright	M4	6,5	5,26	8	3,2	7	7,66	3,25	2	1,4	-	on request
07280-01-405	stainless steel A4	bright	M5	7,5	7,21	10	4	8	8,79	3,75	2	1,6	-	on request
07280-01-406	stainless steel A4	bright	M6	9,5	7,71	12	5	10	11,05	4,75	2	2	-	on request
07280-01-408	stainless steel A4	bright	M8	12,5	10,65	15	6,5	13	14,38	6,25	2	2,4	-	on request
07280-01-410	stainless steel A4	bright	M10	15	12,65	18	8	17	18,9	7,5	2	3	-	on request
07280-01-412	stainless steel A4	bright	M12	17	15,65	22	10	19	21,1	8,5	3	-	6,4	on request
07280-01-414	stainless steel A4	bright	M14	20	17,65	25	11	22	23,9	10	4	-	7,3	on request
07280-01-416	stainless steel A4	bright	M16	23	20,58	28	13	24	26,76	11,5	4	-	7,3	on request
07280-01-420	stainless steel A4	bright	M20	28	25,58	34	16	30	32,95	14	5	-	9,3	on request
07280-01-424	stainless steel A4	bright	M24	34	30,5	42	19	36	39,6	17	6	-	10,7	on request
