Hex cap nut, low style DIN 917 steel or stainless steel

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Hex cap nut, low style DIN 917 steel or stainless steel

Item description/product images

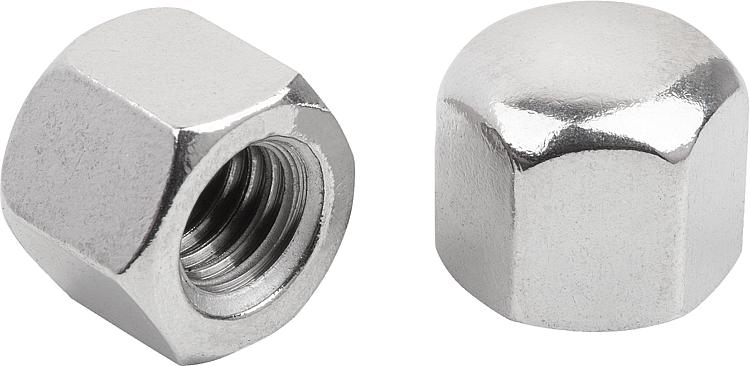

DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 6, bright or electro zinc-plated
Stainless steel A2-70, bright
Stainless steel A4-70, brightNote:Cap nuts are mainly used for decorative screw connections. The cap nut covers and protects the thread end. They are also used to protect against sharp edges on machines, equipment, fitness equipment and wherever people or objects could be injured or damaged by an exposed thread end. Technical data:From size D = M10 the cap nuts have a DIN 76-1 Form D thread undercut.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07280-02 Hex cap nut, low style DIN 917 steel or stainless steel

170 kB

Grades

124 kB

Overview of standards for fasteners

687 kB

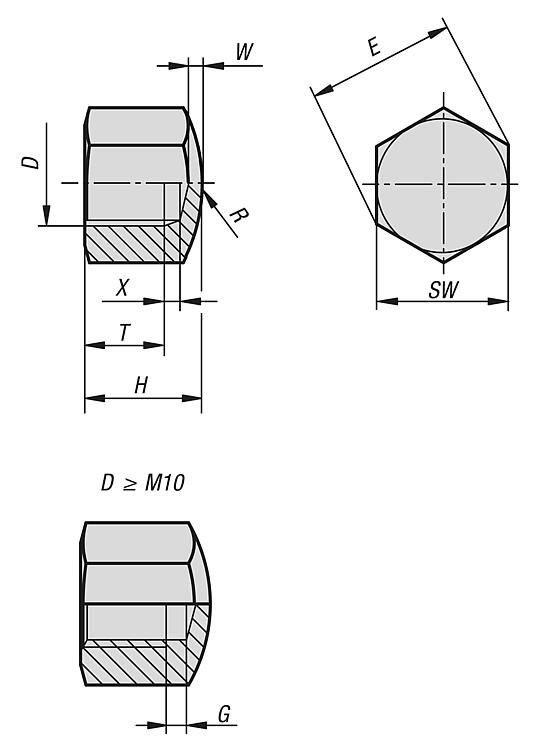

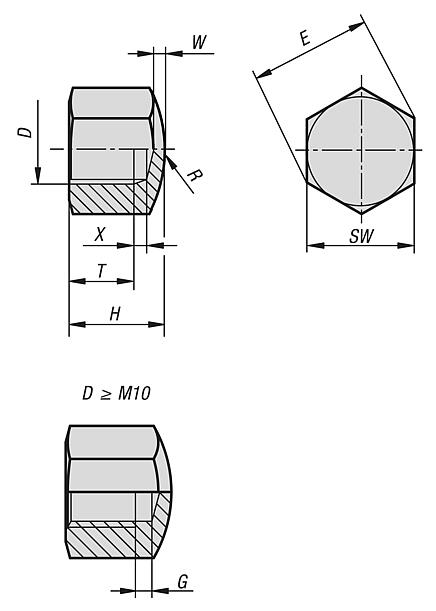

Drawings

Item selection/filter

Order No.	Main material	Surface finish body	D	T min.	H	SW	E	R	W	X	G	Price
07280-02-104	steel	bright	M4	4,16	5,5	7	7,66	8	1	1,05	-	on request
07280-02-105	steel	bright	M5	4,96	7	8	8,79	10	1	1,2	-	on request
07280-02-106	steel	bright	M6	6,71	9	10	11,05	12	1,5	1,5	-	on request
07280-02-108	steel	bright	M8	9,21	12	13	14,38	15	2	1,87	-	on request
07280-02-110	steel	bright	M10	10,65	14	17	18,9	20	2	-	2,25	on request
07280-02-112	steel	bright	M12	13,15	16	19	21,1	25	2	-	6,4	on request
07280-02-116	steel	bright	M16	16,65	20	24	26,76	30	2	-	7,3	on request
07280-02-120	steel	bright	M20	20,58	25	30	32,95	35	2,5	-	9,3	on request
07280-02-124	steel	bright	M24	23,58	30	36	39,6	40	3	-	10,7	on request
07280-02-130	steel	bright	M30	27,58	34	46	50,9	60	3	-	12,7	on request
07280-02-204	steel	galvanised	M4	4,16	5,5	7	7,66	8	1	1,05	-	on request
07280-02-205	steel	galvanised	M5	4,96	7	8	8,79	10	1	1,2	-	on request
07280-02-206	steel	galvanised	M6	6,71	9	10	11,05	12	1,5	1,5	-	on request
07280-02-208	steel	galvanised	M8	9,21	12	13	14,38	15	2	1,87	-	on request
07280-02-210	steel	galvanised	M10	10,65	14	17	18,9	20	2	-	2,25	on request
07280-02-212	steel	galvanised	M12	13,15	16	19	21,1	25	2	-	6,4	on request
07280-02-216	steel	galvanised	M16	16,65	20	24	26,76	30	2	-	7,3	on request
07280-02-220	steel	galvanised	M20	20,58	25	30	32,95	35	2,5	-	9,3	on request
07280-02-224	steel	galvanised	M24	23,58	30	36	39,6	40	3	-	10,7	on request
07280-02-230	steel	galvanised	M30	27,58	34	46	50,9	60	3	-	12,7	on request
07280-02-304	stainless steel A2	bright	M4	4,16	5,5	7	7,66	8	1	1,05	-	on request
07280-02-305	stainless steel A2	bright	M5	4,96	7	8	8,79	10	1	1,2	-	on request
07280-02-306	stainless steel A2	bright	M6	6,71	9	10	11,05	12	1,5	1,5	-	on request
07280-02-308	stainless steel A2	bright	M8	9,21	12	13	14,38	15	2	1,87	-	on request
07280-02-310	stainless steel A2	bright	M10	10,65	14	17	18,9	20	2	-	2,25	on request
07280-02-312	stainless steel A2	bright	M12	13,15	16	19	21,1	25	2	-	6,4	on request
07280-02-316	stainless steel A2	bright	M16	16,65	20	24	26,76	30	2	-	7,3	on request
07280-02-320	stainless steel A2	bright	M20	20,58	25	30	32,95	35	2,5	-	9,3	on request
07280-02-324	stainless steel A2	bright	M24	23,58	30	36	39,6	40	3	-	10,7	on request
07280-02-330	stainless steel A2	bright	M30	27,58	34	46	50,9	60	3	-	12,7	on request
07280-02-404	stainless steel A4	bright	M4	4,16	5,5	7	7,66	8	1	1,05	-	on request
07280-02-405	stainless steel A4	bright	M5	4,96	7	8	8,79	10	1	1,2	-	on request
07280-02-406	stainless steel A4	bright	M6	6,71	9	10	11,05	12	1,5	1,5	-	on request
07280-02-408	stainless steel A4	bright	M8	9,21	12	13	14,38	15	2	1,87	-	on request
07280-02-410	stainless steel A4	bright	M10	10,65	14	17	18,9	20	2	-	2,25	on request
07280-02-412	stainless steel A4	bright	M12	13,15	16	19	21,1	25	2	-	6,4	on request
07280-02-416	stainless steel A4	bright	M16	16,65	20	24	26,76	30	2	-	7,3	on request
07280-02-420	stainless steel A4	bright	M20	20,58	25	30	32,95	35	2,5	-	9,3	on request
