07280-04Cap nut compact in Hygienic DESIGN |
go back |
|

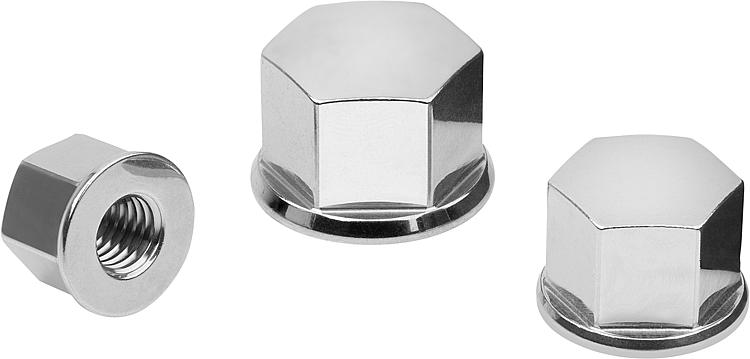

Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4404. Version:Polished.Note:The surface of the cap nut is polished and, with regard to design optimised for the use in hygienic environments. The top of the nut is spherical and the collar has a conical formed top face. The nut has been designed as a low version so as to keep troublesome corners as few as possible. Due to the extremely high quality surface finish of much less than Ra 0.8 µm, hardly any dirt particles adhere to the surface.On request:Inch threads, high versions.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

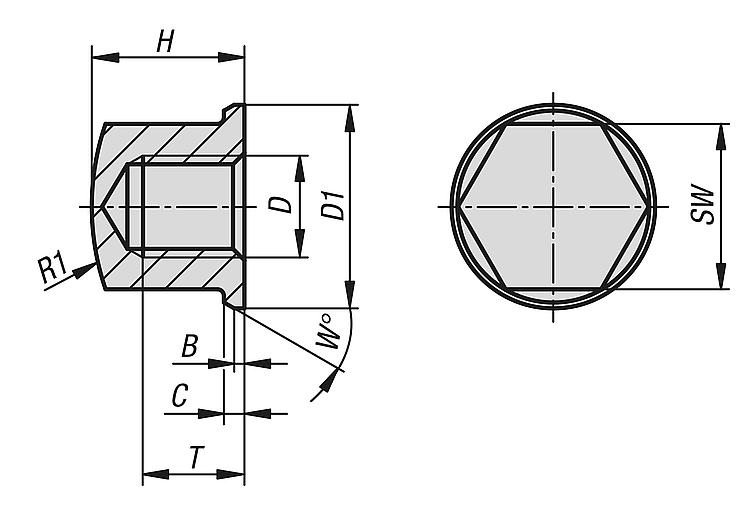

| Order No. | Main
material | D
| D1 | B | C | H | R1 | SW | T | W | CAD | Acc. | Price | Order |
|---|
| 07280-04-03 | stainless steel A4 | M3 | 6,8 | 0,25 | 0,5 | 4,95 | 8,8 | 5,5 | 3 | 20 |  | | on request | | | 07280-04-04 | stainless steel A4 | M4 | 9 | 0,3 | 0,8 | 6,5 | 10 | 7 | 4 | 30 | | | on request | | | 07280-04-05 | stainless steel A4 | M5 | 10 | 0,5 | 1 | 7 | 16 | 8 | 4 | 30 | | | on request | | | 07280-04-06 | stainless steel A4 | M6 | 12 | 0,8 | 1 | 9 | 16 | 10 | 6 | 30 | | | on request | | | 07280-04-08 | stainless steel A4 | M8 | 16 | 0,8 | 1,6 | 12 | 20 | 13 | 8 | 30 | | | on request | | | 07280-04-10 | stainless steel A4 | M10 | 20 | 1 | 2 | 14 | 32 | 16 | 10 | 30 | | | on request | | | 07280-04-12 | stainless steel A4 | M12 | 24 | 1 | 2,5 | 16 | 35 | 19 | 11 | 30 | | | on request | |
