07301Seal washers in Hygienic DESIGN |
go back |
|
Item description/product images |
|
|

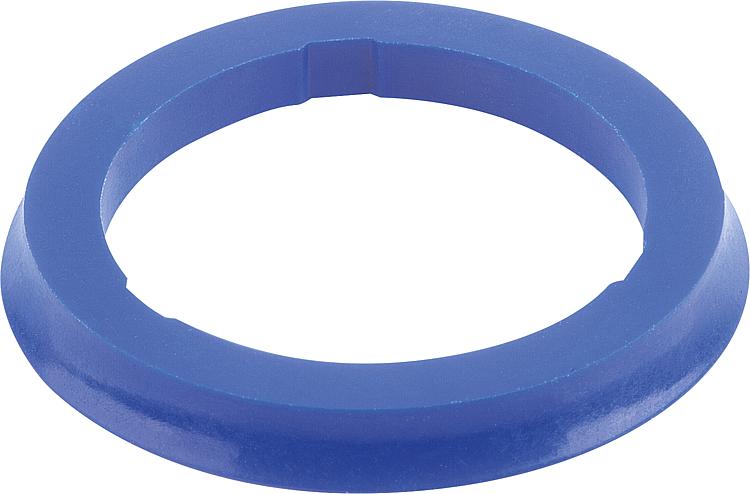

DescriptionProduct description:The thermoplastic seal washer in Hygienic DESIGN was specially developed for use in combination with the hex head bolt 07170-11 or hex nut 07280-11. Special emphasis has been placed on the cleaning-optimised geometry and a surface finish of Ra ≤ 0.8 µm.
The seal washers are made from an EU10/2011 and FDA conform plastic granulate. Material:EU10/2011 and FDA conform thermoplastic (POM).Version:RAL5002 - Ultramarine blue (POM).Note:Sealing ring is unsuitable for acidic cleaning (pH < 4) and oxidising agents.Temperature range:-20 °C to +100 °C (POM).Advantages:Foodstuff conform material.
Cleaning optimised geometry.On request:Special versions.Attention:The suitability of the Hygienic DESIGN fasters for the respective application must be checked by the user. Depending on the loads and external influences (temperature, cleaning media, product media), the sealing washer should be inspected regularly and replaced if necessary.Accessory:Stainless steel hex head bolt with seal washer 07170-11.
Stainless steel hex nut with seal washer 07280-11.Threaded version:M4 - M16.Supplied withSeal washer.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

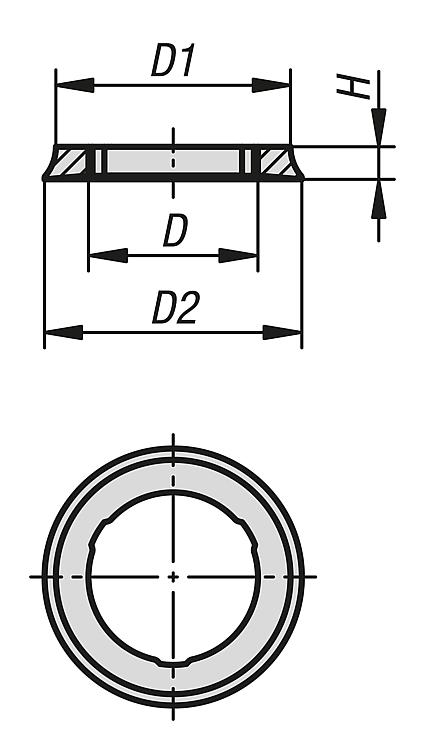

| Order No. | D
| D1 | D2 | H | G=thread / for thread | CAD | Acc. | Price | Order |
|---|
| 07301-104 | 6 | 10 | 11,25 | 2 | M4 |  | | on request | | | 07301-105 | 8 | 12 | 13,25 | 2 | M5 | | | on request | | | 07301-106 | 9 | 14 | 15,74 | 2,5 | M6 | | | on request | | | 07301-108 | 13 | 18 | 19,74 | 2,5 | M8 | | | on request | | | 07301-110 | 17 | 22 | 23,74 | 2,5 | M10 | | | on request | | | 07301-112 | 20 | 26 | 28,25 | 3 | M12 | | | on request | | | 07301-116 | 29 | 35 | 37,25 | 3 | M16 | | | on request | |
