        DIN 7980 spring washer, steel or stainless steel

Item description/product images

DescriptionMaterial:Spring washer steel or stainless steel.Version:Steel bright or electro zinc-plated.
Stainless steel bright.Note:The DIN 7980 spring washer is a washer that has been specially developed for use in conjunction with screws or bolts. They are used to secure a connection and prevent a screw from loosening unintentionally.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07304-01 DIN 7980 spring washer, steel or stainless steel

168 kB

Overview of standards for fasteners

687 kB

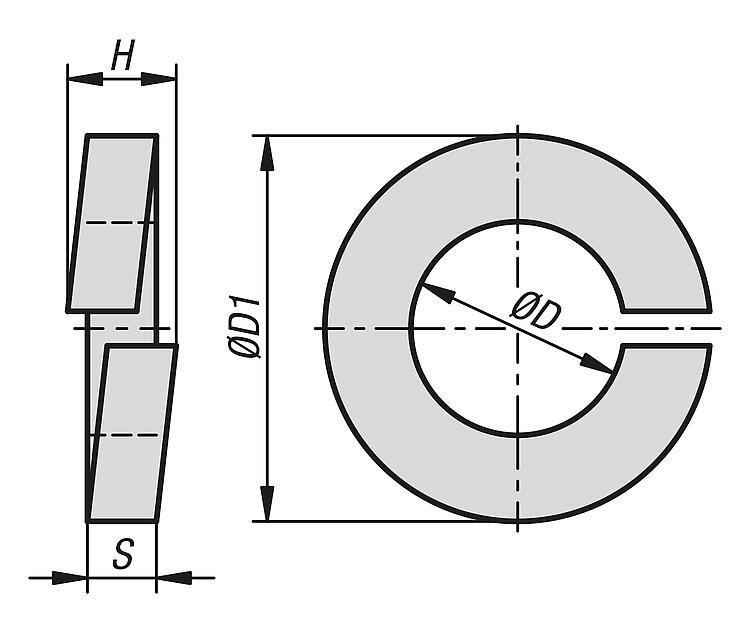

Drawings

Item selection/filter

Order No.	Main material	Surface finish body	D	D1	thickness	H	for screws	Price
07304-01-030	steel	bright	3,1	5,6	1	2,36	M3	on request
07304-01-040	steel	bright	4,1	7	1,2	2,83	M4	on request
07304-01-050	steel	bright	5,1	8,8	1,6	3,78	M5	on request
07304-01-060	steel	bright	6,1	9,9	1,6	3,78	M6	on request
07304-01-080	steel	bright	8,1	12,7	2	4,72	M8	on request
07304-01-100	steel	bright	10,2	16	2,5	5,9	M10	on request
07304-01-120	steel	bright	12,2	18	2,5	5,9	M12	on request
07304-01-140	steel	bright	14,2	21,1	3	7,1	M14	on request
07304-01-160	steel	bright	16,2	24,4	3,5	8,25	M16	on request
07304-01-180	steel	bright	18,2	26,4	3,5	8,25	M18	on request
07304-01-200	steel	bright	20,2	30,6	4,5	10,6	M20	on request
07304-01-031	steel	galvanised	3,1	5,6	1	2,36	M3	on request
07304-01-041	steel	galvanised	4,1	7	1,2	2,83	M4	on request
07304-01-051	steel	galvanised	5,1	8,8	1,6	3,78	M5	on request
07304-01-061	steel	galvanised	6,1	9,9	1,6	3,78	M6	on request
07304-01-081	steel	galvanised	8,1	12,7	2	4,72	M8	on request
07304-01-101	steel	galvanised	10,2	16	2,5	5,9	M10	on request
07304-01-121	steel	galvanised	12,2	18	2,5	5,9	M12	on request
07304-01-141	steel	galvanised	14,2	21,1	3	7,1	M14	on request
07304-01-161	steel	galvanised	16,2	24,4	3,5	8,25	M16	on request
07304-01-181	steel	galvanised	18,2	26,4	3,5	8,25	M18	on request
07304-01-201	steel	galvanised	20,2	30,6	4,5	10,6	M20	on request
07304-01-1030	stainless steel A2	bright	3,1	5,6	1	2,36	M3	on request
07304-01-1040	stainless steel A2	bright	4,1	7	1,2	2,83	M4	on request
07304-01-1050	stainless steel A2	bright	5,1	8,8	1,6	3,78	M5	on request
07304-01-1060	stainless steel A2	bright	6,1	9,9	1,6	3,78	M6	on request
07304-01-1080	stainless steel A2	bright	8,1	12,7	2	4,72	M8	on request
07304-01-1100	stainless steel A2	bright	10,2	16	2,5	5,9	M10	on request
07304-01-1120	stainless steel A2	bright	12,2	18	2,5	5,9	M12	on request
07304-01-1160	stainless steel A2	bright	16,2	24,4	3,5	8,25	M16	on request
07304-01-6040	stainless steel A4	bright	4,1	7	1,2	2,83	M4	on request
07304-01-6050	stainless steel A4	bright	5,1	8,8	1,6	3,78	M5	on request
07304-01-6060	stainless steel A4	bright	6,1	9,9	1,6	3,78	M6	on request
07304-01-6080	stainless steel A4	bright	8,1	12,7	2	4,72	M8	on request
07304-01-6100	stainless steel A4	bright	10,2	16	2,5	5,9	M10	on request
07304-01-6120	stainless steel A4	bright	12,2	18	2,5	5,9	M12	on request
07304-01-6160	stainless steel A4	bright	16,2	24,4	3,5	8,25	M16	on request
07304-01-6200	stainless steel A4	bright	20,2	30,6	4,5	10,6	M20	on request
