Wedge lock washers DIN 25201

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Wedge lock washers DIN 25201

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Steel electro zinc-plated, hardness ≥ 465 HV 1.
Stainless steel hardness ≥ 520 HV 0.05.Note:These lock washers ensure that bolts and screws subjected to transverse loads, chattering or vibrations do not work loose. A joint is also secure at low levels of tension. If the bolt (nut) tends to loosen independently in bolted joints under dynamic stress, the bolt (nut) carries its positive-locking washer with it, the sloped surfaces of which run directly up against the angled surfaces of the counter-washer. In other words, the more a bolted joint tries to loosen itself, the more securely the wedge action of the washer blocks the attempt.

Supplied glued together in pairs.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07310 Wedge lock washers DIN 25201

159 kB

Mounting examples for DIN 25201 wedge lock washers

357 kB

Overview of standards for fasteners

687 kB

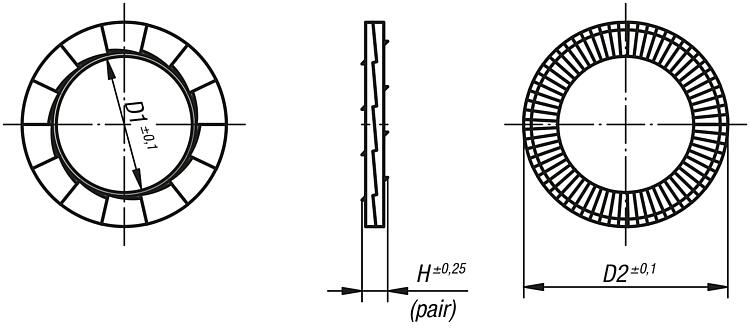

Drawings

Item selection/filter

Order No.	Main material	for screws	for screws inch	D1	D2	H	Price
07310-030718	steel	M3	1/8	3,4	7	1,8	on request
07310-050918	steel	M5	3/16	5,4	9	1,8	on request
07310-061118	steel	M6	1/4	6,5	10,8	1,8	on request
07310-081426	steel	M8	5/16	8,7	13,5	2,5	on request
07310-101726	steel	M10	3/8	10,7	16,6	2,5	on request
07310-122026	steel	M12	1/2	13	19,5	2,5	on request
07310-162537	steel	M16	5/8	17	25,4	3,4	on request
07310-182937	steel	M18	11/16	19,5	29	3,4	on request
07310-203137	steel	M20	3/4	21,4	30,7	3,4	on request
07310-030722	stainless steel A4	M3	1/8	3,4	7	2,2	on request
07310-050922	stainless steel A4	M5	3/16	5,4	9	2,2	on request
07310-061122	stainless steel A4	M6	1/4	6,5	10,8	2,2	on request
07310-081422	stainless steel A4	M8	5/16	8,7	13,5	2,2	on request
07310-101722	stainless steel A4	M10	3/8	10,7	16,6	2,2	on request
07310-122022	stainless steel A4	M12	1/2	13	19,5	2,2	on request
07310-162532	stainless steel A4	M16	5/8	17	25,4	3,2	on request
07310-182932	stainless steel A4	M18	11/16	19,5	29	3,2	on request
07310-203132	stainless steel A4	M20	3/4	21,4	30,7	3,2	on request
07310-040918	steel	M4	5/32	4,4	9	1,8	on request
07310-061426	steel	M6	1/4	6,5	13,5	2,5	on request
07310-0817261	steel	M8	5/16	8,7	16,6	2,5	on request
07310-1021261	steel	M10	3/8	10,7	21	2,5	on request
07310-1225371	steel	M12	1/2	13	25,4	3,4	on request
07310-1631371	steel	M16	5/8	17	30,7	3,4	on request
07310-040922	stainless steel A4	M4	5/32	4,4	9	2,2	on request
07310-061422	stainless steel A4	M6	1/4	6,5	13,5	2,2	on request
07310-081722	stainless steel A4	M8	5/16	8,7	16,6	2,2	on request
07310-122532	stainless steel A4	M12	1/2	13	25,4	3,2	on request
07310-163132	stainless steel A4	M16	5/8	17	30,7	3,2	on request
