        Washers for clamps steel or aluminium DIN 6340

Item description/product images

DescriptionMaterial:Steel or EN AW-7022Version:Stamped steel: pressed flat and tempered to 1200-1400 N/mm², black.
Turned steel: black oxidised.
Turned aluminium: anodised.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07320 Washers for clamps steel or aluminium DIN 6340

184 kB

Overview of standards for fasteners

687 kB

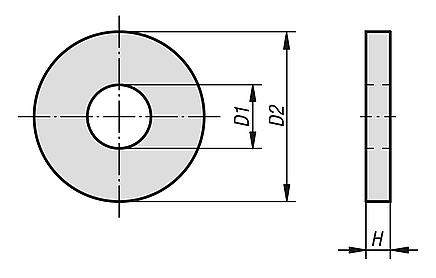

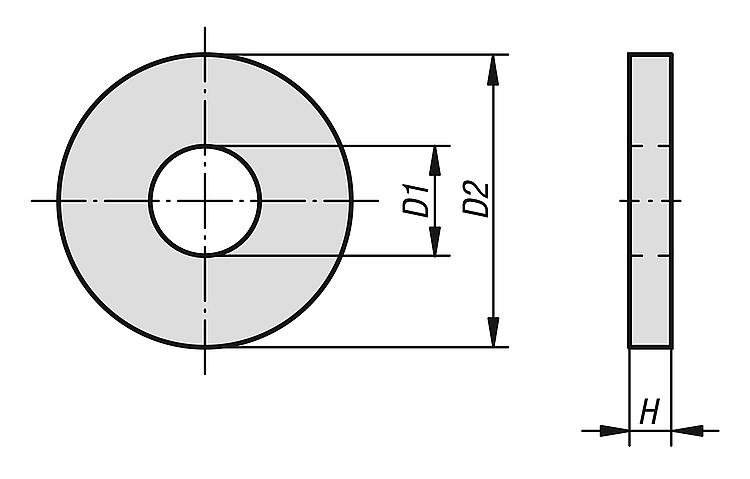

Drawings

Item selection/filter

	steel aluminium	- turned	6,4 8,4 10,5 13 15 17 19 21 23 25 31 38	17 23 28 35 40 45 50 60 68 80	3 4 5 6 5,6 8 10	M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M30 M36				Reset
Order No.	Main material	Form definition	D1	D2	H	for bolt	CAD	Acc.	Price	Order
07320-06	steel	-	6,4	17	3	M6			on request
07320-08	steel	-	8,4	23	4	M8			on request
07320-10	steel	-	10,5	28	4	M10			on request
07320-12	steel	-	13	35	5	M12			on request
07320-14	steel	-	15	40	5	M14			on request
07320-16	steel	-	17	45	6	M16			on request
07320-18	steel	-	19	45	6	M18			on request
07320-20	steel	-	21	50	6	M20			on request
07320-22	steel	-	23	50	5,6	M22			on request
07320-24	steel	-	25	60	8	M24			on request
07320-30	steel	-	31	68	10	M30			on request
07320-36	steel	-	38	80	10	M36			on request
07320-206	aluminium	turned	6,4	17	3	M6			on request
07320-208	aluminium	turned	8,4	23	4	M8			on request
07320-210	aluminium	turned	10,5	28	4	M10			on request
07320-212	aluminium	turned	13	35	5	M12			on request
07320-214	aluminium	turned	15	40	5	M14			on request
07320-216	aluminium	turned	17	45	6	M16			on request
07320-218	aluminium	turned	19	45	6	M18			on request
07320-220	aluminium	turned	21	50	6	M20			on request
07320-222	aluminium	turned	23	50	8	M22			on request
07320-224	aluminium	turned	25	60	8	M24			on request
07320-230	aluminium	turned	31	68	10	M30			on request
07320-236	aluminium	turned	38	80	10	M36			on request
07320-306	steel	turned	6,4	17	3	M6			on request
07320-308	steel	turned	8,4	23	4	M8			on request
07320-310	steel	turned	10,5	28	4	M10			on request
07320-312	steel	turned	13	35	5	M12			on request
07320-314	steel	turned	15	40	5	M14			on request
07320-316	steel	turned	17	45	6	M16			on request
07320-318	steel	turned	19	45	6	M18			on request
07320-320	steel	turned	21	50	6	M20			on request
