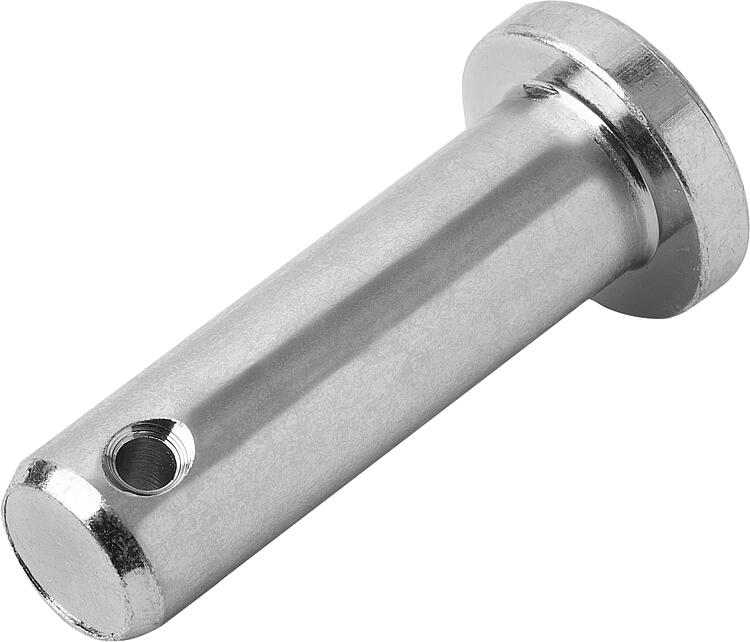

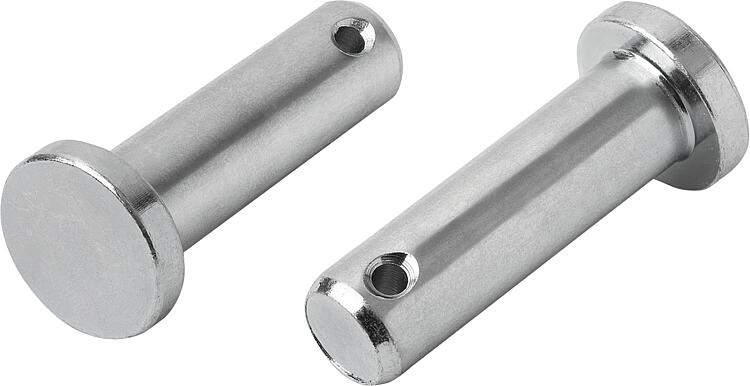

        Pin with head ISO 2341 Form B

Item description/product images

DescriptionMaterial:Steel.Version:galvanised.Note:Pin with hole for split pin. Secured with split pins.

ISO 2341 Form B with hole for split pin. Pin diameter with tolerance zone h11.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07337-20 Pin with head ISO 2341 Form B

232 kB

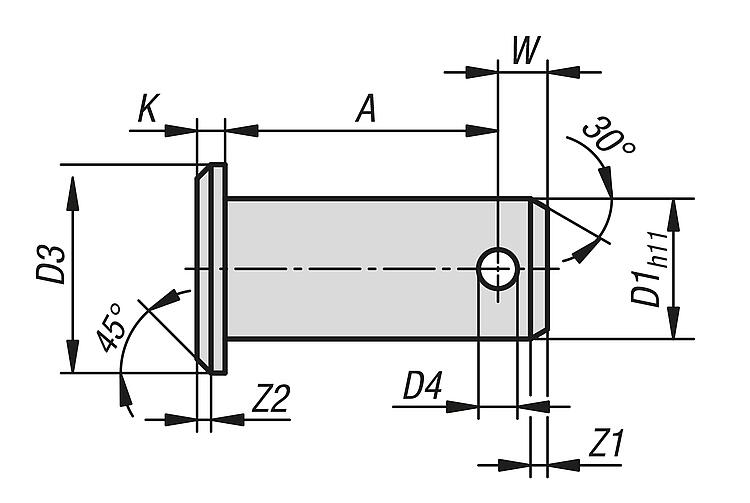

Drawings

Item selection/filter

Order No.	A	D1	D3	D4	K	W	Z1	Z2	Price
07337-20-008165	16,5	8	14	2	3	3,5	2	1	on request
07337-20-008215	21,5	8	14	2	3	3,5	2	1	on request
07337-20-008265	26,5	8	14	2	3	3,5	2	1	on request
07337-20-008315	31,5	8	14	2	3	3,5	2	1	on request
07337-20-010205	20,5	10	18	3,2	4	4,5	2	1	on request
07337-20-010255	25,5	10	18	3,2	4	4,5	2	1	on request
07337-20-010305	30,5	10	18	3,2	4	4,5	2	1	on request
07337-20-010405	40,5	10	18	3,2	4	4,5	2	1	on request
07337-20-010455	45,5	10	18	3,2	4	4,5	2	1	on request
07337-20-010555	55,5	10	18	3,2	4	4,5	2	1	on request
07337-20-010655	65,5	10	18	3,2	4	4,5	2	1	on request
07337-20-012245	24,5	12	20	3,2	4	5,5	3	1,6	on request
07337-20-012295	29,5	12	20	3,2	4	5,5	3	1,6	on request
07337-20-012345	34,5	12	20	3,2	4	5,5	3	1,6	on request
07337-20-012395	39,5	12	20	3,2	4	5,5	3	1,6	on request
07337-20-012445	44,5	12	20	3,2	4	5,5	3	1,6	on request
07337-20-012545	54,5	12	20	3,2	4	5,5	3	1,6	on request
07337-20-016340	34	16	25	4	4,5	6	3	1,6	on request
07337-20-016390	39	16	25	4	4,5	6	3	1,6	on request
07337-20-016440	44	16	25	4	4,5	6	3	1,6	on request
07337-20-016490	49	16	25	4	4,5	6	3	1,6	on request
07337-20-016540	54	16	25	4	4,5	6	3	1,6	on request
07337-20-016590	59	16	25	4	4,5	6	3	1,6	on request
07337-20-018580	58	18	28	5	5	7	3	1,6	on request
07337-20-020320	32	20	30	5	5	8	4	2	on request
07337-20-020420	42	20	30	5	5	8	4	2	on request
07337-20-020470	47	20	30	5	5	8	4	2	on request
07337-20-020520	52	20	30	5	5	8	4	2	on request
07337-20-020570	57	20	30	5	5	8	4	2	on request
