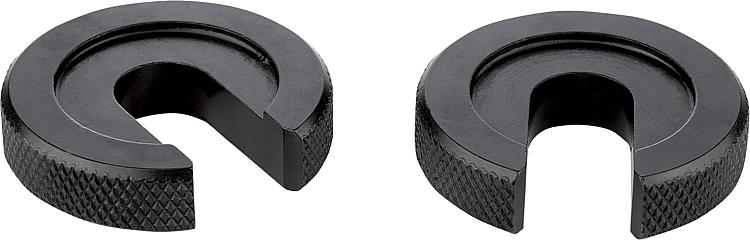

07380C-washers DIN 6372 enhanced |
go back |
|
Item description/product images |
|
|

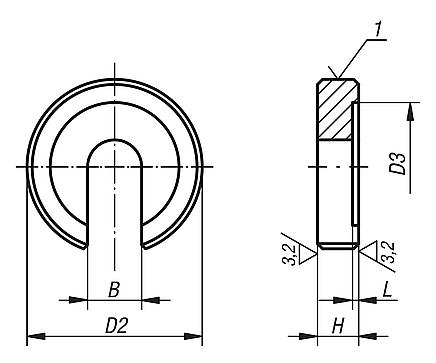

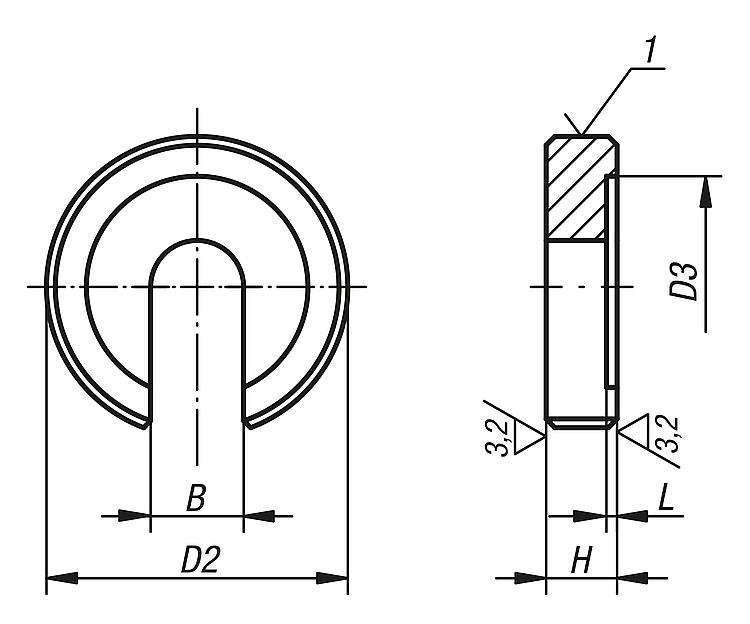

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | -
- 5,25
- 6,4
- 8,4
- 10,5
- 13
- 14,5
- 17
- 21
- 25
- 31
- 37
| | | | | | | | Reset |
|---|
Order No.
| B | D2 | D3 | H | L | CAD | Acc. | Price | Order |
|---|
| 07380-05 | 5,25 | 17 | 12 | 5 | 0,75 |  | | on request | | | 07380-06 | 6,4 | 22 | 16 | 6 | 0,8 | | | on request | | | 07380-08 | 8,4 | 28 | 21 | 7 | 1 | | | on request | | | 07380-10 | 10,5 | 34 | 25 | 8 | 1,2 | | | on request | | | 07380-12 | 13 | 40 | 30 | 9 | 1,8 | | | on request | | | 07380-14 | 14,5 | 48 | 33 | 12 | 1,8 | | | on request | | | 07380-16 | 17 | 56 | 37 | 12 | 1,8 | | | on request | | | 07380-20 | 21 | 64 | 45 | 14 | 2 | | | on request | | | 07380-24 | 25 | 75 | 52 | 16 | 2 | | | on request | | | 07380-30 | 31 | 90 | 65 | 18 | 2 | | | on request | | | 07380-36 | 37 | 100 | 75 | 20 | 2,5 | | | on request | |
