07415Clamping force intensifiers |
go back |
|
Item description/product images |
|
|

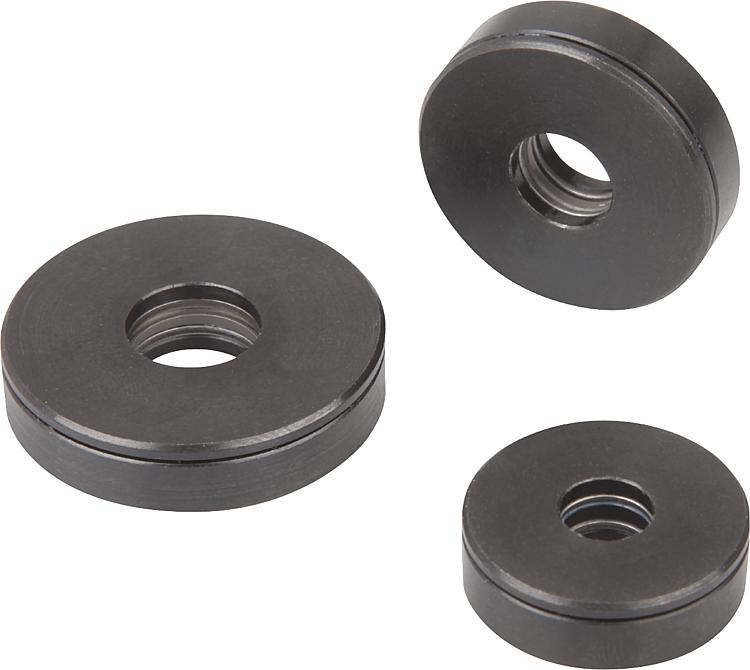

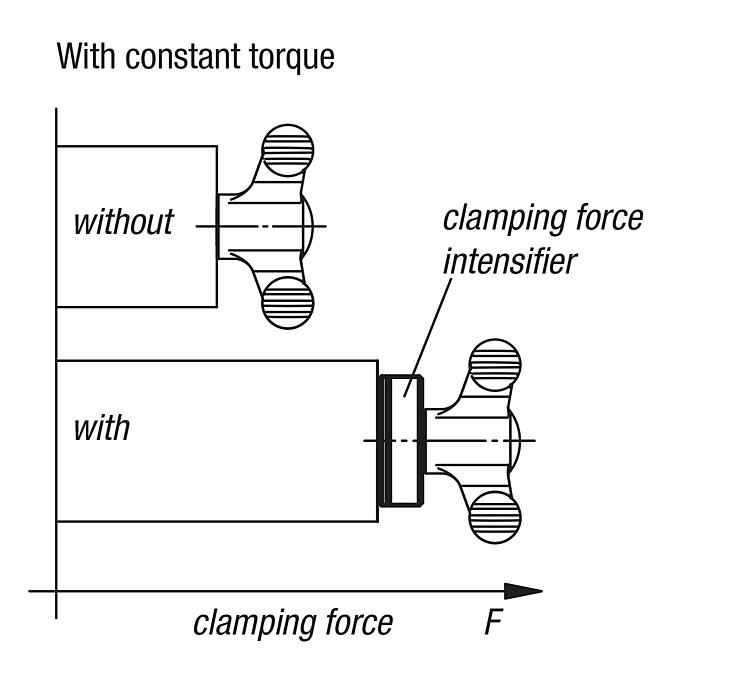

DescriptionMaterial:Bearing housing steel.Version:Black oxidised.Note:As a rule, the clamping force intensifier is used together with tightening or clamping elements. The integrated axial needle roller thrust bearing unit can achieve ca. twice the clamping force by the same lever length.Advantages:The component surface is protected by the stationary lower ring.
The higher preload force causes a lower tendency for material relaxation in the thread.

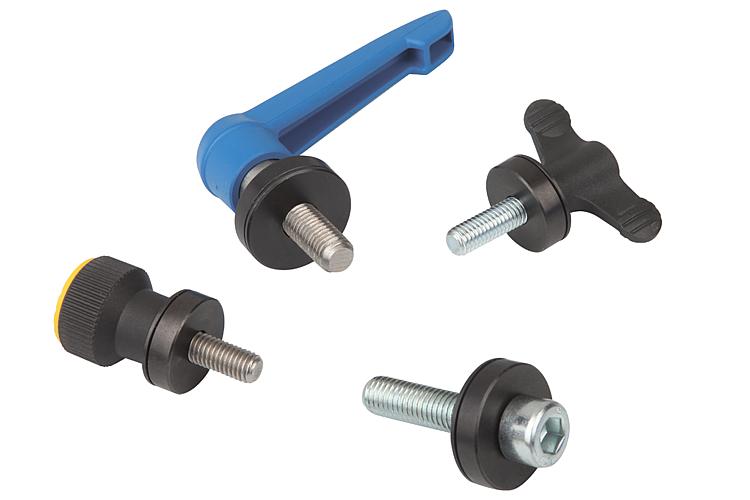

Clamping levers, wing and star grips, knurled knobs or hexagonal and socket head screws etc. can be used as tightening or clamping elements.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
