07520C-washers captive DIN 6371 |
go back |
|

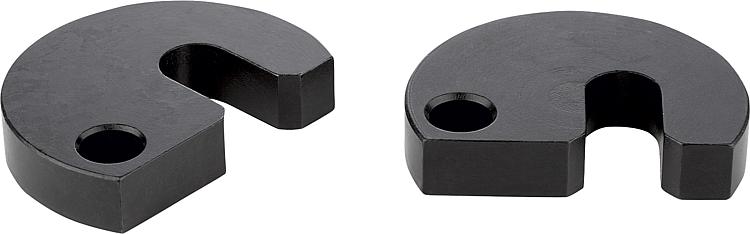

Item description/product images |
|
|
DescriptionMaterial:Carbon steel 1.0760.Version:Nitrided and black oxidised.Note:07520-14 is not a DIN standard.

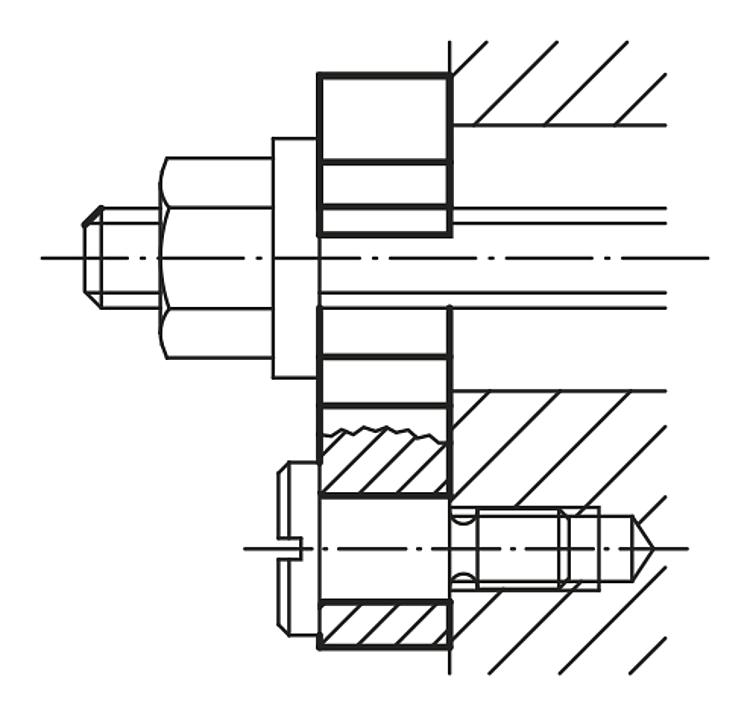

For suitable shoulder screws see 07530.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

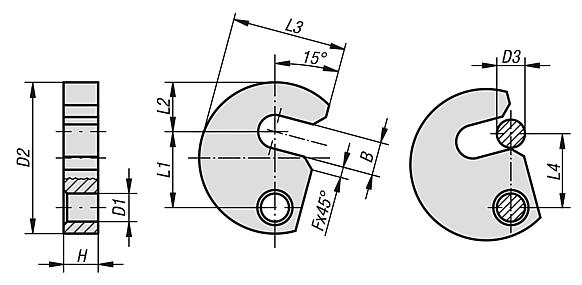

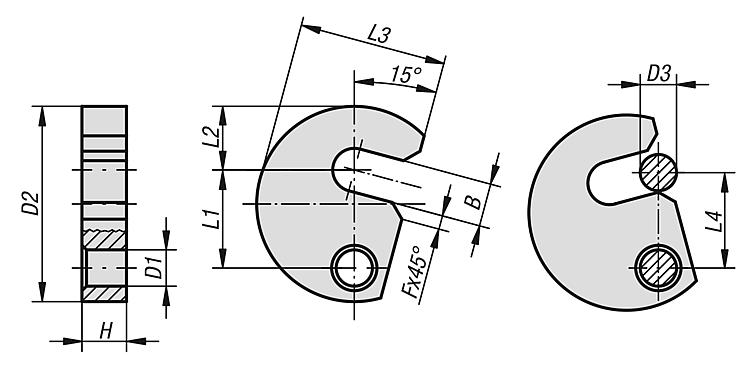

| Order No. | B | D1
| D2 | D3 | F | H | L1 | L2 | L3 | L4 | CAD | Acc. | Price | Order |
|---|
| 07520-06 | 7,5 | 9 | 38 | 6 | 3 | 9,8 | 19,6 | 11 | 29 | 19 |  |  | on request | | | 07520-08 | 9,5 | 9 | 43 | 8 | 3 | 9,8 | 21,6 | 14 | 32,5 | 21 | | | on request | | | 07520-10 | 11,5 | 9 | 48 | 10 | 3 | 9,8 | 23,6 | 17 | 36,5 | 23 | | | on request | | | 07520-12 | 13,5 | 11 | 61 | 12 | 3 | 11,8 | 29,6 | 22 | 45 | 29 | | | on request | | | 07520-14 | 15,5 | 11 | 65 | 14 | 3 | 11,8 | 31,6 | 23 | 49 | 31 | | | on request | | | 07520-16 | 17,5 | 11 | 68 | 16 | 3 | 11,8 | 33,6 | 25 | 50 | 33 | | | on request | | | 07520-20 | 21,5 | 11 | 74 | 20 | 4 | 11,8 | 36,6 | 28 | 55 | 36 | | | on request | |
