        Spacer washers ground

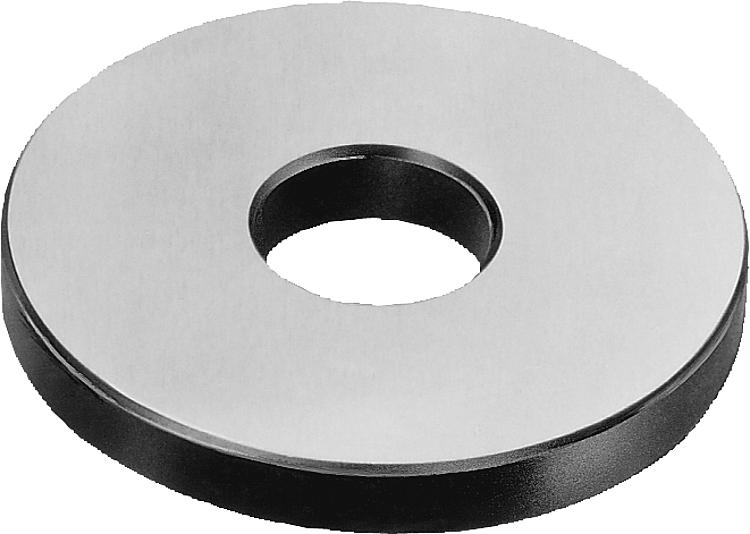

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered, black oxidised.

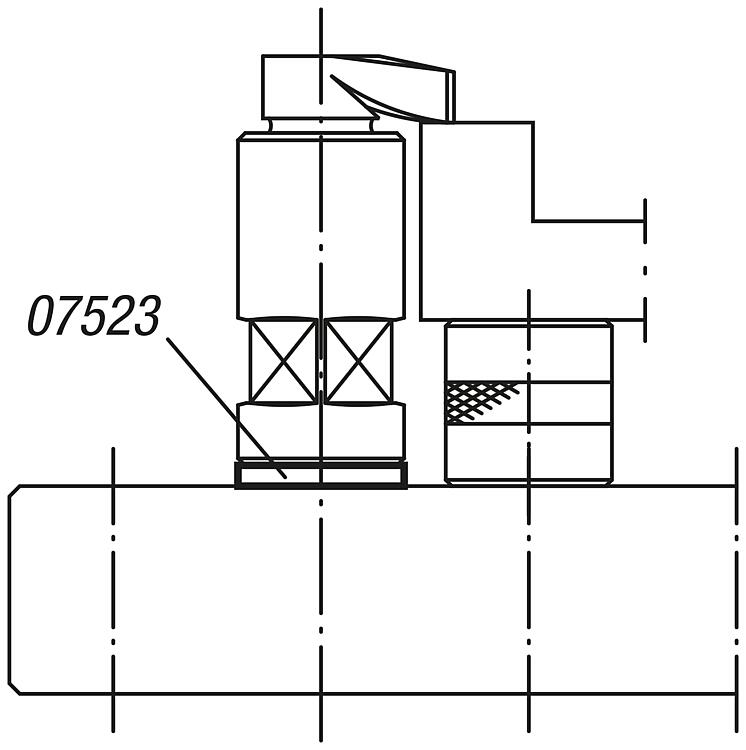

Contact faces ground.Note:The spacing washer is used to alter the clamping range of hook clamps and hook holders. When a spacing washer is inserted between the base and the hook holder or riser cylinder it prevents damage to the support face.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07523 Spacer washers ground

168 kB

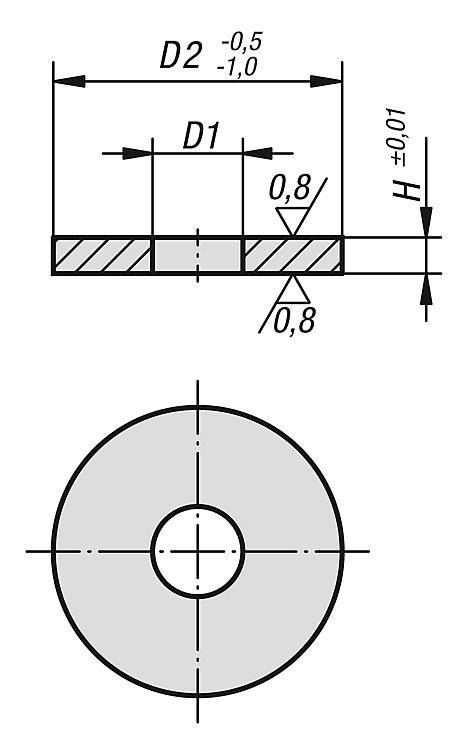

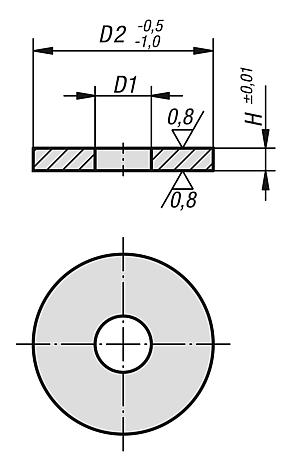

Drawings

Item selection/filter

Order No.	D1	D2	H	Price
07523-08003	9	24	3	on request
07523-08005	9	24	5	on request
07523-08008	9	24	8	on request
07523-12001	12,5	40	1	on request
07523-12003	12,5	40	3	on request
07523-12005	12,5	40	5	on request
07523-16001	16,5	50	1	on request
07523-16003	16,5	50	3	on request
07523-16005	16,5	50	5	on request
07523-16105	16,5	60	5	on request
