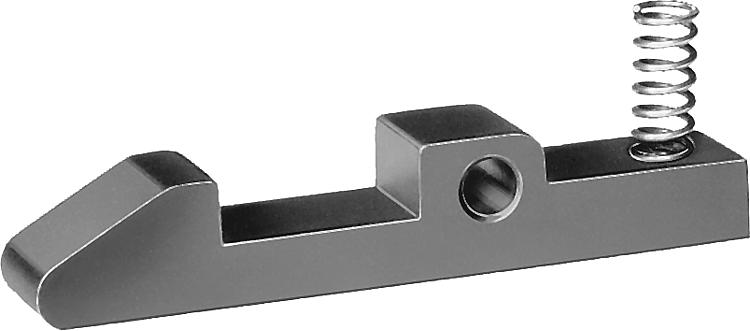

Snapper catch with spring DIN 6310
 07560

Snapper catch with spring DIN 6310

 go back

Item description/product images
DescriptionMaterial:Carbon steel 1.2067Version:Black oxidised, snapper nose hardened (see grey region).Note:The spring is supplied.
Spring dimensions:
Ø 4.8 x 14
Ø 5.8 x 17
Ø 7.3 x 21Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07560 Snapper catch with spring DIN 6310 153 kB

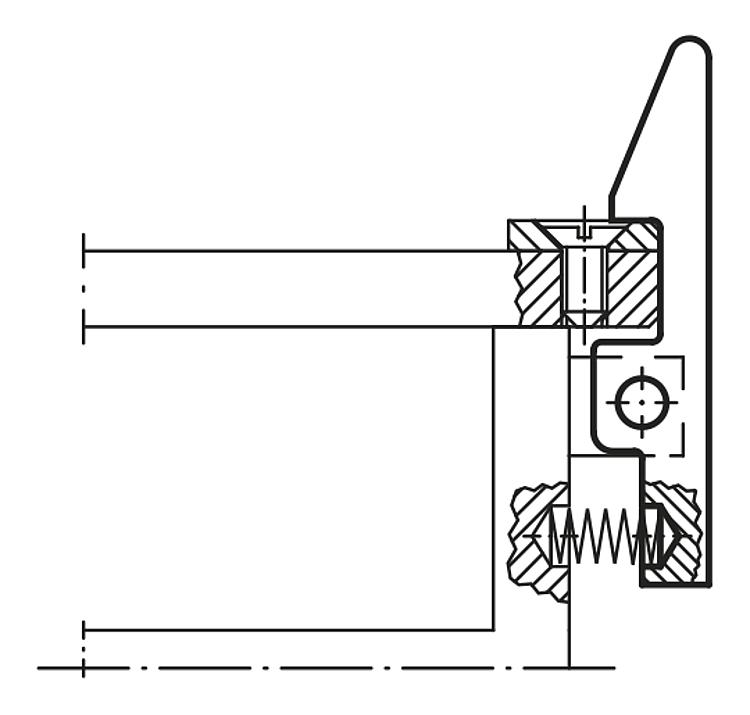

Drawings

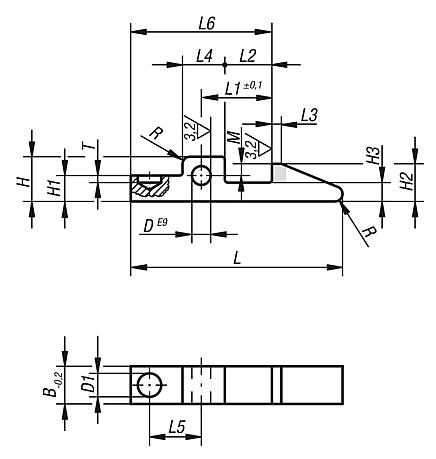

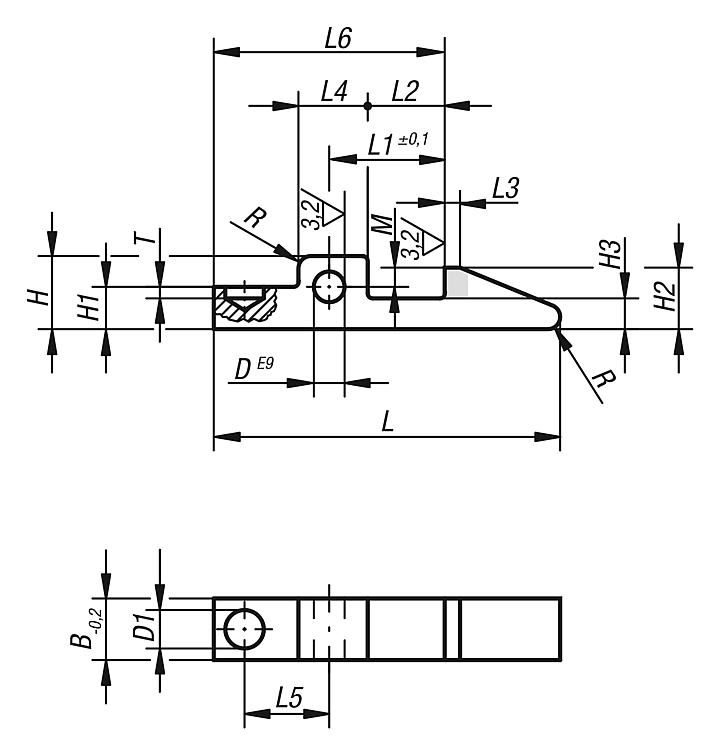

Snapper catch with spring DIN 6310

Item selection/filter
Order No.BDD1

HH1H2H3LL1L2L3L4L5L6TRMCADAcc.PriceOrder
07560-018459,55,5844515102911301,51,62,5 on request
07560-021056,3127105602014311154032,53 on request
07560-0314681591478030225142360545 on request
