        Slotted round nuts, steel or stainless steel, DIN 981

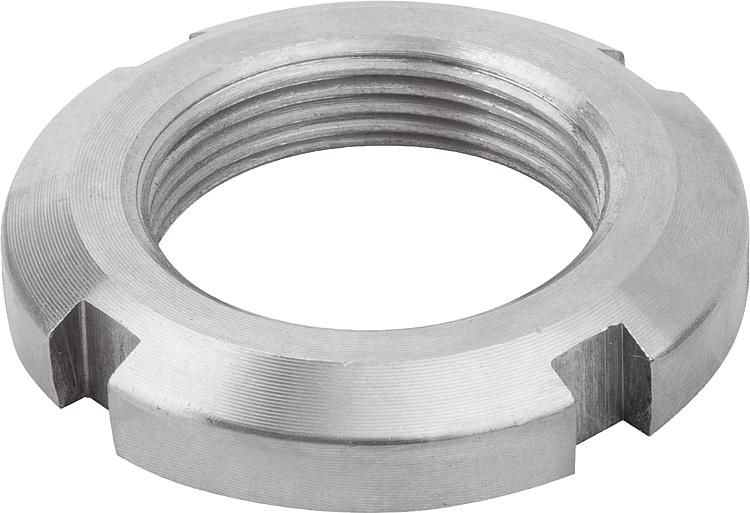

Item description/product images

DescriptionMaterial:Steel.
Stainless steel A2.Version:Stainless steel, bright.
Steel, bright.
Steel electro zinc-plated.Note:The slotted round nuts are mainly used to fasten bearings to a shaft.
The slotted round nuts can also be used to secure gear wheels, pulleys and other machine components.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07590-01 Slotted round nuts, steel or stainless steel, DIN 981

201 kB

Overview of standards for fasteners

687 kB

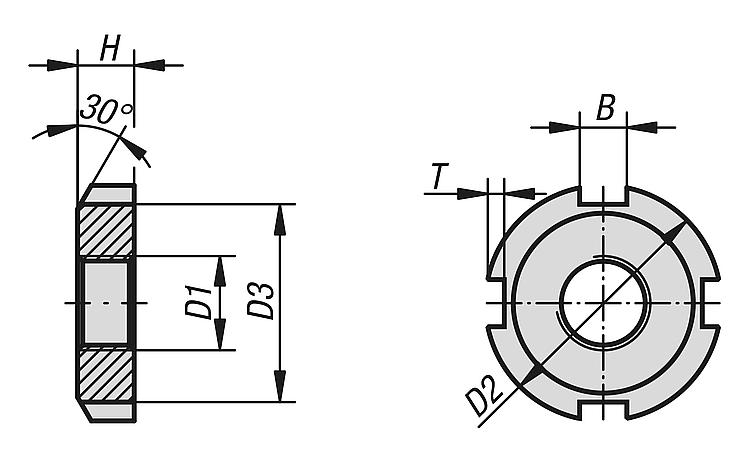

Drawings

Item selection/filter

Order No.	Main material	Surface finish body	D1	D2	D3	H	B=slot width	T	Price
07590-01-0010	steel	bright	M10x0,75	18	13,5	4	3	2	on request
07590-01-0012	steel	bright	M12x1	22	17	4	3	2	on request
07590-01-0015	steel	bright	M15X1	25	21	5	4	2	on request
07590-01-0017	steel	bright	M17x1	28	24	5	4	2	on request
07590-01-0020	steel	bright	M20X1	32	26	6	4	2	on request
07590-01-0025	steel	bright	M25X1,5	38	32	7	5	2	on request
07590-01-0030	steel	bright	M30x1,5	45	38	7	5	2	on request
07590-01-0035	steel	bright	M35x1,5	52	44	8	5	2	on request
07590-01-0040	steel	bright	M40x1,5	58	50	9	6	2,5	on request
07590-01-0045	steel	bright	M45x1,5	65	56	10	6	2,5	on request
07590-01-0050	steel	bright	M50x1,5	70	61	11	6	2,5	on request
07590-01-0055	steel	bright	M55x2	75	67	11	7	3	on request
07590-01-0060	steel	bright	M60x2	80	73	11	7	3	on request
07590-01-0065	steel	bright	M65x2	85	79	12	7	3	on request
07590-01-0070	steel	bright	M70x2	92	85	12	8	3,5	on request
07590-01-0075	steel	bright	M75x2	98	90	13	8	3,5	on request
07590-01-0080	steel	bright	M80x2	105	95	15	8	3,5	on request
07590-01-0085	steel	bright	M85x2	110	102	15	8	3,5	on request
07590-01-0090	steel	bright	M90x2	120	108	16	10	4	on request
07590-01-0095	steel	bright	M95x2	125	110	17	10	4	on request
07590-01-0100	steel	bright	M100x2	130	120	18	10	4	on request
07590-01-010	steel	galvanised	M10x0,75	18	13,5	4	3	2	on request
07590-01-012	steel	galvanised	M12x1	22	17	4	3	2	on request
07590-01-015	steel	galvanised	M15X1	25	21	5	4	2	on request
07590-01-017	steel	galvanised	M17x1	28	24	5	4	2	on request
07590-01-020	steel	galvanised	M20X1	32	26	6	4	2	on request
07590-01-025	steel	galvanised	M25X1,5	38	32	7	5	2	on request
07590-01-030	steel	galvanised	M30x1,5	45	38	7	5	2	on request
07590-01-035	steel	galvanised	M35x1,5	52	44	8	5	2	on request
07590-01-040	steel	galvanised	M40x1,5	58	50	9	6	2,5	on request
07590-01-045	steel	galvanised	M45x1,5	65	56	10	6	2,5	on request
07590-01-050	steel	galvanised	M50x1,5	70	61	11	6	2,5	on request
07590-01-055	steel	galvanised	M55x2	75	67	11	7	3	on request
07590-01-060	steel	galvanised	M60x2	80	73	11	7	3	on request
07590-01-065	steel	galvanised	M65x2	85	79	12	7	3	on request
07590-01-070	steel	galvanised	M70x2	92	85	12	8	3,5	on request
07590-01-075	steel	galvanised	M75x2	98	90	13	8	3,5	on request
07590-01-080	steel	galvanised	M80x2	105	95	15	8	3,5	on request
07590-01-085	steel	galvanised	M85x2	110	102	15	8	3,5	on request
07590-01-090	steel	galvanised	M90x2	120	108	16	10	4	on request
07590-01-095	steel	galvanised	M95x2	125	110	17	10	4	on request
07590-01-100	steel	galvanised	M100x2	130	120	18	10	4	on request
07590-01-1010	stainless steel A2	bright	M10x0,75	18	13,5	4	3	2	on request
07590-01-1012	stainless steel A2	bright	M12x1	22	17	4	3	2	on request
07590-01-1015	stainless steel A2	bright	M15X1	25	21	5	4	2	on request
07590-01-1017	stainless steel A2	bright	M17x1	28	24	5	4	2	on request
07590-01-1020	stainless steel A2	bright	M20X1	32	26	6	4	2	on request
07590-01-1025	stainless steel A2	bright	M25X1,5	38	32	7	5	2	on request
07590-01-1030	stainless steel A2	bright	M30x1,5	45	38	7	5	2	on request
07590-01-1035	stainless steel A2	bright	M35x1,5	52	44	8	5	2	on request
07590-01-1040	stainless steel A2	bright	M40x1,5	58	50	9	6	2,5	on request
07590-01-1045	stainless steel A2	bright	M45x1,5	65	56	10	6	2,5	on request
07590-01-1050	stainless steel A2	bright	M50x1,5	70	61	11	6	2,5	on request
07590-01-1055	stainless steel A2	bright	M55x2	75	67	11	7	3	on request
07590-01-1060	stainless steel A2	bright	M60x2	80	73	11	7	3	on request
07590-01-1065	stainless steel A2	bright	M65x2	85	79	12	7	3	on request
07590-01-1070	stainless steel A2	bright	M70x2	92	85	12	8	3,5	on request
07590-01-1075	stainless steel A2	bright	M75x2	98	90	13	8	3,5	on request
07590-01-1080	stainless steel A2	bright	M80x2	105	95	15	8	3,5	on request
07590-01-1085	stainless steel A2	bright	M85x2	110	102	15	8	3,5	on request
07590-01-1090	stainless steel A2	bright	M90x2	120	108	16	10	4	on request
07590-01-1095	stainless steel A2	bright	M95x2	125	110	17	10	4	on request
07590-01-1100	stainless steel A2	bright	M100x2	130	120	18	10	4	on request
