Slotted nuts with elastic lock

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Slotted nuts with elastic lock

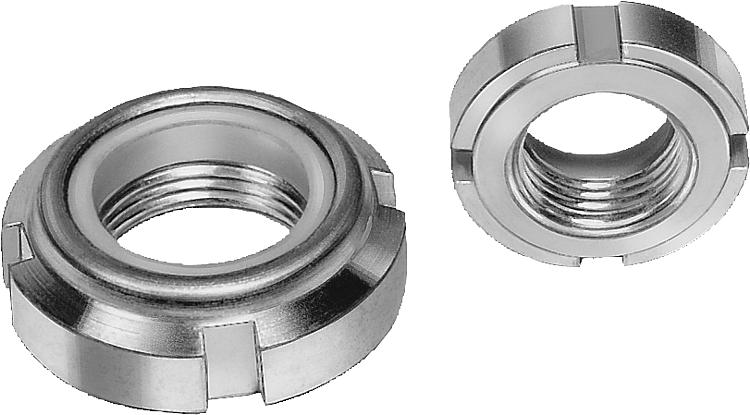

Item description/product images

DescriptionMaterial:Free-cutting steel.
Elastic ring polyamide (max. 100 °C).Version:Electro zinc-plated.Note:Elastic lock slotted nuts have enormous cost advantages. They do not need lock washers with folding tabs and so the expensive milling of a slot is not required.
The polyamide ring is resistant to petrol and oil.
Elastic lock slotted nuts can be used several times. They withstand the strongest vibrations and oscillations irrespective of the tightening torque and are therefore useful as adjustment nuts.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07595 Slotted nuts with elastic lock

172 kB

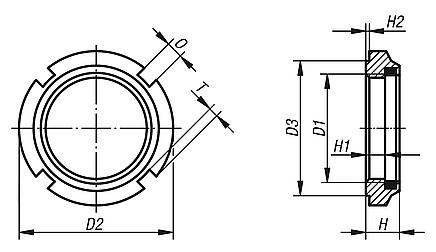

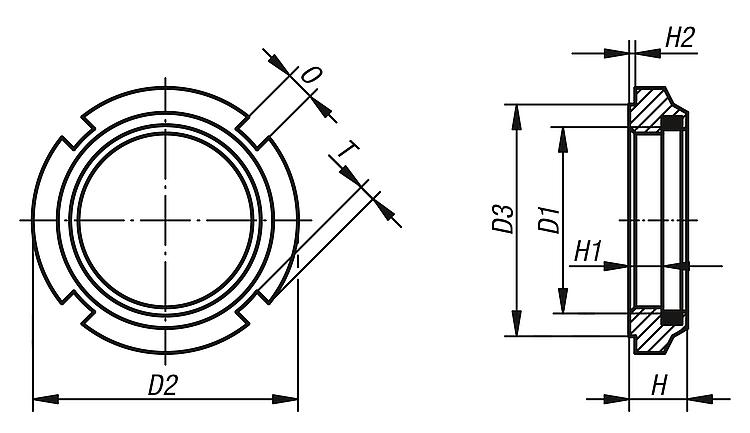

Drawings

Item selection/filter

	M10x1 M12x1,5 M14x1,5 M16x1,5 M18x1,5 M20x1,5 M22x1,5 M24x1,5 M28x1,5 M30x1,5 M32x1,5 M35x1,5 M38x1,5 M40x1,5 M42x1,5	18 21 24 28 32 38 44 50 53 56 62	15 18 21 24 27 33 38 44 47 50 55	7,6 9,2 10,7 9,6 12,7 11,2 11 12,2 12 15,2	0,5	4,4 5,7 6 7,3 7 6,2 6,9 6,5 6,6 10,6	1,5 2 2,5 3 3,5	3 4 5 6				Reset
Order No.	D1	D2	D3	H	H2	H1	T	O	CAD	Acc.	Price	Order
07595-10	M10x1	18	15	7,6	0,5	4,4	1,5	3			on request
