        Adjustment nuts

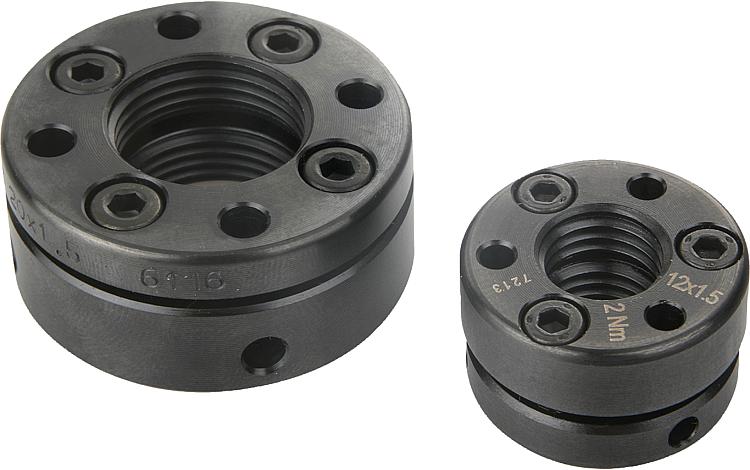

Item description/product images

DescriptionMaterial:Steel.
Clamping screws carbon steel.Version:Black oxidised.
Clamping screws ISO 4762, grade 12.9.Note:Two screw parts that are elastically connected are tightened against each other with screws.
The adjustment nut is constructed rotationally symmetric. There are no unbalancing keyways or slots.Note:The adjustment nut can be axially deformed and must be handled with care. The clamping screws may only be tightened when the adjustment nut is completely screwed onto the spindle thread, otherwise the adjustment nut could become defective through unacceptable plastic deformation.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07598 Adjustment nuts

247 kB

Technical information for adjustment nuts

105 kB

Grades

124 kB

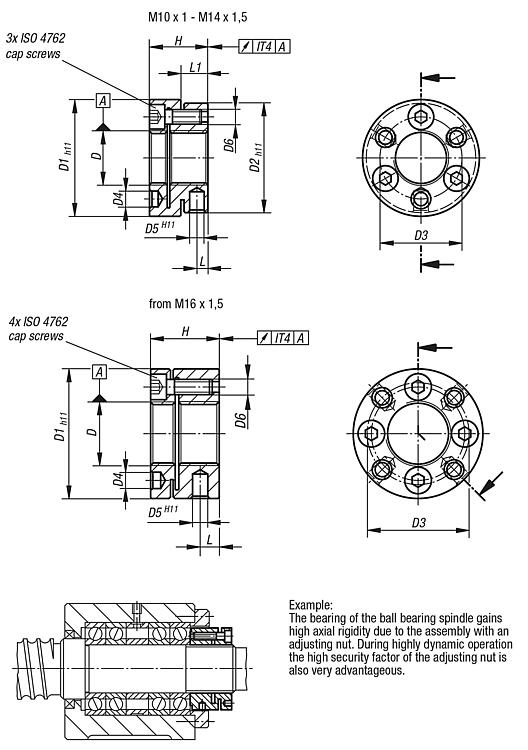

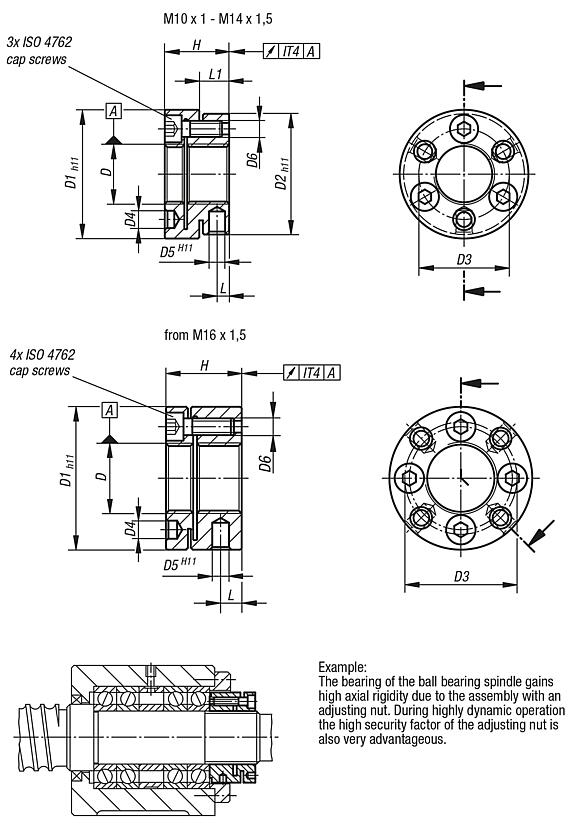

Drawings

Item selection/filter

	M10X1 M12X1,5 M14x1,5 M16x1,5 M18x1,5 M20X1,5 M22x1,5 M24x1,5 M26x1,5 M28x1,5 M30x1,5 M32x1,5 M35x1,5	24 26 32 34 36 40 42 45 46 48 50 53	22 25 30 -	17 19 22,5 24,5 26,5 30,5 32,5 36,5 38,5 40,5 42,5 45,5	3,2 4,3	2,5 3 4 5	M3 M4	15 16 18 20 22	3 5 6,5 7	6,5 7 -	2 2,9	15000 18000 22000 25000 28000 32000 35000 49000 53000 57000 64000 66000	12000 13000 17000 19000 18000 23000 25000 34000 36000 38000 44000 47000	27 40 96 147 183 283 270 323 479 504 588 743 914				Reset
Order No.	D	D1	D2	D3	D4	D5	D6	H	L	L1	Tightening torque of screws Nm	Max. static axial pressure stress N	Max. dynamic axial pressure stress N	Inertia (gcm²)	CAD	Acc.	Price	Order
07598-024101015	M10X1	24	22	17	3,2	2,5	M3	15	3	6,5	2	15000	12000	27			on request
07598-026121515	M12X1,5	26	25	19	3,2	3	M3	15	3	6,5	2	18000	13000	40			on request
07598-032141516	M14x1,5	32	30	22,5	4,3	4	M4	16	3	7	2,9	22000	17000	96			on request
07598-034161518	M16x1,5	34	-	24,5	4,3	4	M4	18	5	-	2,9	22000	17000	147			on request
07598-036181518	M18x1,5	36	-	26,5	4,3	4	M4	18	5	-	2,9	25000	19000	183			on request
07598-040201518	M20X1,5	40	-	30,5	4,3	4	M4	18	5	-	2,9	28000	18000	283			on request
07598-040221518	M22x1,5	40	-	30,5	4,3	4	M4	18	5	-	2,9	32000	23000	270			on request
07598-042241518	M24x1,5	42	-	32,5	4,3	4	M4	18	5	-	2,9	35000	25000	323			on request
07598-045261520	M26x1,5	45	-	36,5	4,3	5	M4	20	6,5	-	2,9	49000	34000	479			on request
07598-046281520	M28x1,5	46	-	38,5	4,3	5	M4	20	6,5	-	2,9	53000	36000	504			on request
07598-048301520	M30x1,5	48	-	40,5	4,3	5	M4	20	6,5	-	2,9	57000	38000	588			on request
07598-050321522	M32x1,5	50	-	42,5	4,3	5	M4	22	7	-	2,9	64000	44000	743			on request
07598-053351522	M35x1,5	53	-	45,5	4,3	5	M4	22	7	-	2,9	66000	47000	914			on request
