07620
Clevises with screw, steel or stainless steel
go back
Products
Product overview
Flexible standard component system
Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
Connecting elements
Clevises with screw, steel or stainless steel
Item description/product images
Description
Material:
Carbon steel 1.1191 or stainless steel 1.4305.
Version:
Carbon steel tempered and black oxidised.
Stainless steel bright.
Note:
Suitable hinge pin, see 04250.
Special features:
Download
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07620 Clevises with screw, steel or stainless steel
202 kB

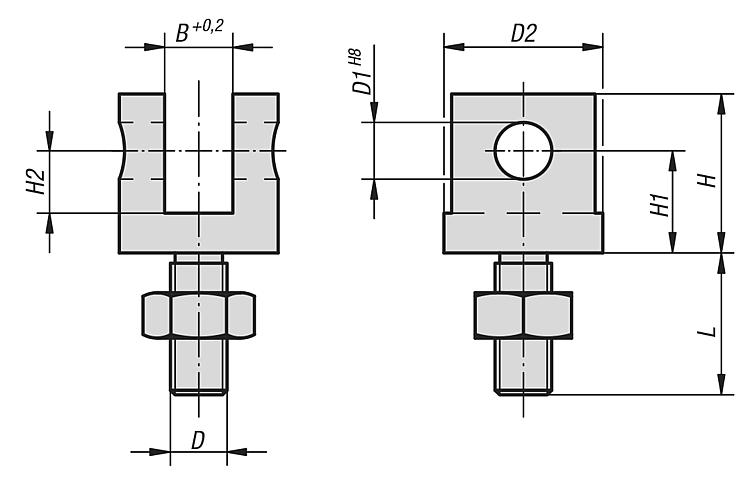

Drawings
Item selection/filter
Order No.
Main
material
D
D1
D2
B
H
H1
H2
L
CAD
Acc.
Price
Order
07620-05
QT steel
M5
5
12
6
16
10
7
14,5
on request
07620-06
QT steel
M6
6
16
7
19
12
8
15
on request
07620-08
QT steel
M8
8
20
9
23
15
10
20
on request
07620-10
QT steel
M10
10
28
12
28
18
11
25
on request
07620-12
QT steel
M12
12
30
14
34
21
13,5
30
on request
07620-14
QT steel
M14
14
36
16
37
23
15
35
on request
07620-16
QT steel
M16
16
40
17
42
26
17
40
on request
07620-20
QT steel
M20
18
50
22
52
32
21
50
on request
07620-105
stainless steel
M5
5
12
6
16
10
7
14,5
on request
07620-106
stainless steel
M6
6
16
7
19
12
8
15
on request
07620-108
stainless steel
M8
8
20
9
23
15
10
20
on request
07620-110
stainless steel
M10
10
28
12
28
18
11
25
on request
07620-112
stainless steel
M12
12
30
14
34
21
13,5
30
on request
07620-114
stainless steel
M14
14
36
16
37
23
15
35
on request
07620-116
stainless steel
M16
16
40
17
42
26
17
40
on request
07620-120
stainless steel
M20
18
50
22
52
32
21
50
on request
