Threaded rods steel and stainless steel DIN 976-1
 07640

Threaded rods steel and stainless steel DIN 976-1

 go back

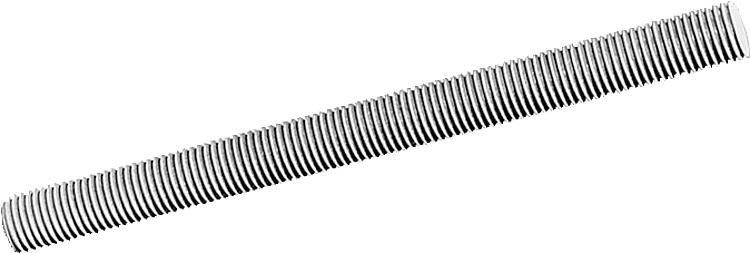

Item description/product images
DescriptionMaterial:Steel or stainless steel A2.Version:Grade 4.6, electro zinc-plated.
Grade 8.8 bright or electro zinc-plated.
Bright stainless steel.Note:Threaded rods are only available in 1000 mm lengths.
Threaded rods size M3 and M4 may be slightly bent when delivered.

The blank version may, for technical reasons have a grey to black surface.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07640 Threaded rods steel and stainless steel DIN 976-1 91,8 kB
Grades 124 kB
Overview of standards for fasteners 687 kB

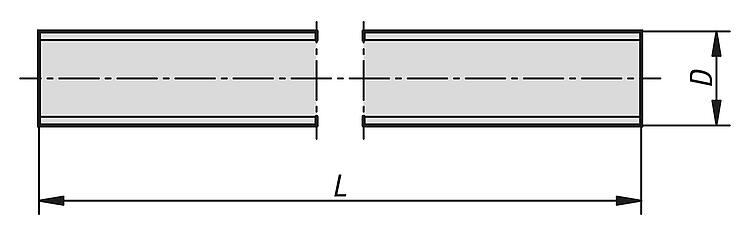

Drawings

Threaded rods steel and stainless steel DIN 976-1

Item selection/filter
Order No.Main
material		Surface finish
body		Version 1GradeDLCADAcc.PriceOrder
07640-031steelgalvanisedRH thread4.6M31000 on request
07640-041steelgalvanisedRH thread4.6M41000 on request
07640-051steelgalvanisedRH thread4.6M51000 on request
07640-061steelgalvanisedRH thread4.6M61000 on request
07640-081steelgalvanisedRH thread4.6M81000 on request
07640-101steelgalvanisedRH thread4.6M101000 on request
07640-121steelgalvanisedRH thread4.6M121000 on request
07640-161steelgalvanisedRH thread4.6M161000 on request
07640-201steelgalvanisedRH thread4.6M201000 on request
07640-241steelgalvanisedRH thread4.6M241000 on request
07640-301steelgalvanisedRH thread4.6M301000 on request
07640-361steelgalvanisedRH thread4.6M361000 on request
07640-1041steelgalvanisedLH thread4.6M41000 on request
07640-1051steelgalvanisedLH thread4.6M51000 on request
07640-1061steelgalvanisedLH thread4.6M61000 on request
07640-1081steelgalvanisedLH thread4.6M81000 on request
07640-1101steelgalvanisedLH thread4.6M101000 on request
07640-1121steelgalvanisedLH thread4.6M121000 on request
07640-1161steelgalvanisedLH thread4.6M161000 on request
07640-1201steelgalvanisedLH thread4.6M201000 on request
07640-1241steelgalvanisedLH thread4.6M241000 on request
07640-1301steelgalvanisedLH thread4.6M301000 on request
07640-05steelbrightRH thread8.8M51000 on request
07640-06steelbrightRH thread8.8M61000 on request
07640-08steelbrightRH thread8.8M81000 on request
07640-10steelbrightRH thread8.8M101000 on request
07640-12steelbrightRH thread8.8M121000 on request
07640-14steelbrightRH thread8.8M141000 on request
07640-16steelbrightRH thread8.8M161000 on request
07640-18steelbrightRH thread8.8M181000 on request
07640-20steelbrightRH thread8.8M201000 on request
07640-22steelbrightRH thread8.8M221000 on request
07640-24steelbrightRH thread8.8M241000 on request
07640-043steelgalvanisedRH thread8.8M41000 on request
07640-053steelgalvanisedRH thread8.8M51000 on request
07640-063steelgalvanisedRH thread8.8M61000 on request
07640-083steelgalvanisedRH thread8.8M81000 on request
07640-103steelgalvanisedRH thread8.8M101000 on request
07640-123steelgalvanisedRH thread8.8M121000 on request
07640-143steelgalvanisedRH thread8.8M141000 on request
07640-163steelgalvanisedRH thread8.8M161000 on request
07640-183steelgalvanisedRH thread8.8M181000 on request
07640-203steelgalvanisedRH thread8.8M201000 on request
07640-223steelgalvanisedRH thread8.8M221000 on request
07640-243steelgalvanisedRH thread8.8M241000 on request
07640-303steelgalvanisedRH thread8.8M301000 on request
07640-363steelgalvanisedRH thread8.8M361000 on request
07640-1063steelgalvanisedLH thread8.8M61000 on request
07640-1083steelgalvanisedLH thread8.8M81000 on request
07640-1103steelgalvanisedLH thread8.8M101000 on request
07640-1123steelgalvanisedLH thread8.8M121000 on request
07640-1163steelgalvanisedLH thread8.8M161000 on request
07640-1203steelgalvanisedLH thread8.8M201000 on request
07640-1243steelgalvanisedLH thread8.8M241000 on request
07640-1303steelgalvanisedLH thread8.8M301000 on request
07640-1363steelgalvanisedLH thread8.8M361000 on request
07640-052stainless steel A2brightRH thread70M51000 on request
07640-062stainless steel A2brightRH thread70M61000 on request
07640-082stainless steel A2brightRH thread70M81000 on request
07640-102stainless steel A2brightRH thread70M101000 on request
07640-122stainless steel A2brightRH thread70M121000 on request
07640-162stainless steel A2brightRH thread70M161000 on request
07640-182stainless steel A2brightRH thread70M181000 on request
07640-202stainless steel A2brightRH thread70M201000 on request
07640-222stainless steel A2brightRH thread70M221000 on request
07640-242stainless steel A2brightRH thread70M241000 on request
07640-1042stainless steel A2brightLH thread70M41000 on request
07640-1052stainless steel A2brightLH thread70M51000 on request
07640-1062stainless steel A2brightLH thread70M61000 on request
07640-1082stainless steel A2brightLH thread70M81000 on request
07640-1102stainless steel A2brightLH thread70M101000 on request
07640-1122stainless steel A2brightLH thread70M121000 on request
07640-1162stainless steel A2brightLH thread70M161000 on request
07640-1202stainless steel A2brightLH thread70M201000 on request
07640-1242stainless steel A2brightLH thread70M241000 on request
